Two-Level Four Post Parking Lift
Single Platform Hydraulic Parking Solution
The Two-Level Four Post Parking Lift is a practical and space-efficient parking system designed to increase parking capacity by stacking vehicles vertically using a single lifting platform.
Featuring a stable four-post structure and a reliable hydraulic lifting system, this lift allows one vehicle to be parked above another with secure support and smooth operation. Its simple configuration makes it an economical solution for projects requiring basic vertical parking functionality.
It is suitable for residential buildings, underground and above-ground garages, and small to medium-scale parking facilities where efficient use of space is required.
Main Features & Advantages
Stable Four-Post Structure
The four-post design provides excellent stability and balanced load distribution, ensuring safe and reliable vehicle parking during lifting and storage.
Reliable Hydraulic Lifting System
The hydraulic drive system delivers smooth, stable, and quiet lifting performance with minimal maintenance requirements.
Mechanical Safety Lock Protection
Equipped with mechanical safety locks, the platform is securely held at different parking levels, preventing accidental descent and ensuring safe vehicle storage.
Strong Load-Bearing Capacity
Designed to support standard passenger vehicles, the lift offers reliable load capacity suitable for daily parking applications.
Durable Surface Treatment
The steel structure is treated with powder coating for corrosion resistance, with optional galvanization available for outdoor installations.
Simple and User-Friendly Operation
Push-button control allows easy lifting and lowering, making daily operation simple and convenient.
Typical Applications
The Two-Level Four Post Parking Lift is commonly used in:
- Residential garages and private houses
- Apartment buildings and residential complexes
- Underground and above-ground parking garages
- Small commercial parking facilities
It is especially suitable for projects that require a cost-effective and easy-to-install vertical parking solution.
Safety Design Concept
Safety is an essential consideration in the design of the Two-Level Four Post Parking Lift.
The system incorporates mechanical safety locks, limit switches, and emergency stop functions to ensure controlled and secure operation throughout the lifting process.
The stable four-post structure provides reliable load support, ensuring vehicle safety during both lifting and parking.
Installation & Site Requirements
- Suitable for indoor installation
- Flat and reinforced concrete foundation required
- No pit required for standard installation
- Power supply configurable according to local electrical standards
Detailed installation drawings and technical support are provided before shipment to ensure smooth installation and reliable operation.
Why Choose Us
- Professional manufacturer of parking and lifting equipment
- Extensive experience in international export projects
- Stable product quality with strict quality control
- Flexible customization to meet different site requirements
- Reliable technical support before and after delivery
We are committed to providing practical, safe, and space-efficient parking solutions for a wide range of applications.
Looking for a Parking Solution for Your Project?
Share your site dimensions, vehicle type, and parking requirements with us. Our engineering team will provide:
- A customized two-level parking solution
- Detailed drawings and technical specifications
- A clear and competitive quotation
👉 Contact us today to learn more about our Two-Level Four Post Parking Lift.

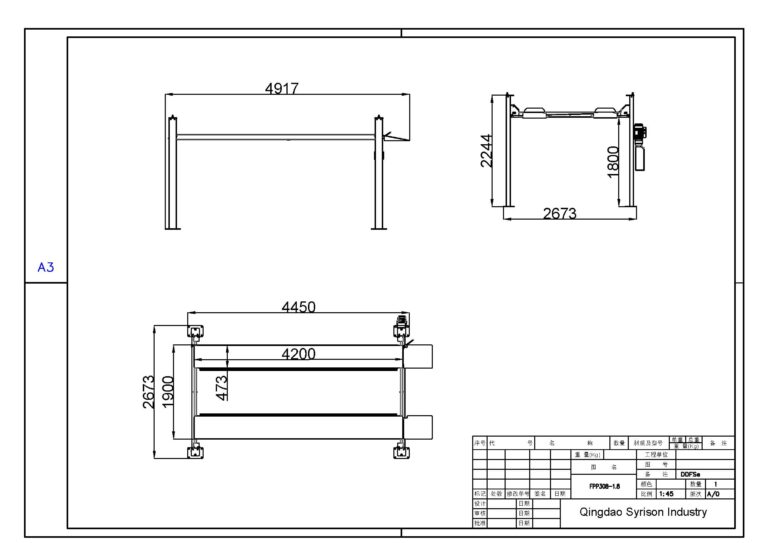

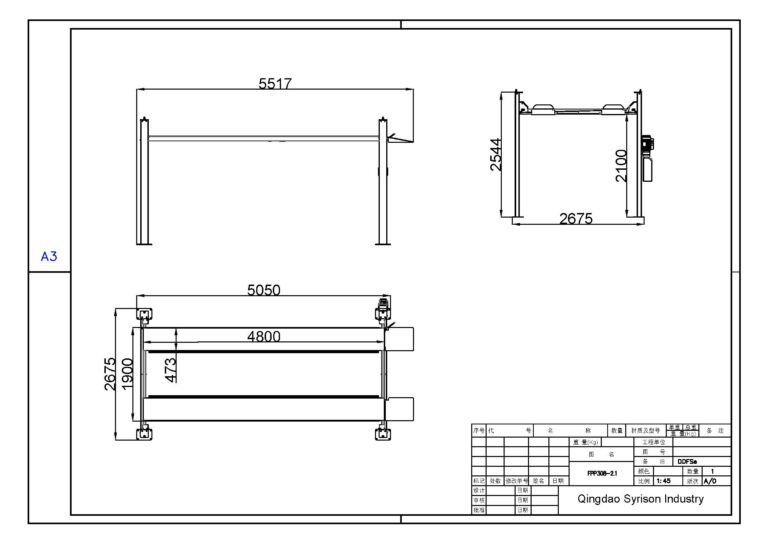

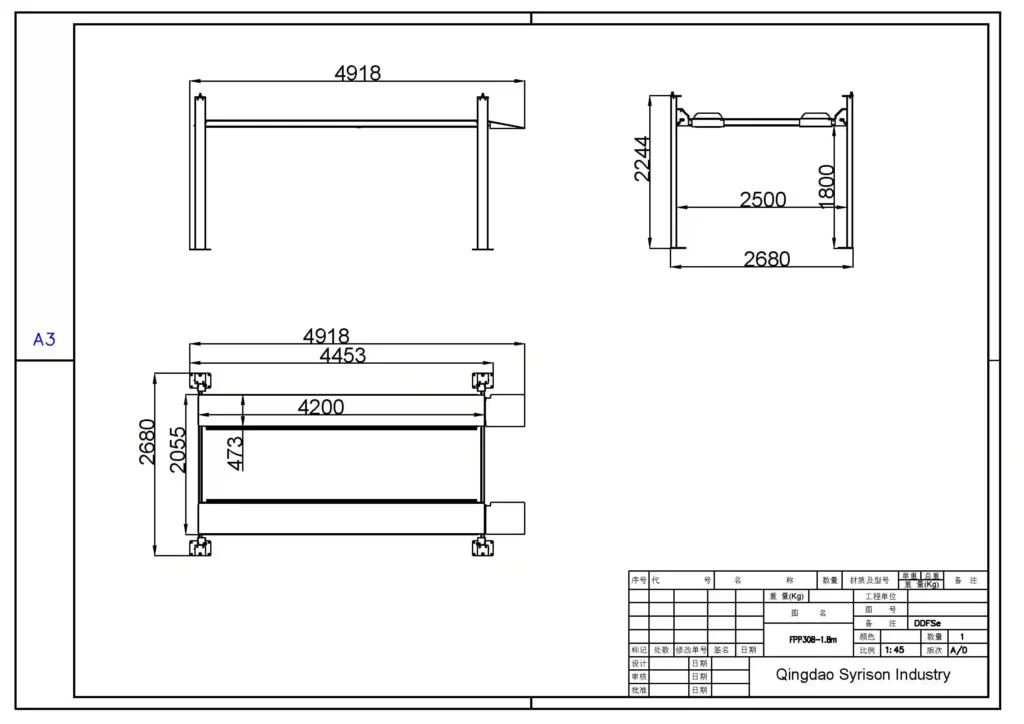

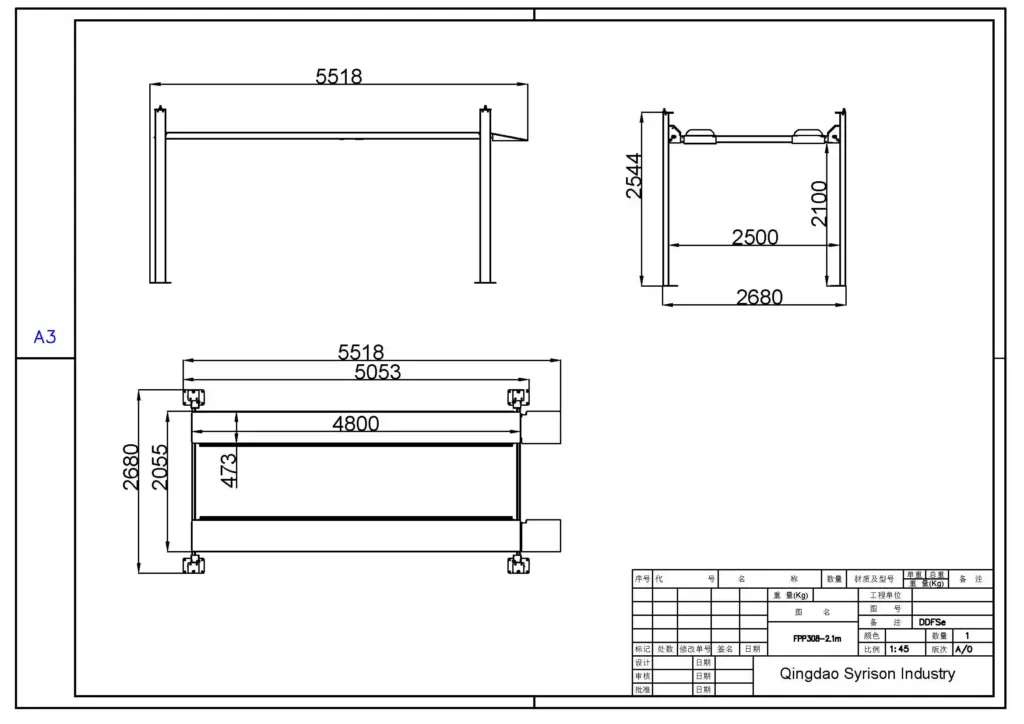

Size Drawing:
Data Sheet:
| Model | FPP308 | FPP309 |
|---|---|---|
| Lifting capacity | 3600kg | 4000kg |
| Lifting height | 1800mm/2000mm/2100mm | |
| Driving system | one cylinder&cables | |
| Unlocking system | Manual&Electrical unlocking system | |
| Lifting speed | 2m/min | |
| Control system | Manual control or Button on electrical box | |
| Package size | 4350*550*700mm*750kg | 4350*550*700mm*850kg |
| Power supply | 100-480V, 1/3P, 50/60Hz | |

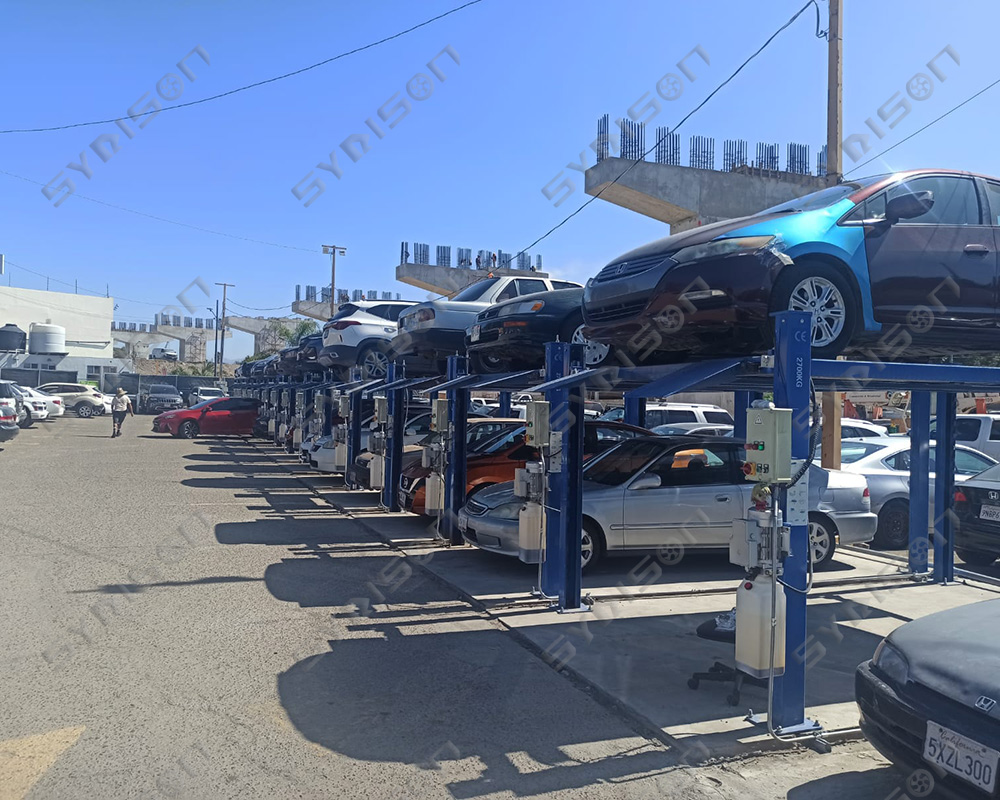

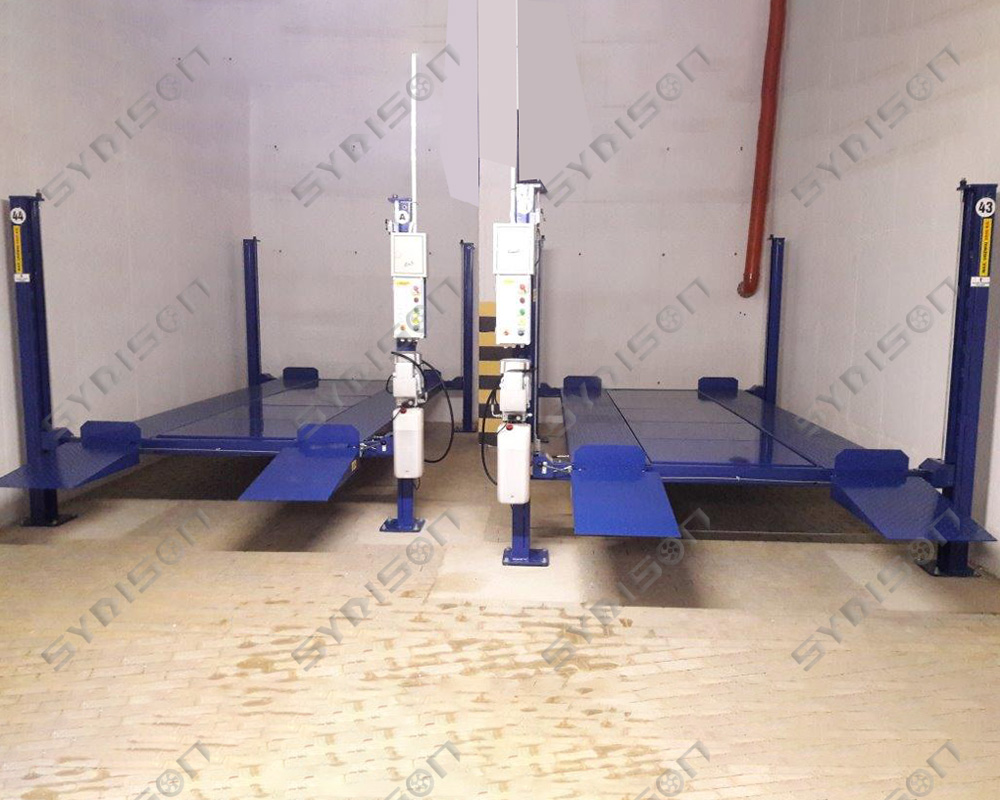

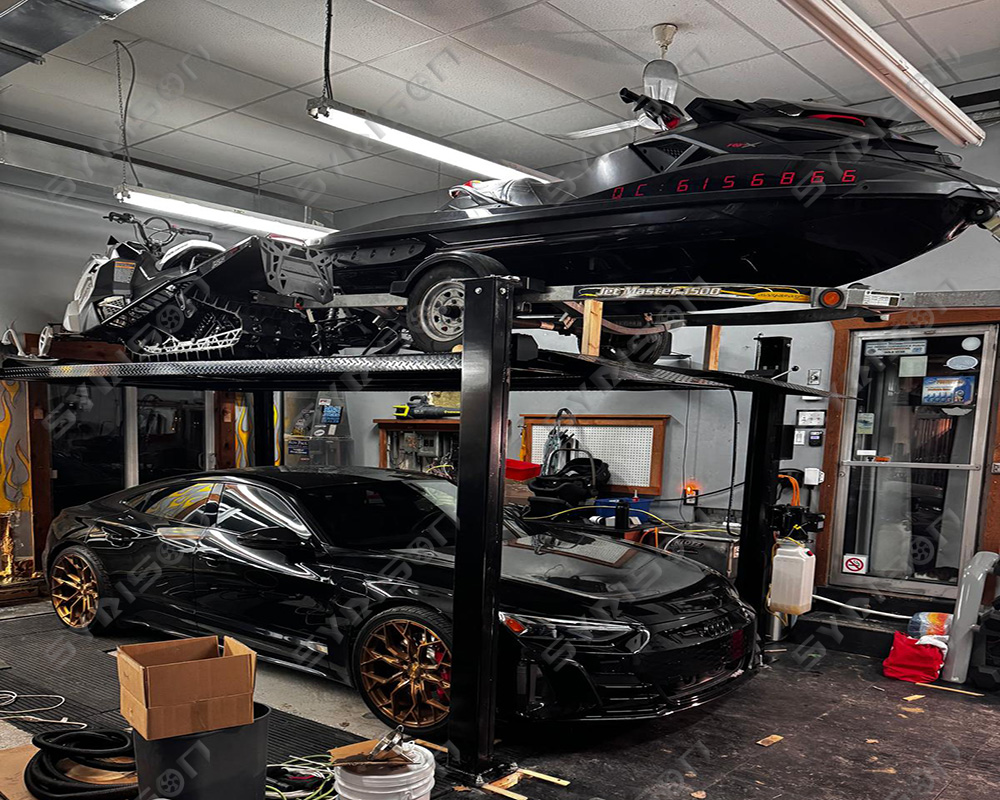

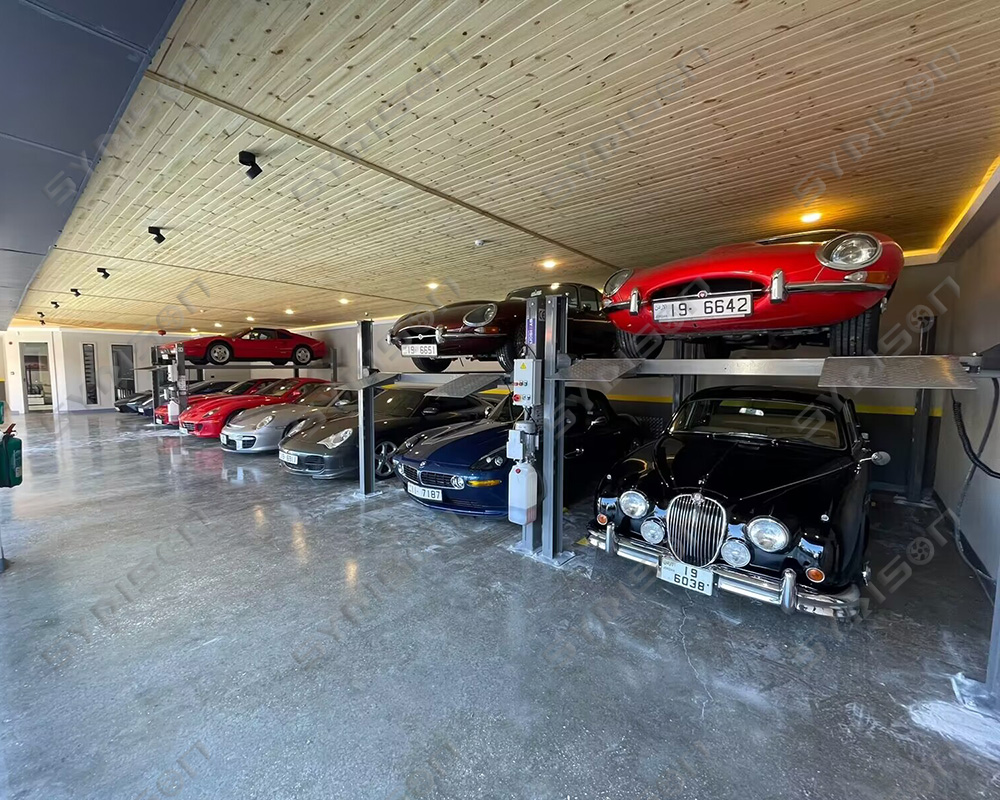

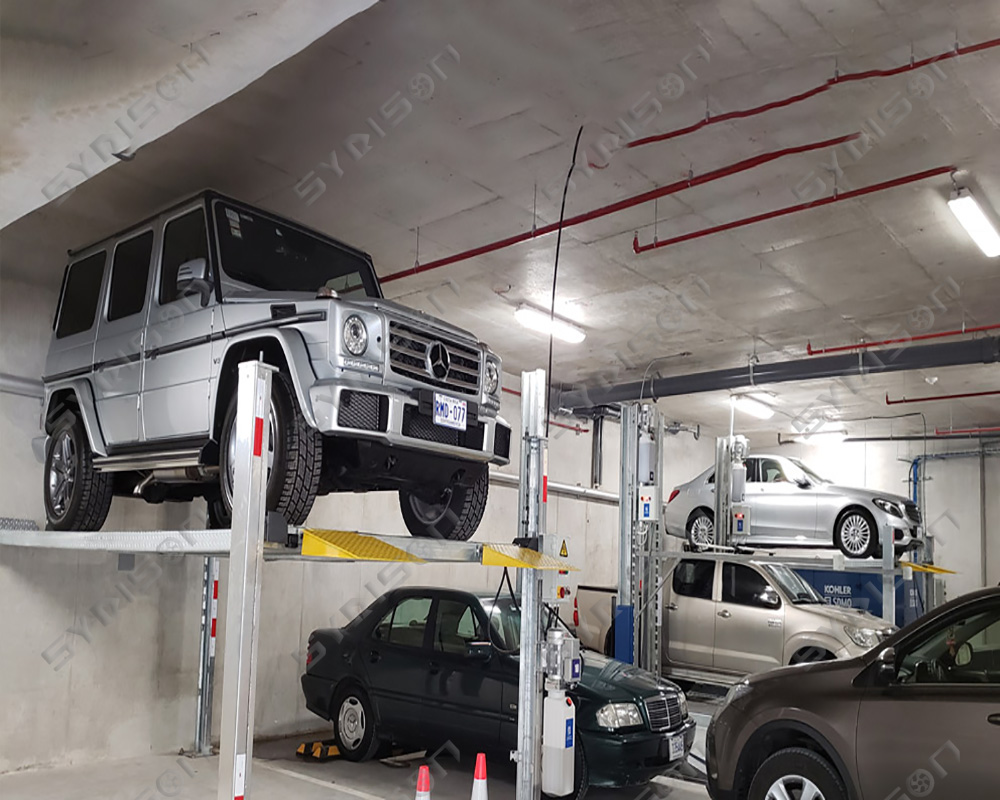

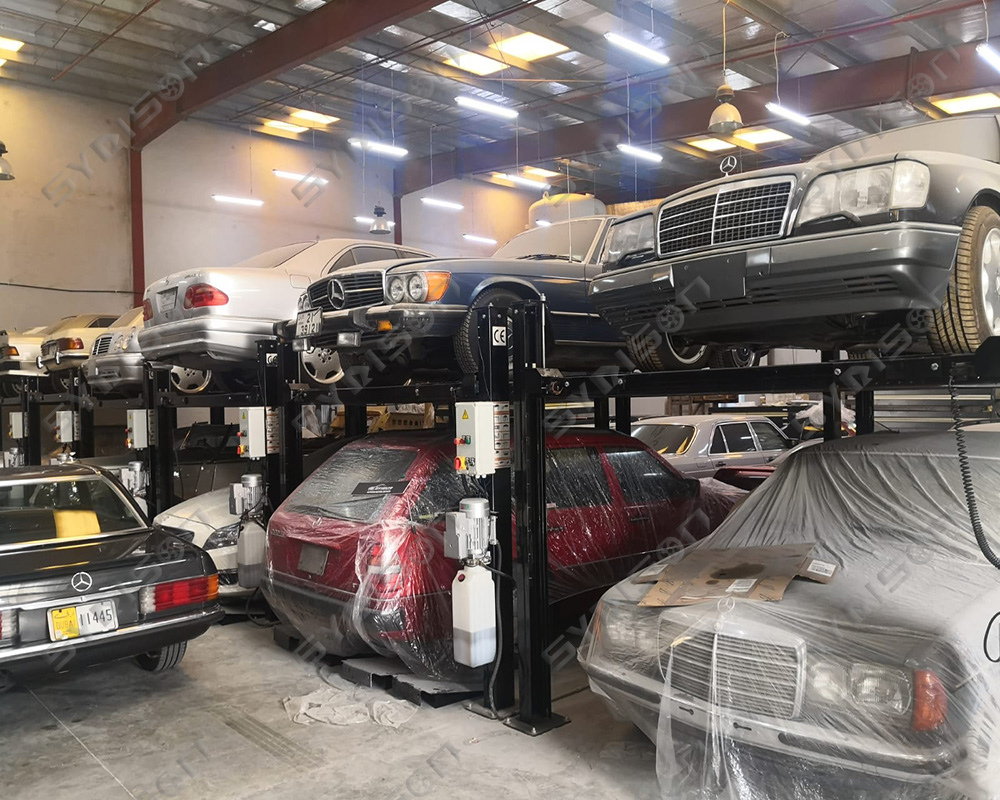

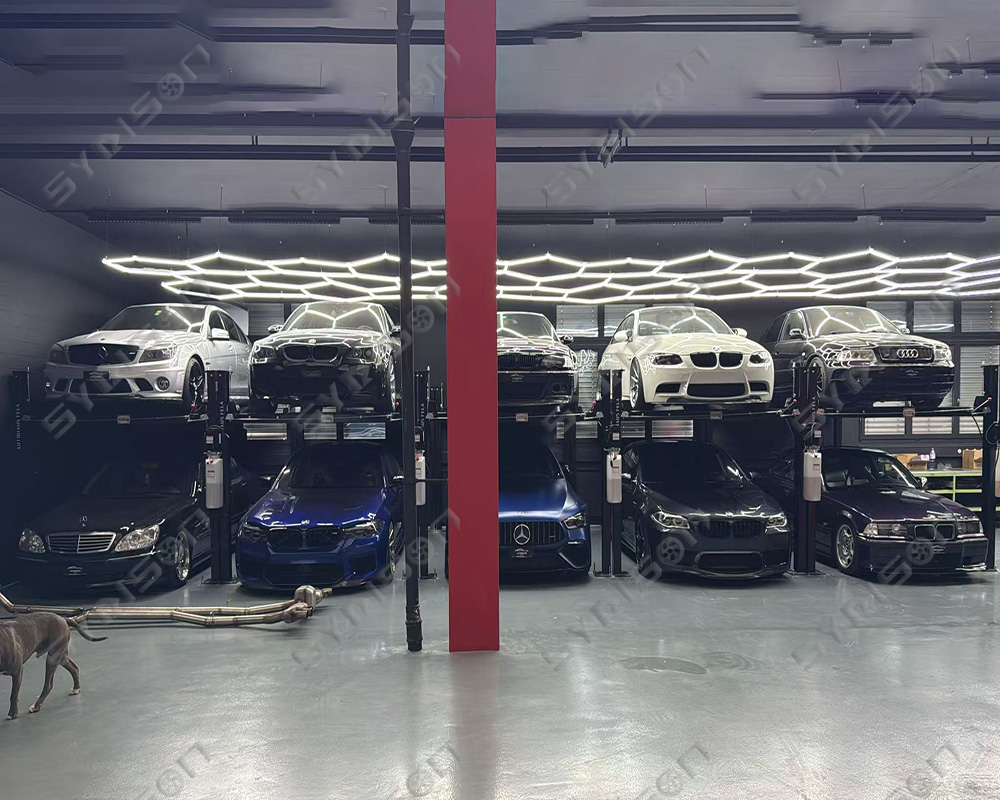

Projects:
Video:
🔹 Product Overview – Four Post Parking Lift (FPP Series)
The FPP Series Four Post Parking Lift is a highly reliable and versatile parking solution designed for customers who prioritize maximum stability, higher load capacity, and simple daily operation. As one of the most widely used parking lift structures, the four-post design provides balanced support for vehicles and is especially suitable for SUVs, large sedans, and long-term vehicle storage.
Unlike two-post parking lifts, the FPP Series features four independent columns connected by reinforced cross-beams, which distribute vehicle weight evenly across the entire structure. This design significantly enhances overall rigidity and reduces long-term structural stress, making the FPP lift an excellent choice for frequent use and heavier vehicles. Powered by a stable hydraulic lifting system, the platform rises and lowers smoothly with minimal vibration.
The FPP Series is widely chosen for projects that require high reliability, easy installation, and low maintenance. No pit is required, and the system can be installed on a properly prepared concrete floor, making it suitable for both new construction and retrofit parking projects. With multiple capacity and platform size options available, the FPP Four Post Parking Lift offers a practical and cost-effective solution for increasing parking capacity in a wide range of environments.
🔹 Typical Applications
The FPP Four Post Parking Lift is commonly used in the following scenarios:
Residential private garages and villas
Apartment and condominium parking areas
Commercial buildings and office parking facilities
Car dealerships and vehicle storage centers
Automotive workshops requiring vehicle storage or parking expansion
Thanks to its stable structure and high load tolerance, the FPP Series is particularly suitable for locations where SUVs and heavier vehicles are parked on a daily basis.
🔹 Safety Design & Structural Advantages
Safety and durability are core strengths of the FPP Series. The four-post structure naturally provides superior stability, while additional safety systems ensure secure operation at all times:
Mechanical anti-fall locking system to secure platforms at multiple heights
Heavy-duty steel columns and beams for long-term structural strength
Steel wave or diamond platforms for improved tire grip
Limit switches to prevent over-travel during lifting
Optional galvanized or powder-coated surface treatment for corrosion resistance
These features make the FPP Four Post Parking Lift suitable for both indoor and semi-outdoor environments with consistent daily use.
🔹 Proven in Global Parking Projects
The FPP Series has been installed in numerous parking and vehicle storage projects across Europe, the Middle East, South America, and Southeast Asia. Its simple structure, strong load capacity, and low maintenance requirements make it a preferred choice for customers seeking a long-term, worry-free parking solution.
🔹 Installation & Operation Notes
No pit required, reducing civil construction cost
Suitable for installation on reinforced concrete floors
Simple control operation for daily parking use
Custom platform lengths and widths available
Technical drawings and installation guidance provided
🔹 Frequently Asked Questions (FAQ)
Q1: What vehicles are suitable for the FPP Four Post Parking Lift?
The FPP Series is suitable for sedans, SUVs, and larger vehicles. Load capacity depends on the selected model and configuration.
Q2: How is a Four Post Parking Lift different from a Two Post Parking Lift?
A four-post lift offers greater structural stability and higher load tolerance, making it more suitable for heavier vehicles and long-term parking, while two-post lifts focus more on space efficiency.
Q3: Does the FPP lift require a pit?
No. The FPP Four Post Parking Lift does not require a pit and can be installed directly on a properly prepared concrete floor.
Q4: Is this lift suitable for frequent daily use?
Yes. The FPP Series is designed for frequent operation and has been proven in commercial and residential parking projects worldwide.
Q5: Can the lift be customized?
Yes. Platform size, lifting height, and surface treatment options can be customized to meet specific project requirements.
If this model doesn’t fully meet your needs, you can explore our full range of car parking lifts here and choose the most suitable solution for your project.
