Four Post Floor Lifting Platform
Heavy-Duty Vertical Vehicle Lifting Solution
The Four Post Floor Lifting Platform is a robust and reliable vertical lifting system designed for efficient and controlled vehicle transportation between different levels.
Featuring a heavy-duty four-post structure and a hydraulic lifting system with electric unlocking, this platform provides smooth lifting performance, stable operation, and enhanced safety. It is an ideal solution for applications requiring frequent vehicle movement between floors.
This lifting platform is widely used in multi-level garages, above-ground and underground parking facilities, and vehicle transfer areas where safe and reliable vertical transportation is required.
Main Features & Advantages
Electric Unlocking System
The electric unlocking system ensures safe and convenient operation with minimal manual intervention, allowing smooth locking and unlocking during lifting and lowering.
Heavy-Duty Four-Post Structure
The rigid four-post steel structure provides excellent stability, high load-bearing capacity, and long service life, making it suitable for continuous and heavy-duty operation.
Smooth Hydraulic Lifting
Equipped with a single-cylinder or multi-cylinder hydraulic system, the platform delivers stable, quiet, and synchronized lifting performance with minimal vibration.
High Load Capacity
Designed to handle heavy vehicle loads, the platform is suitable for a wide range of passenger vehicles and light commercial vehicles.
Reliable and Stable Operation
The four-post configuration ensures even load distribution and stable lifting, enhancing overall operational safety and durability.
Typical Applications
The Four Post Floor Lifting Platform is commonly used in:
- Multi-level parking garages
- Underground and above-ground parking facilities
- Vehicle transfer between different floors
- Commercial and residential parking projects
It is especially suitable for projects that require safe, controlled, and frequent vertical vehicle transportation.
Safety Design Concept
Safety is a core principle in the design of the Four Post Floor Lifting Platform.
The system is equipped with mechanical safety locks, limit switches, and emergency stop devices to ensure precise control and secure operation throughout the lifting process.
The stable four-post structure, combined with synchronized hydraulic lifting, provides reliable load support and enhanced protection for both vehicles and operators.
Installation & Site Requirements
- Suitable for indoor installation
- Reinforced and level concrete foundation required
- Adequate pit or floor opening prepared according to design drawings
- Power supply configurable to meet local electrical standards
Detailed installation drawings and technical support are provided prior to shipment to ensure smooth installation and long-term reliable operation.
Why Choose Us
- Professional manufacturer of vehicle lifting and parking equipment
- Extensive experience in international projects and exports
- Reliable product quality with strict quality control
- Technical support and engineering assistance throughout the project
We focus on delivering stable, safe, and efficient lifting solutions tailored to your specific application requirements.
Looking for a Vertical Lifting Solution for Your Project?
Provide your project details, including vehicle type, load capacity, lifting height, and site conditions. Our engineering team will offer:
- A customized four-post lifting solution
- Detailed technical drawings and specifications
- A clear and competitive quotation
👉 Contact us today to learn more about our Four Post Floor Lifting Platform.

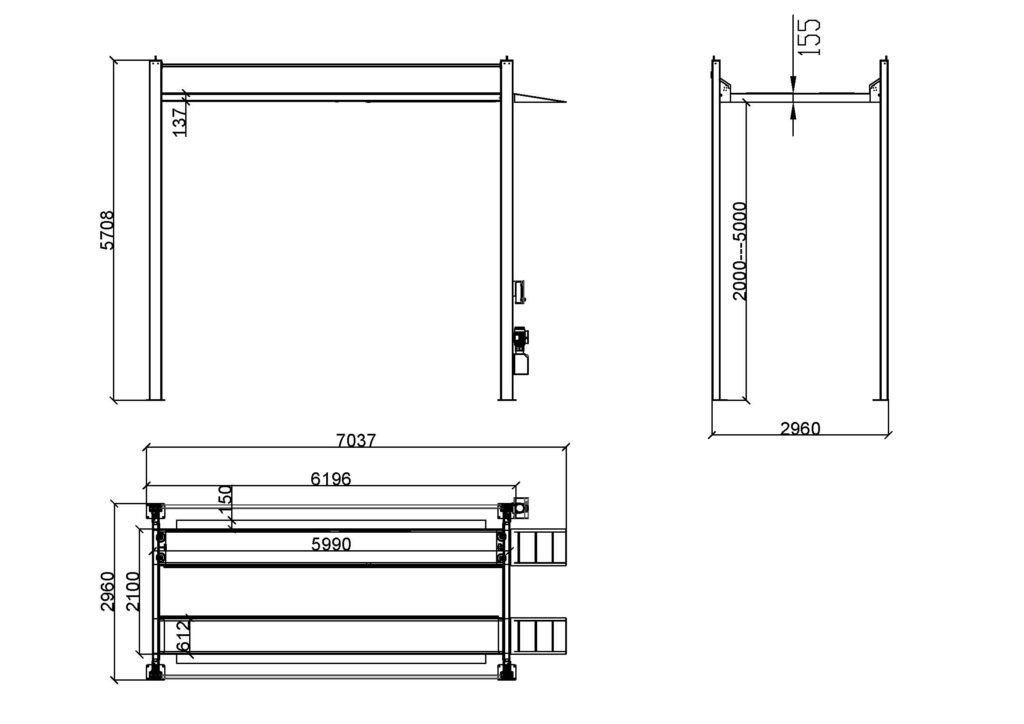

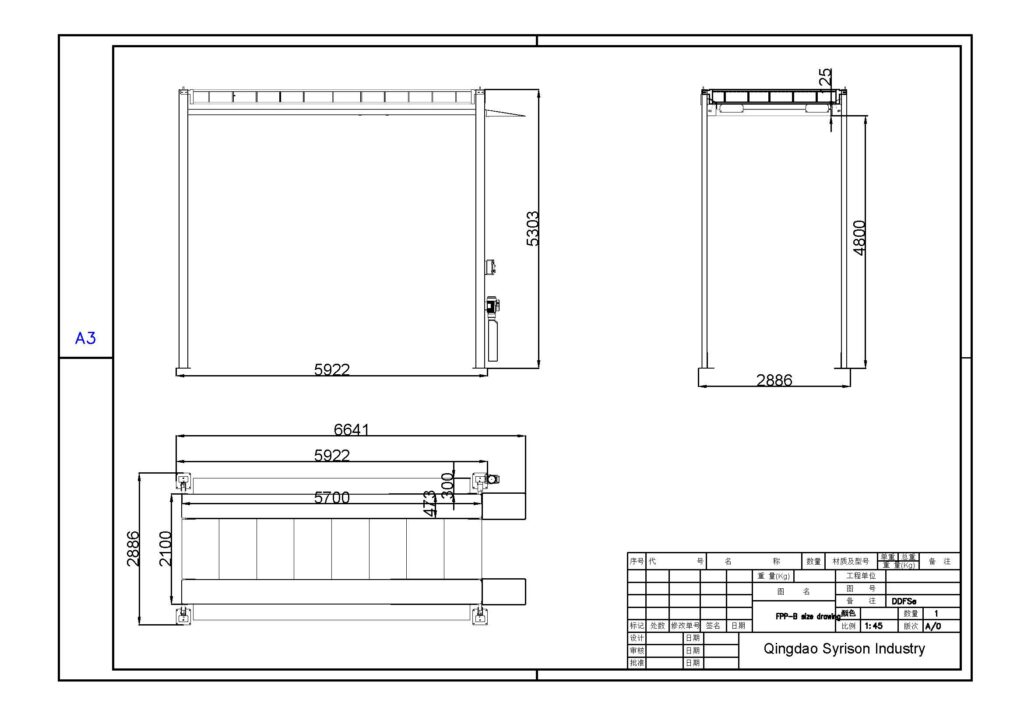

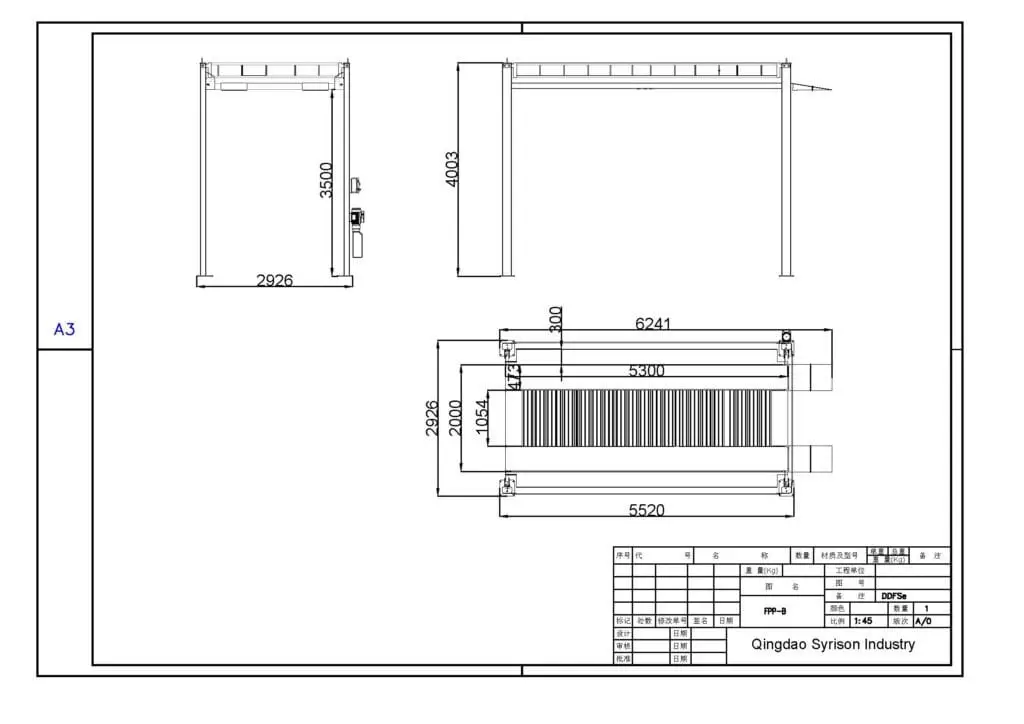

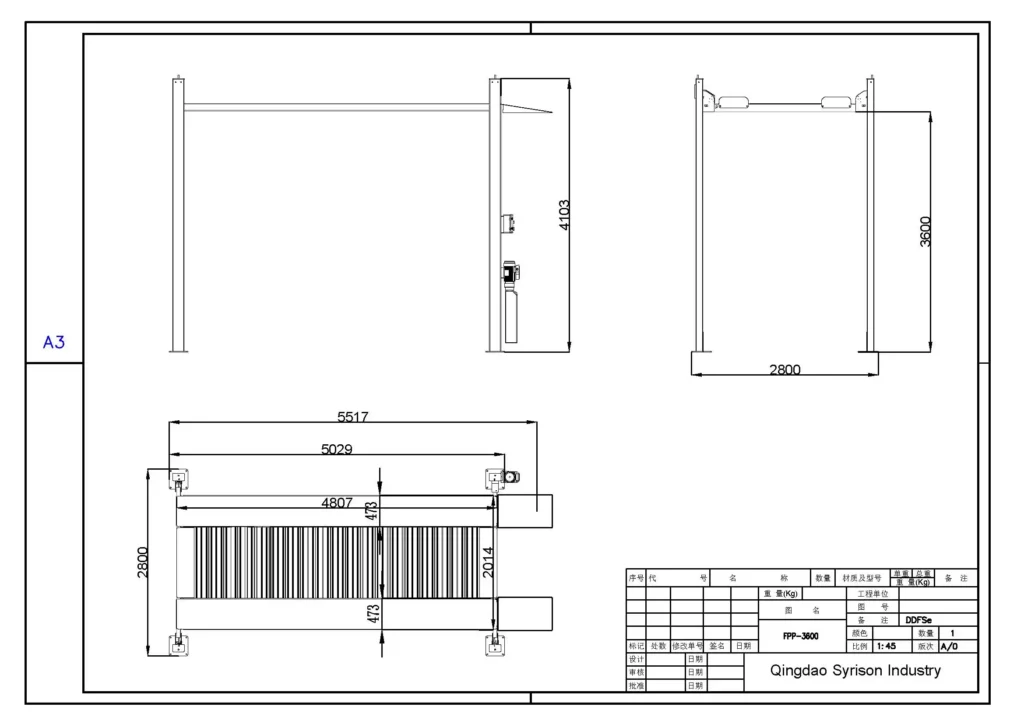

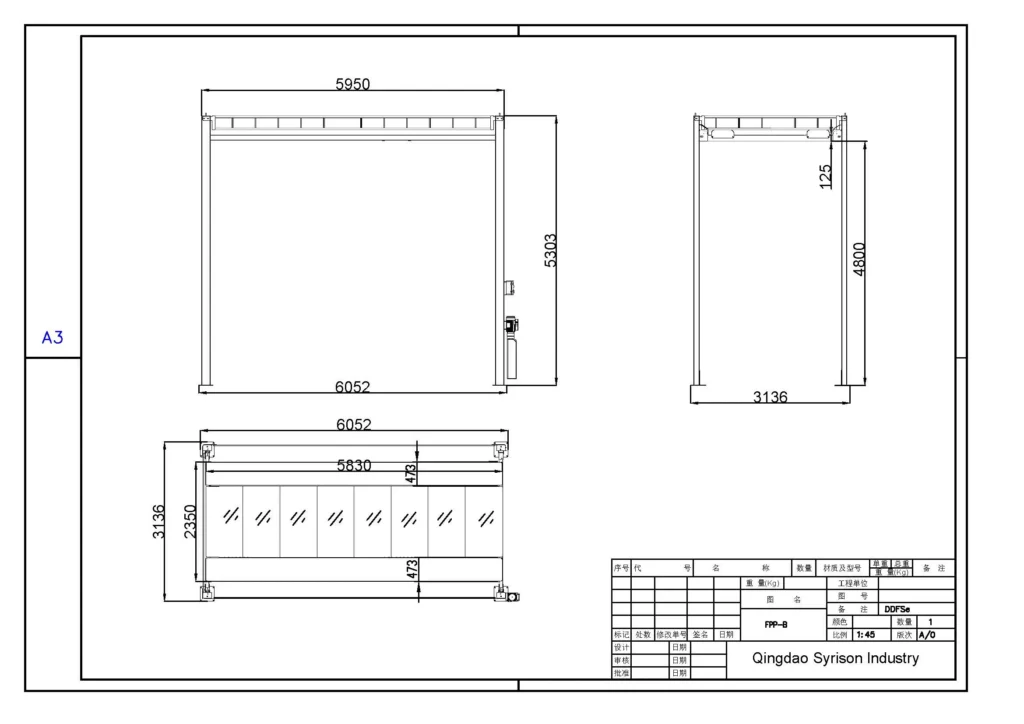

Size Drawing：
Data Sheet:
| Model | FPP |
| Lifting capacity | 2000kg – 6000kg |
| Platform length | 2000mm – 6500mm |
| Platform width | 2000mm – 5000mm |
| Lifting height | 2000mm – 5500mm |
| Power pack | 2.2KW-5.5kW hydraulic pump |
| Available voltage of power supply | 200V–480V, 3 Phase, 50/60Hz |
| Operation mode | Button |
| Operation voltage | 24V |
| Rising / descending speed | 2.2-2.4m/min |
| Finishing | Powder coating OR Hot Galvanized |

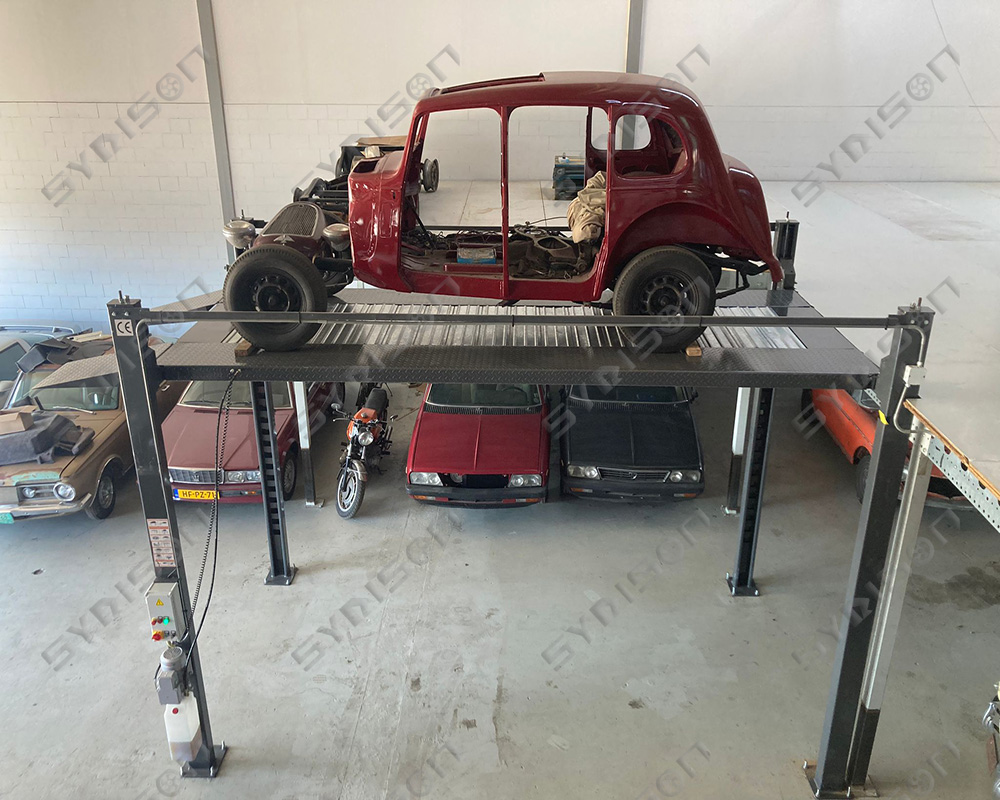

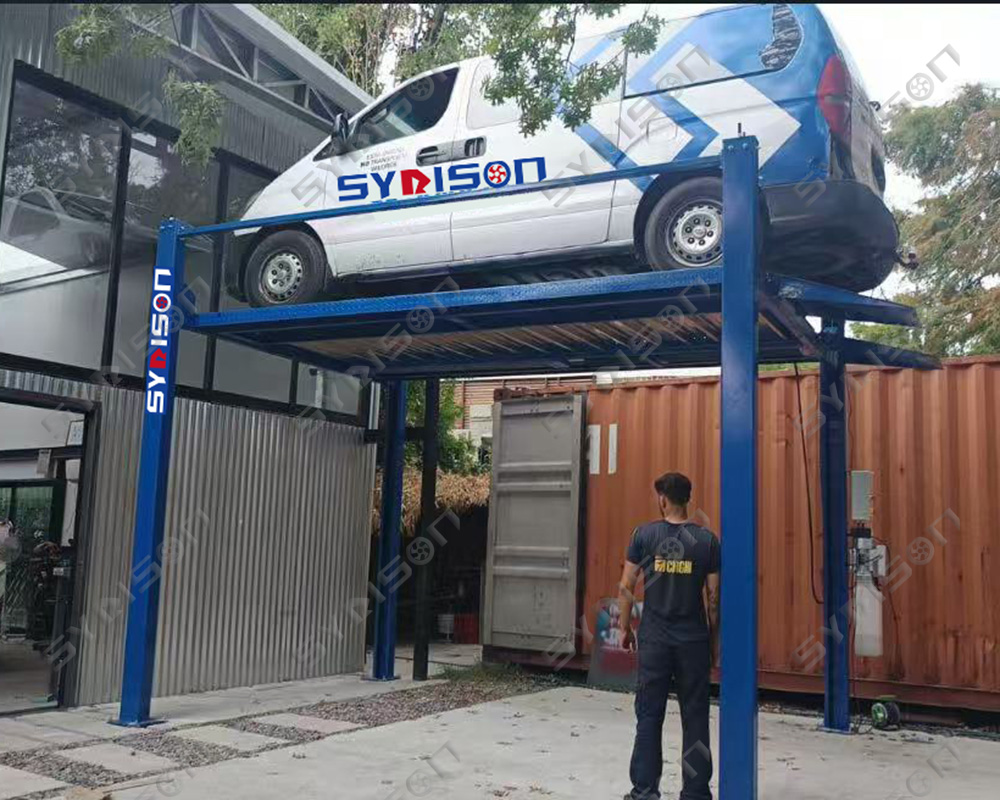

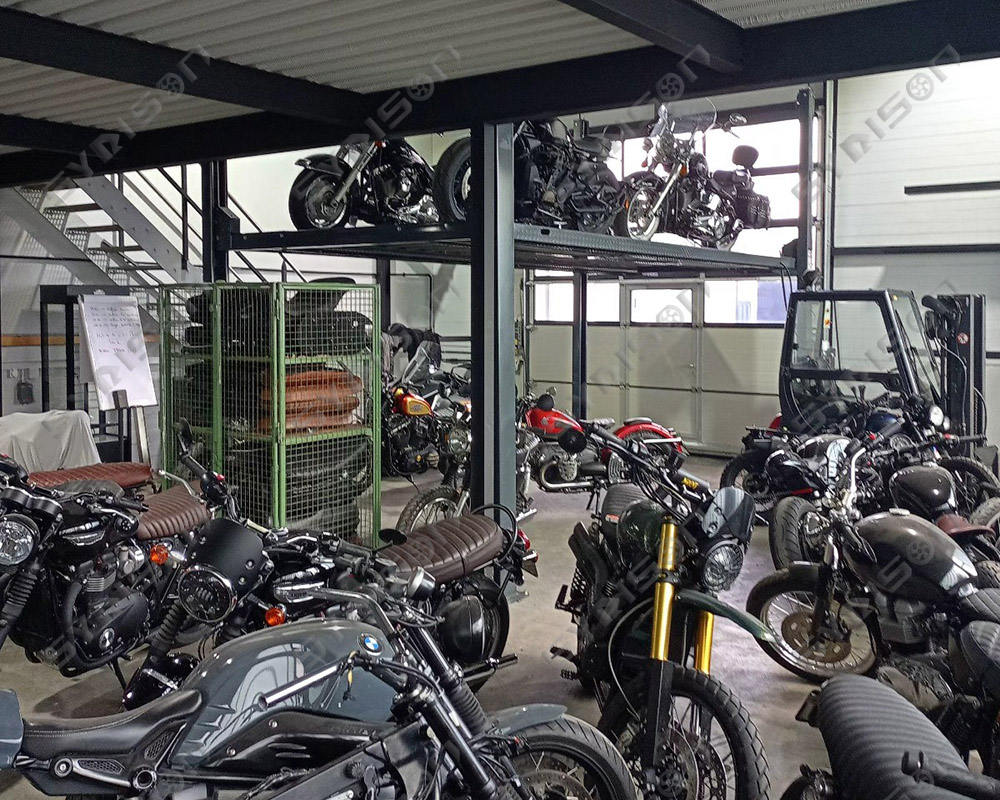

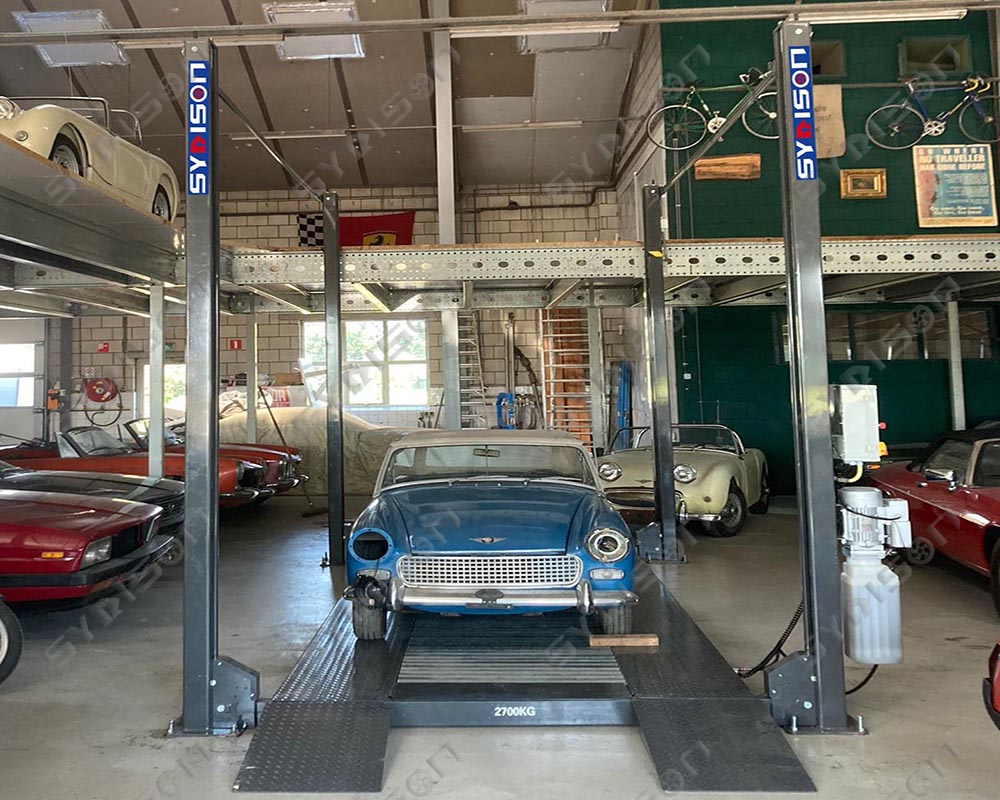

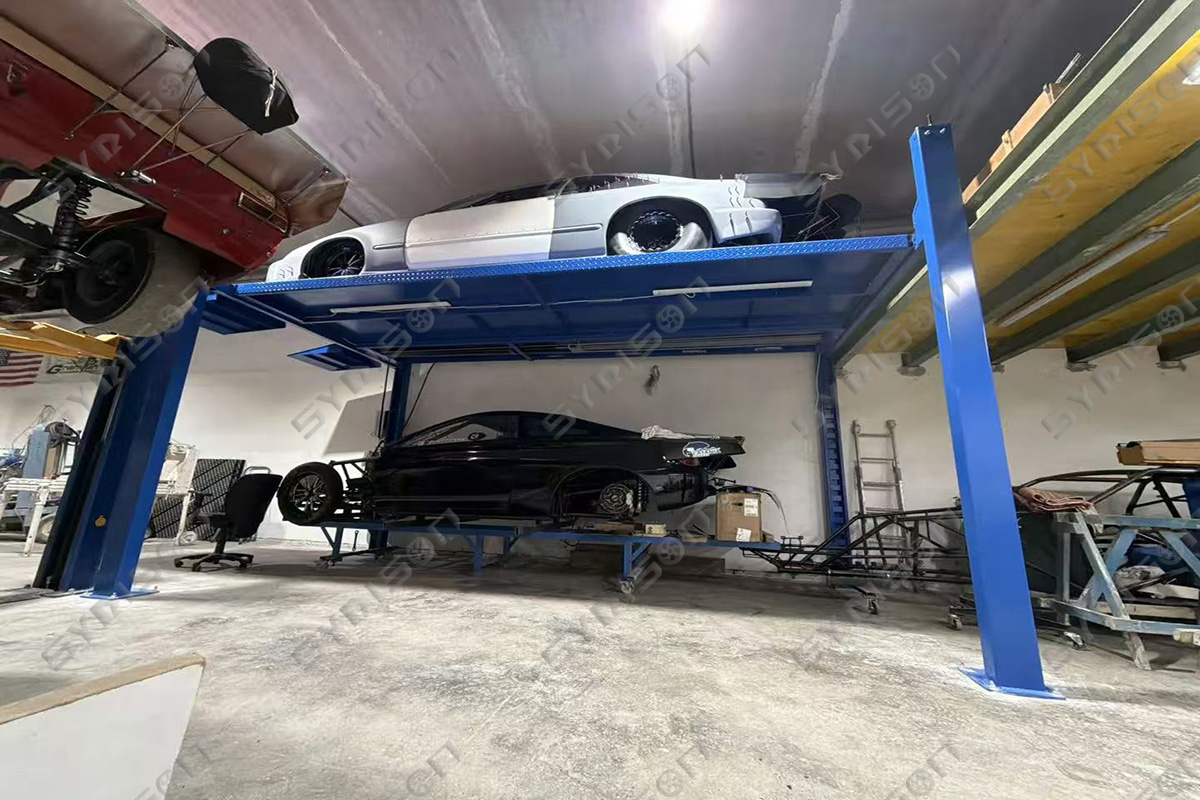

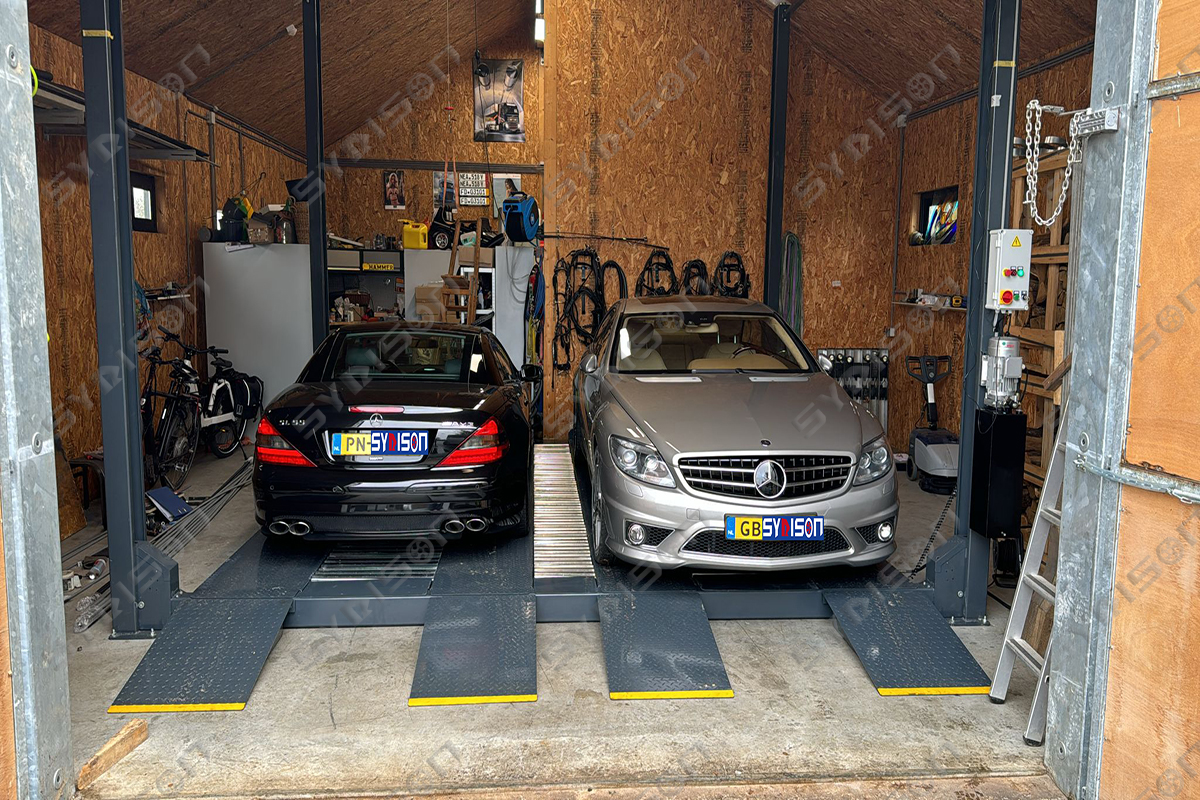

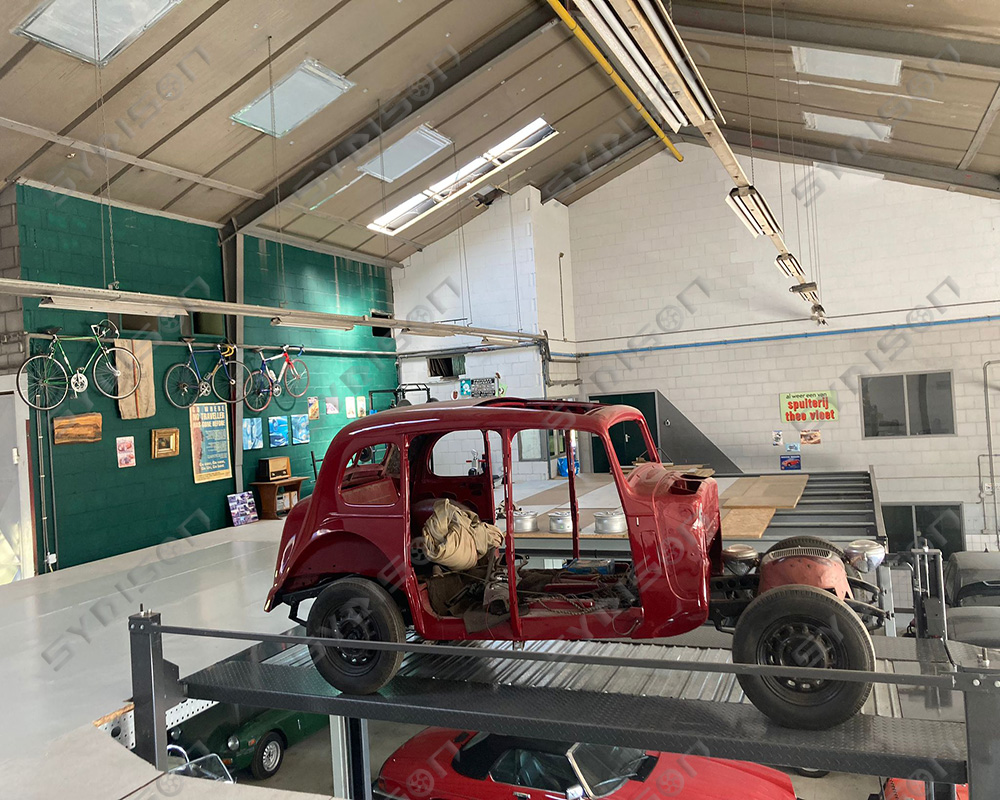

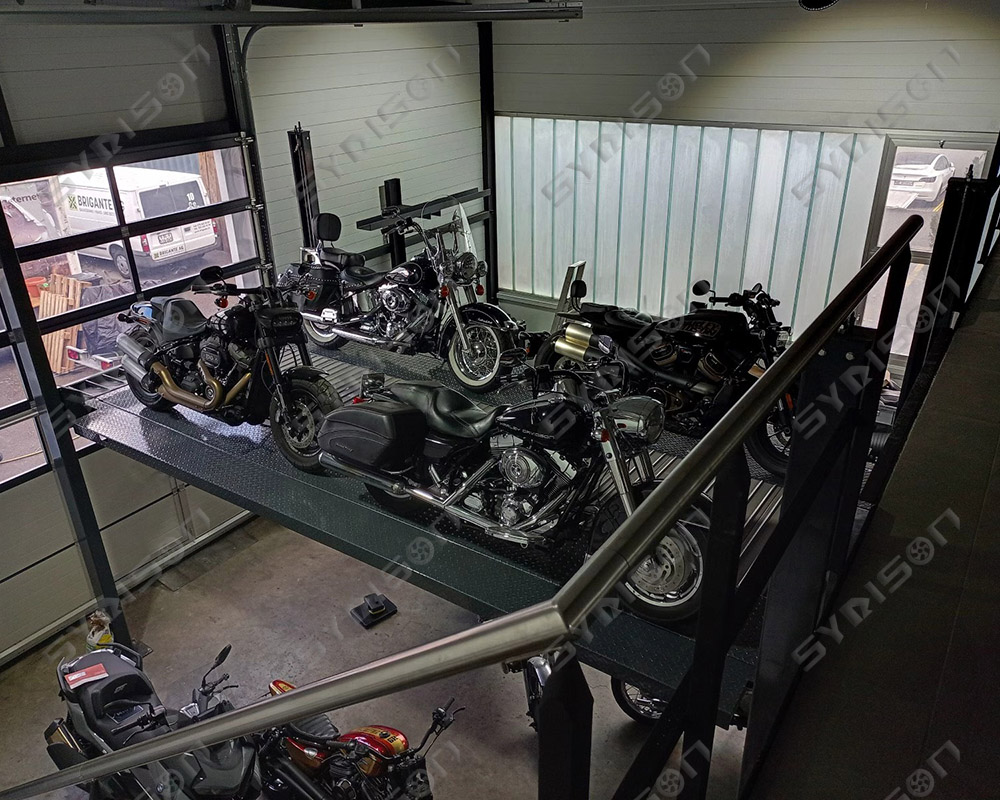

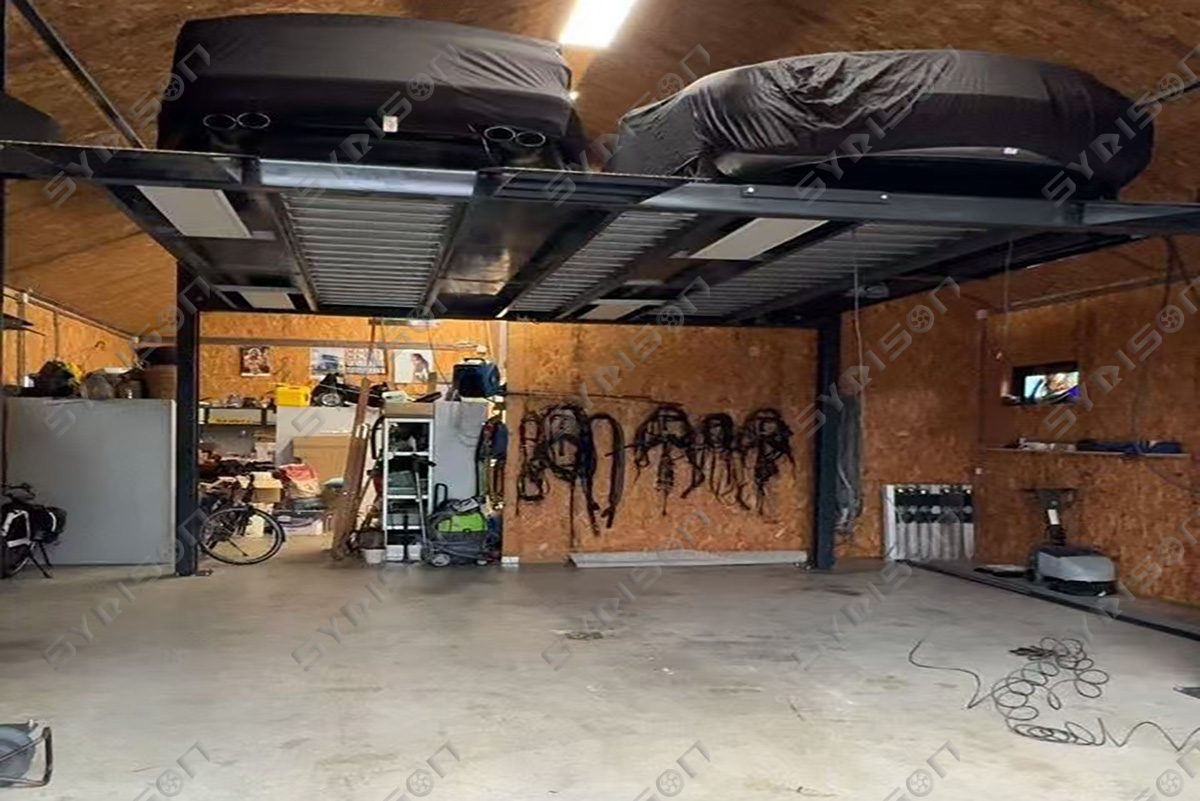

Projects：
Video：
🔹 Product Overview – FPP‑B Customizable Four Post Parking Lift
The FPP‑B Series Customizable Four Post Parking Lift is a highly flexible and heavy‑duty parking solution designed for larger vehicles, non‑standard parking spaces, and special project requirements. As a variant of the classic four post parking lift, the FPP‑B model allows both size and load capacity to be fully customized according to site conditions, vehicle types, and project specifications, making it ideal for commercial, residential, and industrial parking applications.
Built with a robust four‑post steel frame and hydraulic lifting system, the FPP‑B offers stable and smooth elevation for vehicles while maximizing usable parking space. The customizable design means it can accommodate wider platforms, higher lifting heights, and heavier vehicle loads beyond standard configurations, delivering tailored performance for your unique parking needs. Whether you need a parking lift for large SUVs, commercial vans, or special‑use fleets, the FPP‑B Series ensures reliable performance and long‑lasting durability.
🔹 Typical Applications
The customizable nature of the FPP‑B Series makes it suitable for a wide range of parking scenarios:
Residential garages with non‑standard dimensions
Apartment and condominium underground parking
Commercial and office building parking lots
Valet and attendant‑managed parking facilities
Dealerships and automotive storage centers
Fleet and logistics vehicle storage areas
Its flexibility means the lift can be tailored to site height restrictions, ceiling limitations, and vehicle size variations, providing a highly efficient parking solution for complex environments.
🔹 Safety Design & Structural Advantages
Safety and durability are core strengths of the FPP‑B customized parking lift:
Reinforced four‑post steel construction for high load stability
Hydraulic lifting system for smooth, controlled platform elevation
Mechanical anti‑fall locks at multiple stop positions
Limit switches and emergency stop mechanisms for operational safety
Customized platform width and height to suit your vehicle size and site constraints
Corrosion‑resistant surface treatment (optional powder coating or galvanizing)
These features ensure that, even with customized dimensions and capacities, the lift delivers secure daily operation and long‑term reliability.
🔹 Installation & Operation Notes
Designed for installation on reinforced concrete floors with minimal pit requirements
Custom baseplates, platform sizes, and lifting heights available
User‑friendly control panel or key switch operation
Adjustable safety devices based on optimized customized specs
Full technical documentation and installation guidance provided
Customizing the lift configuration during the early design phase ensures seamless integration with existing structures and long‑term operational safety.
❓ Frequently Asked Questions (FAQ)
Q1: What does “customizable size & weight” mean for FPP‑B?
It means the platform dimensions, column spacing, lifting height, and load capacity can be tailored to your site’s requirements, allowing support for non‑standard vehicles or parking geometries.
Q2: What types of vehicles can the FPP‑B lift support?
Depending on the customized specification, it can support a broad range of vehicles, including sedans, SUVs, commercial vans, and larger cars, with load capacities beyond standard models.
Q3: Does this lift require a pit or complex installation?
No. The FPP‑B is designed for ground installation on reinforced concrete, typically without deep pits, but exact installation requirements depend on the customized design.
Q4: How is the operation controlled?
The lift can be operated via a simple button control panel, key switch, or optional remote control based on customization.
Q5: Can the lift be adapted for outdoor or semi‑outdoor use?
Yes. With appropriate corrosion‑resistant surface treatment (e.g., galvanized or powder coating), the FPP‑B can be used in outdoor or semi‑covered parking areas.
If this model doesn’t fully meet your needs, you can explore our full range of car platform lift here and choose the most suitable solution for your project.
