Three-Level Four Post Parking Lift
Triple Stacker Parking System for Space Optimization
The Three-Level Four Post Parking Lift is a practical and space-efficient parking solution designed to accommodate up to three vehicles within a compact vertical structure.
By stacking vehicles vertically using a stable four-post design, this system significantly increases parking capacity while maintaining reliable operation and high safety standards. It is an ideal solution for projects where available space is limited and efficient parking utilization is required.
This parking lift is suitable for residential buildings, commercial garages, and parking facilities that require increased capacity without expanding the building footprint.
Main Features & Advantages
Three-Level Vertical Parking Design
Allows three vehicles to be parked vertically within one footprint, greatly improving parking capacity and land utilization.
Strong Four-Post Steel Structure
Manufactured from high-strength steel, the four-post structure ensures excellent stability, balanced load distribution, and long-term durability.
Mechanical Safety Lock System
Equipped with mechanical safety locks that automatically engage at different parking heights, ensuring stable platform positioning and preventing accidental descent.
Smooth Hydraulic Lifting System
The hydraulic lifting system provides smooth, quiet, and reliable vertical movement with minimal maintenance requirements.
Customizable Platform Size and Load Capacity
Platform dimensions, lifting height, and load capacity can be customized to accommodate different vehicle sizes and project requirements.
Durable Surface Treatment
Powder-coated steel structure offers effective corrosion protection, with optional galvanization available for outdoor installations.
Typical Applications
The Three-Level Four Post Parking Lift is commonly used in:
- Residential buildings and private houses
- Commercial parking garages
- Office buildings and mixed-use developments
- Long-term vehicle storage facilities
It is especially suitable for projects that require increased parking capacity within limited space.
Safety Design Concept
Safety is a core consideration in the design of the Three-Level Four Post Parking Lift.
The system incorporates mechanical safety locks, limit switches, and emergency stop devices to ensure controlled and secure operation throughout the lifting process.
The rigid four-post structure provides stable load support for each parking level, ensuring reliable protection for vehicles and operators.
Installation & Site Requirements
- Suitable for indoor installation
- Reinforced and level concrete foundation required
- Adequate ceiling height to accommodate three parking levels
- Power supply configurable according to local electrical standards
Detailed installation drawings and technical guidance are provided prior to shipment to ensure smooth installation and long-term reliable operation.
Why Choose Us
- Professional manufacturer of mechanical parking systems
- Extensive experience in international parking projects and exports
- Flexible customization to meet diverse site requirements
- Strict quality control and reliable product performance
- Comprehensive technical support before and after delivery
We are dedicated to providing safe, practical, and space-efficient parking solutions for a wide range of applications.
Looking for a High-Capacity Parking Solution?
Share your site dimensions, ceiling height, and vehicle requirements with us. Our engineering team will provide:
- A customized three-level parking solution
- Detailed drawings and technical specifications
- A clear and competitive quotation
👉 Contact us today to learn more about our Three-Level Four Post Parking Lift.

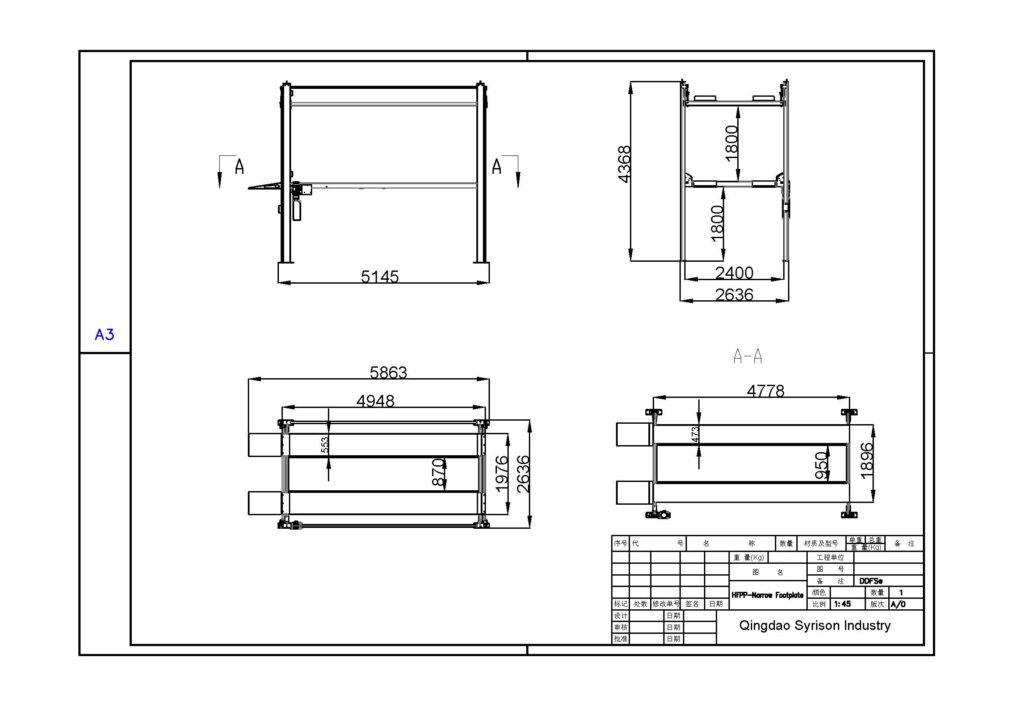

Size Drawing:
Data Sheet:
| Model | HFPP |
|---|---|
| Lifting capacity | 2500kg middle level/2300kg top level |
| Lifting height | 1800mm |
| Driving system | one cylinder&cables |
| Unlock release | electrical unlocking system |
| Lifting speed | 2m/min |
| Control system | Button on small control box |
| Package size | 5150*650*1150mm*1800kg |
| Power supply | 100-480V, 1/3P, 50/60Hz |

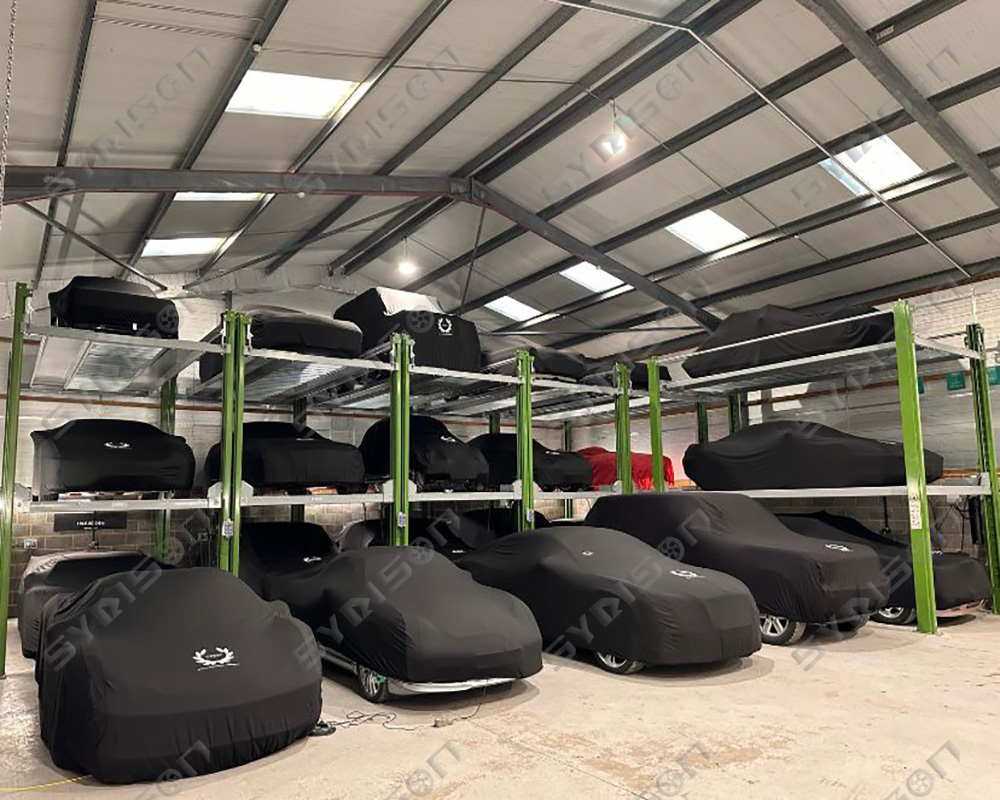

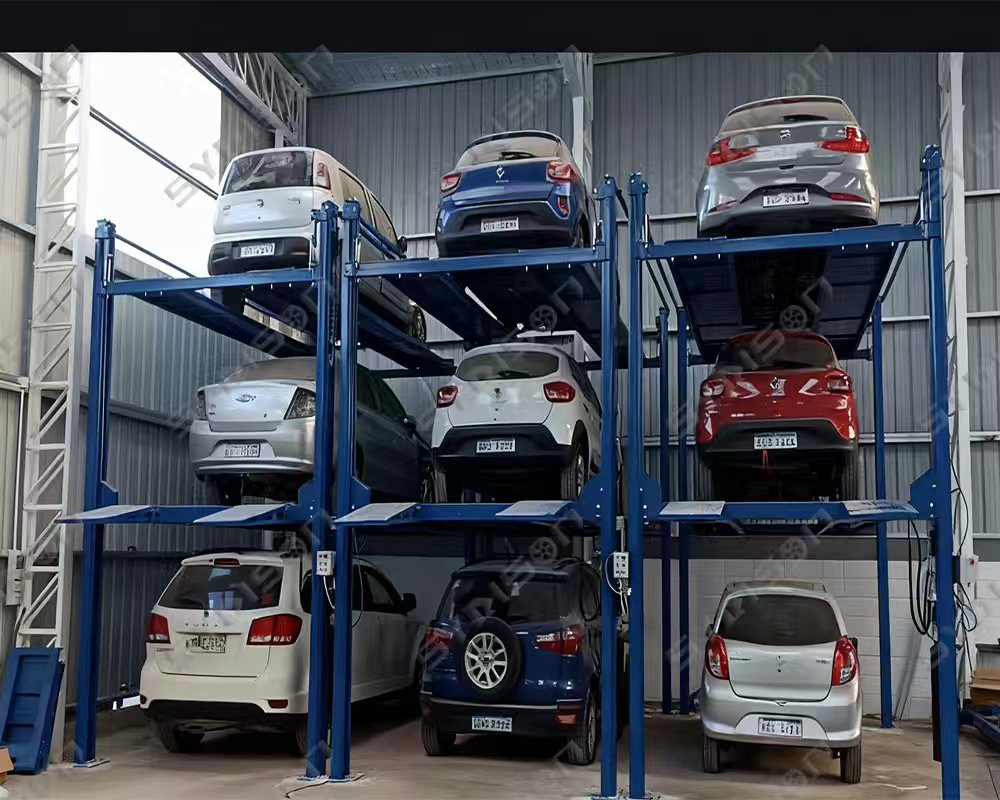

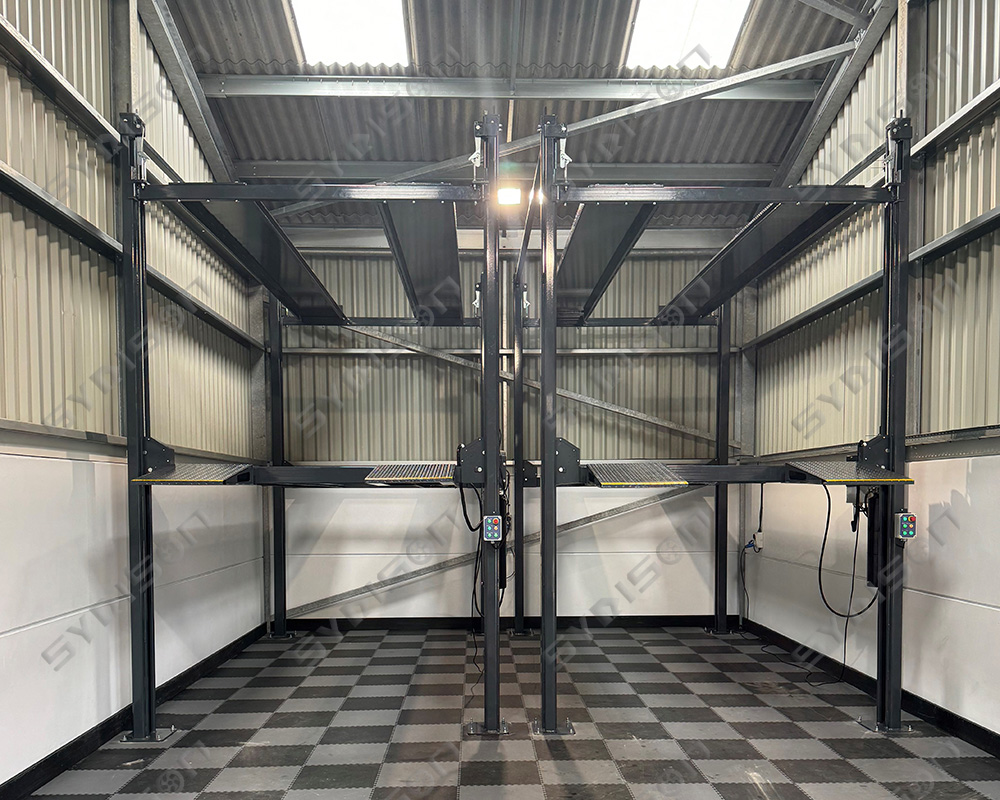

Projects:
Video：
🔹 Product Overview – HFPP Series 3‑Level Car Parking Stacker
The HFPP Series 3‑Level Car Parking Stacker is a high‑density vertical parking solution designed to provide multiple vehicle parking spaces within the same footprint, making it ideal for locations with limited land availability. Featuring a three‑layer stack design and a robust hydraulic lifting system, the HFPP lift delivers smooth and controlled vertical movement for parked vehicles without requiring extensive civil construction.
Each level of the HFPP system is engineered with a load capacity of approximately 2500 kg, suitable for a wide range of passenger cars including sedans, SUVs, and light commercial vehicles. The system uses a single hydraulic cylinder driven by steel cables, combined with electrical unlocking and mechanical anti‑fall devices for enhanced safety and stability.
With its space‑efficient stacker design, the HFPP Series is commonly used in residential garages, commercial parking structures, and valet service areas where maximizing parking capacity is a key priority.
🔹 Typical Applications
The HFPP Series 3‑Level Parking Stacker is suitable for:
Residential underground garages and private homes
Apartment and condominium parking areas
Commercial parking facilities and office buildings
Valet and attendant‑managed lots
Car storage centers and showroom parks
Its three‑layer design turns one parking footprint into three usable spots, helping solve parking congestion in tight spaces and increasing overall parking efficiency.
🔹 Safety Design & Structural Advantages
The HFPP Series emphasizes safety and durability through:
Hydraulic lifting system with steel cables for smooth vertical motion
Mechanical anti‑fall locks at each parking level
Electrical unlocking system for secure and controlled operation
High‑strength steel frame for stable support across all levels
Limit switches and emergency stop controls for added protection
These safety mechanisms are engineered to ensure stable operation under frequent daily use and to safeguard both vehicles and users.
🔹 Installation & Operation Notes
Designed for installation on reinforced concrete floors without requiring a deep pit
Modular structure facilitates efficient on‑site assembly and setup
Platform width, lifting height, and load capacity can be customized per project requirements
Standard electrical control box with push‑button operation for simple daily use
Detailed technical documentation and installation guidance provided for reliable setup
Proper pre‑installation planning and site preparation are essential to ensure smooth long‑term performance.
❓ Frequently Asked Questions (FAQ)
Q1: What does the HFPP Series do?
The HFPP Series is a three‑layer vertical parking stacker, designed to maximize parking capacity by stacking up to three vehicles vertically in a single footprint.
Q2: What vehicles can it accommodate?
Each platform typically supports a load of around 2500 kg, making it suitable for sedans, SUVs, and similar passenger vehicles.
Q3: Does this system require a pit or complex foundation?
No. The HFPP system is designed for installation on reinforced concrete floors without deep pits, simplifying construction and reducing costs.
Q4: How is the lift operated?
Operation is managed via an electrical control panel or push‑button system, making it easy to raise or lower vehicles.
Q5: What safety systems are included?
Standard safety features include mechanical anti‑fall locks, limit switches, emergency stop, and stable hydraulic drive components to ensure reliable daily use.
