Product Description:
When you need to significantly improve existing parking capacity of your garage with a minimal footprint, the answer could be single post car lift. The compactness of this parking lift is ensured by the support of only one post, which has a reliable self-standing design that does not require wall mounting. SPP is not only the efficiency of increasing parking spaces by 2 times while reducing the occupied space, but also the convenience of the parking process: it is never a problem to open the car door freely.
Product Feature:
– Single unit for 2 cars
– Platform load capacity: 2000kg/2500KG
– Ground car height: 1750mm/1950mm
– Usable platform width: 2000mm
– Ramps interchangeable at two directions
– Ideal for applications on corridors and aisles
– Mechanical locks bring superior safety
– Automatic shut-off when operator releases key switch
– 24v control voltage avoids electric shock
– Surface treatment: powder coating
Product Datasheet:
| Model | SPP1820 | SPP1820P | SPP2025 |
| Platform type | runways made | wave plates | wave plates |
| Lifting Capacity | 2000kg | 2000kg | 2500kg |
| Lifting Height | 1800mm | 1800mm | 2000mm |
| Usable Platform Width | 2000mm | 2000mm | 2000mm |
| Operation Mode | Key switch | Key switch | Key switch |
| Safety Lock | Anti-falling lock | Anti-falling lock | Anti-falling lock |
| Lock Release | Electrical release | Electrical release | Electrical release |
| Rising/Desending time | 40s | 40s | 45s |
| Operation Voltage | 24V | 24V | 24V |
| Power pack | 2.2kw hydraulic pump | 2.2kw hydraulic pump | 2.2kw hydraulic pump |
| Available Power supply | 110v-450v,1/3 ph,50/60hz | 110v-450v,1/3 ph,50/60hz | 110v-450v,1/3 ph,50/60hz |
| Surface treatment | Powder coating | Powder coating | Powder coating |

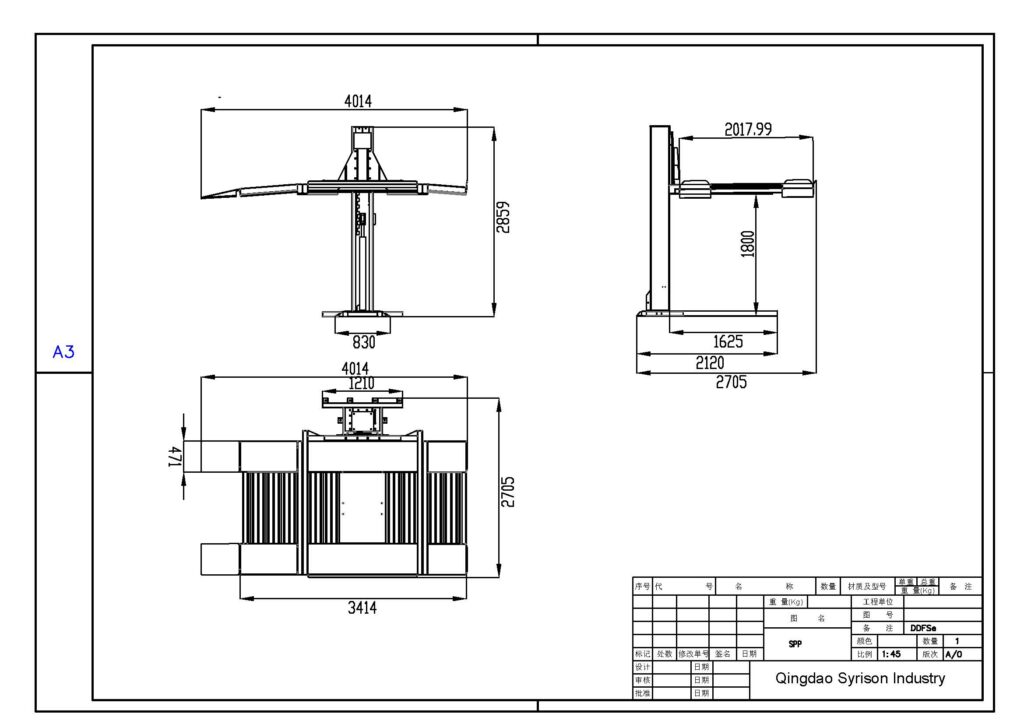

Size Drawing:
