TPI Two Post Tilting Parking Lift for Low Ceiling Garage Parking
Product Introduction:
The SYRISON TPI Series Two Post Tilting Parking Lift is a compact and efficient parking solution designed to increase parking capacity in garages with limited space and restricted ceiling height.
Featuring a two-post structure with a hydraulic tilting platform, the TPI Series allows one vehicle to be parked above another while optimizing available vertical space. The tilting mechanism provides additional clearance flexibility, making it especially suitable for residential garages, private houses, and small commercial parking areas.
Unlike traditional vertical parking lifts, the TPI Series is designed for applications where installation height is limited. The tilting platform helps reduce space requirements while maintaining stable vehicle support and reliable operation.
With a lifting capacity of 2,000 kg, the TPI Series is suitable for most passenger cars, sedans, and compact SUVs. Combined with a reinforced steel structure, hydraulic drive system, and multiple safety protection devices, it provides a practical and cost-effective solution for daily vehicle storage.
Main Features & Advantages
Hydraulic Tilting Platform Design
The TPI Series uses an innovative hydraulic tilting platform structure that improves parking flexibility in low-height garages.
The tilting function helps create additional clearance space while maintaining smooth and controlled vehicle movement during lifting and lowering.
Compact Two-Post Structure
The two-post design minimizes floor space usage and provides a practical parking solution for narrow garages and restricted installation areas.
Its compact structure makes it suitable for projects where traditional parking equipment cannot be installed due to limited space.
Ideal Solution for Low Ceiling Garages
The TPI Series is specially designed for environments with limited vertical clearance.
Typical applications include:
- Private garages
- Villas and residential houses
- Underground parking areas
- Small commercial parking spaces
Space-Saving Double Parking
By stacking two vehicles vertically within one parking footprint, the TPI Series effectively increases parking capacity without requiring additional land.
It is an economical solution for customers looking to maximize existing parking space.
Reliable Hydraulic Lifting System
The hydraulic drive system provides:
- Smooth lifting performance
- Stable platform movement
- Low operating noise
- Easy maintenance
- Long service life
The system is designed for reliable daily operation in residential and light commercial environments.
Strong Steel Structure
Manufactured from high-strength steel, the TPI Series provides excellent structural stability and durability.
The powder-coated surface treatment improves corrosion resistance, while optional hot-dip galvanizing is available for outdoor applications.
Multiple Safety Protection Systems
The TPI Series incorporates comprehensive safety protection features, including:
✔ Mechanical anti-fall safety locks
✔ Hydraulic safety valves
✔ Lifting limit switches
✔ Emergency stop function
✔ Reinforced two-post steel structure
These safety systems ensure secure vehicle support during lifting, parking, and storage.
Typical Applications
The TPI Two Post Tilting Parking Lift is widely used in:
- Residential private garages
- Villas and houses
- Apartment parking areas
- Small commercial parking facilities
- Vehicle storage areas
- Automotive showrooms
It is especially suitable for projects requiring additional parking capacity where available height and installation space are limited.
Why Choose This System
- Designed specifically for low ceiling garages
- Compact two-post tilting structure
- Doubles parking capacity within one space
- Smooth hydraulic lifting and tilting operation
- No deep pit required
- Flexible customization options
- Reliable safety protection system
- Cost-effective solution for residential and small commercial parking
Customization & Service
The TPI Series can be customized according to different project requirements, including:
- Platform length and width
- Lifting height
- Tilting angle
- Load capacity
- Power supply
- Control system
- Surface treatment
- Equipment color
Our engineering team provides professional technical support, including:
- CAD layout drawings
- Technical specifications
- Installation guidance
- Operation manuals
- Spare parts supply
- Remote technical assistance
CE Certification
The TPI Two Post Tilting Parking Lift is manufactured according to applicable European safety requirements and supplied with CE certification for international markets.
The system incorporates multiple safety protection devices, including mechanical locking systems, hydraulic safety components, and electrical protection functions to ensure safe and reliable operation.
CE certificates, technical documentation, drawings, and product specifications are available upon request for project evaluation and international procurement.

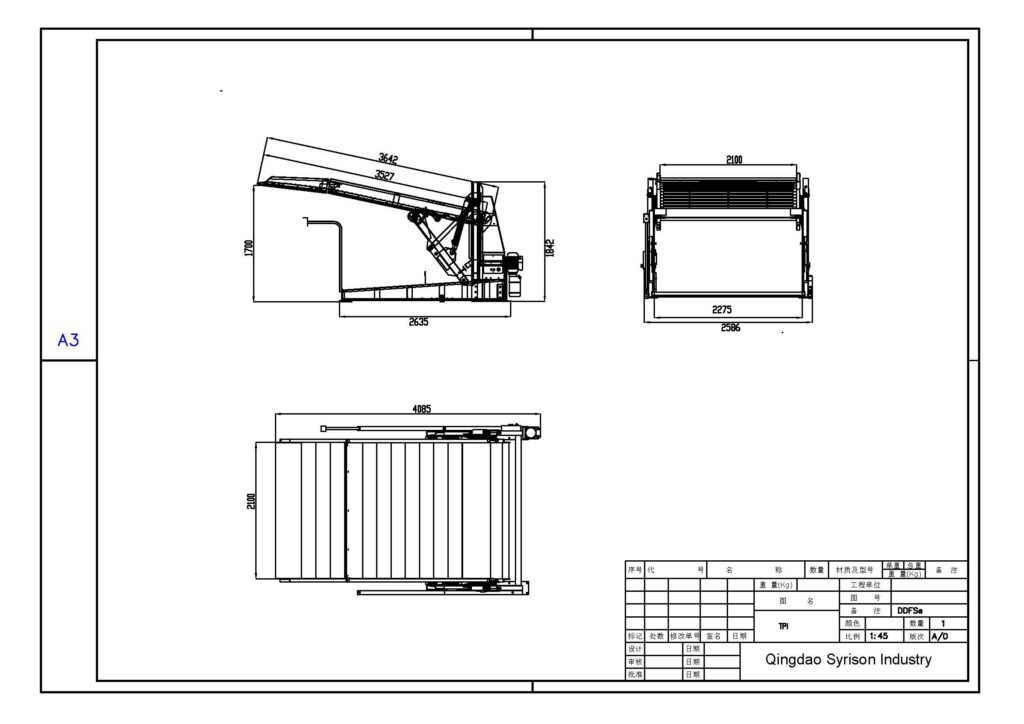

Size Drawing：
Data Sheet:
| Model | TPI |
|---|---|
| Lifting capacity | 2000kg |
| Lifting height | 1750mm |
| Driving system | two cylinders |
| Unlocking release | electrical unlocking system |
| Control system | key switch |
| Rising time | 35s |
| Machine size | 4127*2639*1950mm |
| Package size | 2800mm*730mm*1900mm*880kg |
| Power supply | 100-480V, 1/3P, 50/60Hz |

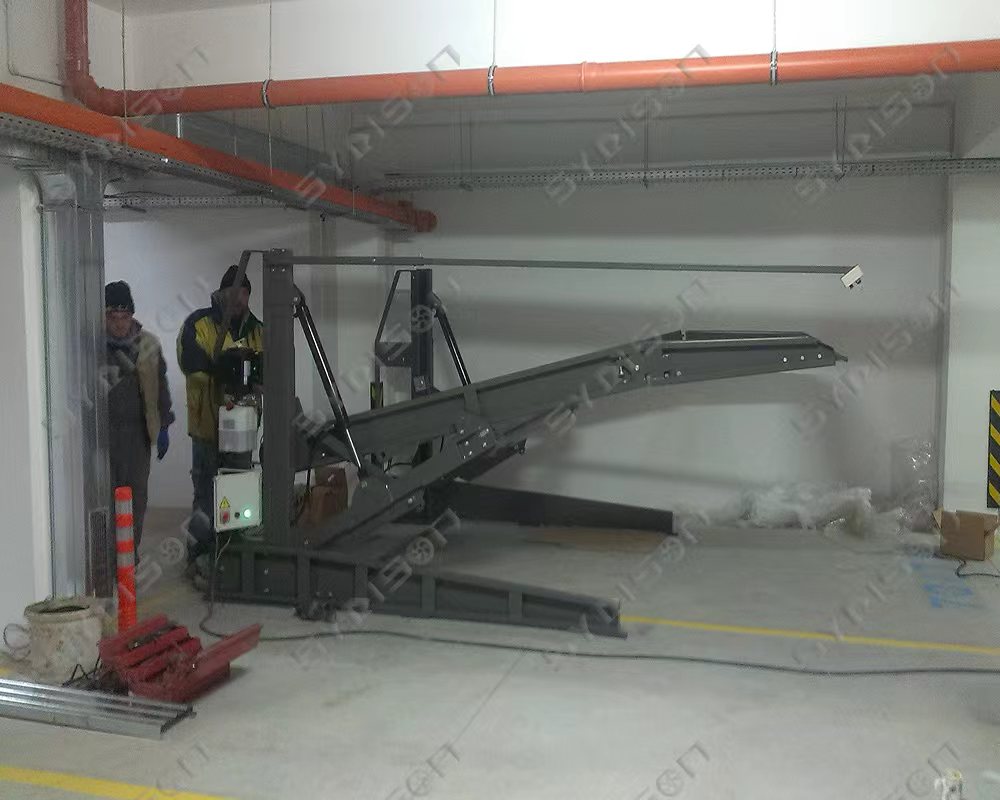

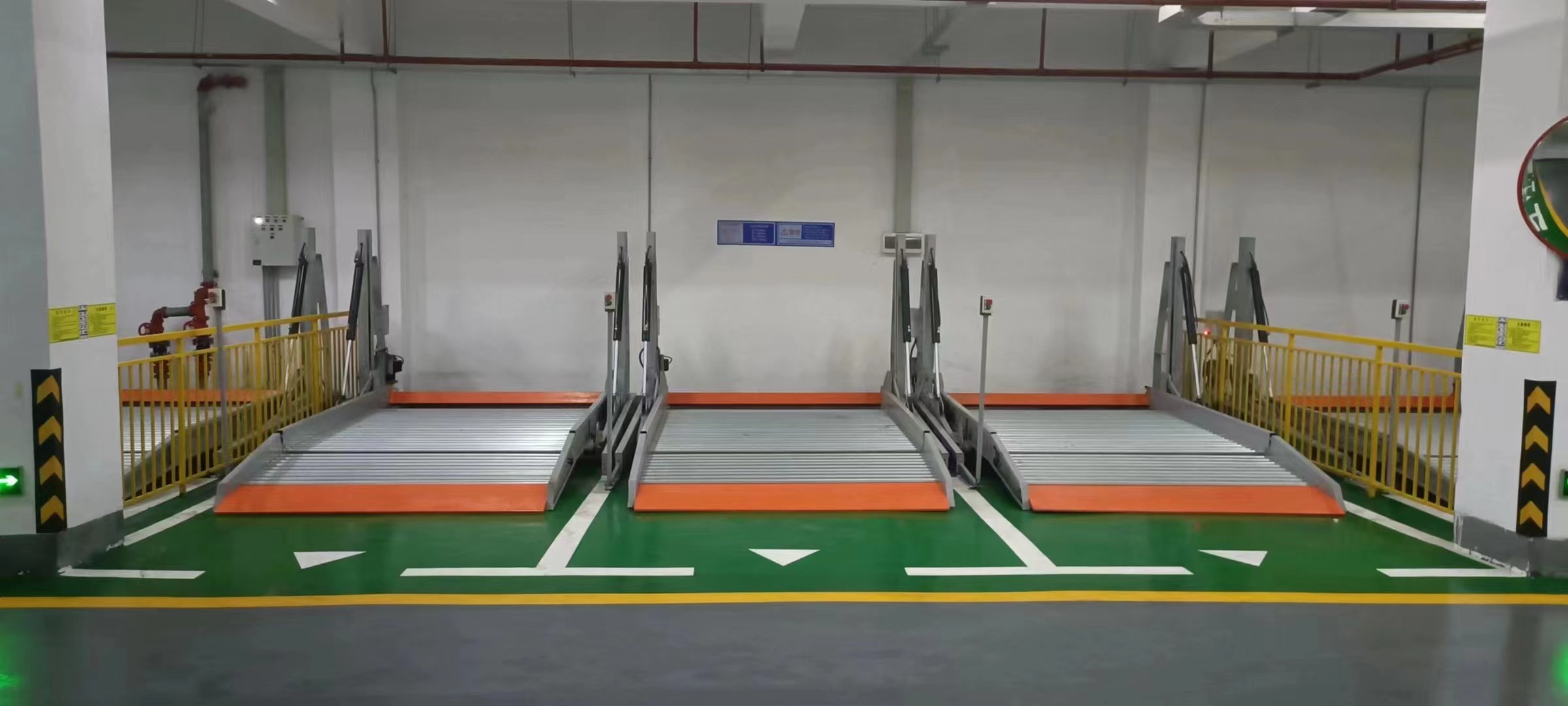

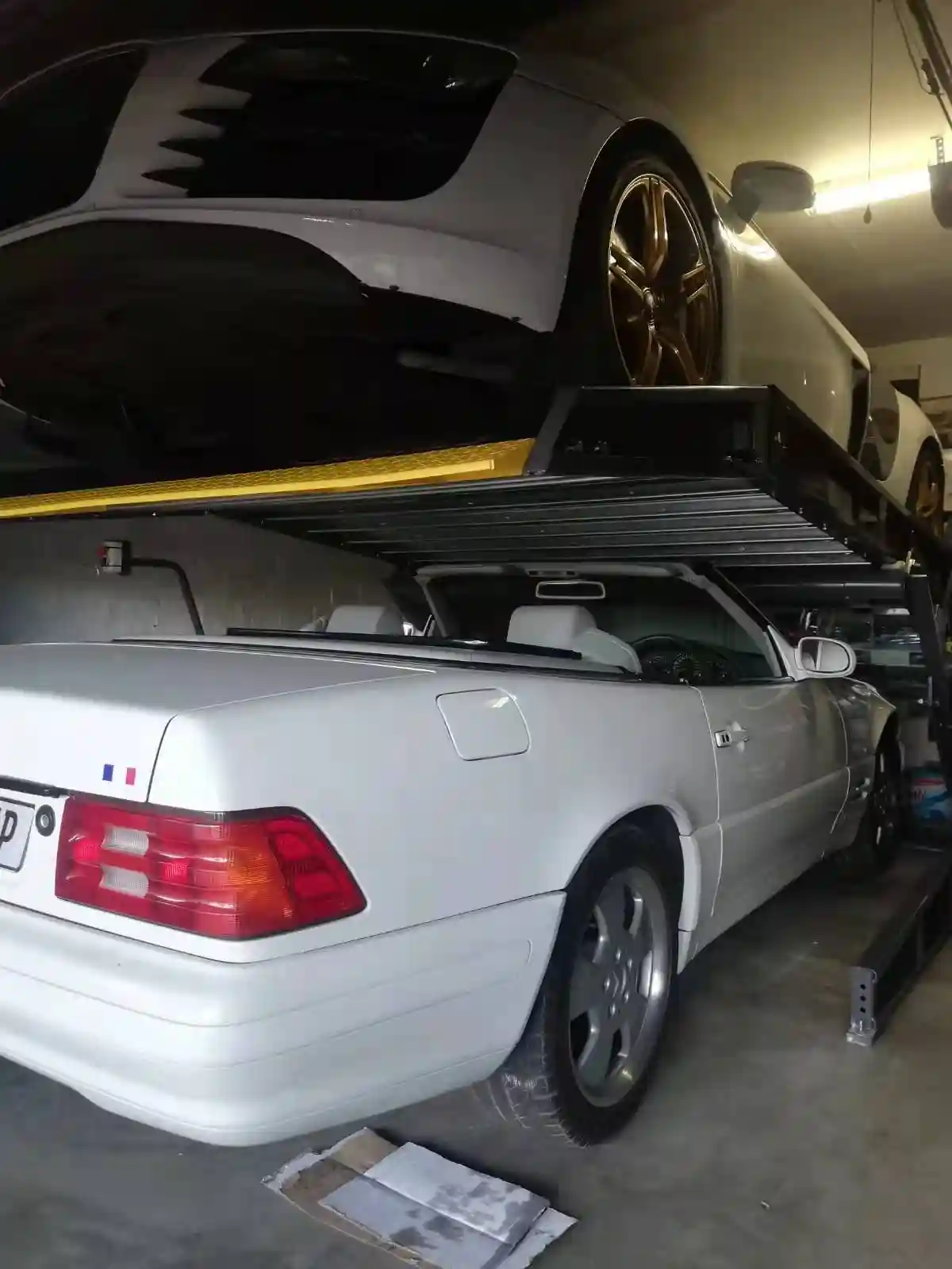

Projects:
Video:
Engineering Design & Application Details of TPI Series
Compact Tilting Platform Structure for Limited Spaces
The TPI Series is engineered with a compact two-post structure and hydraulic tilting platform, providing an efficient parking solution for areas where traditional vertical lifts cannot be installed.
The tilting platform design allows the upper vehicle position to be adjusted according to available ceiling height and site conditions, improving installation flexibility while maintaining stable vehicle support.
This structure makes the TPI Series especially suitable for residential garages, private parking spaces, and low-clearance parking environments.
Low Ceiling Parking Solution
One of the main advantages of the TPI Series is its ability to operate effectively in locations with limited vertical space.
Compared with conventional vertical parking lifts, the tilting structure helps optimize the required installation height, making it suitable for:
- Private garages with low ceilings
- Underground residential parking areas
- Renovated garage spaces
- Small commercial parking facilities
By utilizing available vertical space efficiently, the TPI Series helps customers increase parking capacity without major structural modifications.
Stable Hydraulic Tilting and Lifting System
The TPI Series combines hydraulic lifting technology with a tilting platform mechanism to achieve smooth and controlled movement.
The hydraulic system provides:
- Stable lifting performance
- Controlled platform tilting
- Low noise operation
- Reliable daily performance
- Simple maintenance requirements
The reinforced hydraulic components are designed to provide consistent operation throughout repeated lifting cycles.
Safety Design & Structural Advantages
Safety and reliability are essential elements in the TPI Series design.
The system includes:
- Mechanical anti-fall safety locks
- Hydraulic safety valves
- Electrical limit switches
- Emergency stop function
- Reinforced two-post steel structure
- Stable platform support system
These protection systems work together to ensure secure vehicle storage and safe operation during lifting and lowering.
Installation & Operation Notes
The TPI Series is designed for simple installation and convenient operation.
Installation advantages include:
- Surface-mounted installation on reinforced concrete floors
- No deep pit required
- No wall mounting required
- Compact installation footprint
- Flexible platform dimensions
- Adjustable lifting height according to project requirements
Operation is simple through an electrical control system, allowing users to easily raise and lower the platform.
Before production, our engineering team can provide:
- CAD layout drawings
- Technical specifications
- Installation requirements
- Foundation recommendations
- Operation instructions
Professional planning ensures smooth installation and reliable long-term performance.
Frequently Asked Questions (FAQ)
Q1: What Is the TPI Two Post Tilting Parking Lift Used For?
The TPI Series is a compact parking lift designed to increase parking capacity by stacking two vehicles vertically within one parking space.
Its hydraulic tilting platform design makes it especially suitable for residential garages, private houses, apartment parking areas, and projects where ceiling height is limited.
Q2: What Makes the TPI Different from a Traditional Two Post Parking Lift?
The main difference is the tilting platform structure.
Unlike standard vertical parking lifts, the TPI Series uses a hydraulic tilting mechanism that provides additional installation flexibility, making it more suitable for low-ceiling garages and restricted spaces.
Q3: What Types of Vehicles Can the TPI Series Accommodate?
The TPI Series is designed for passenger vehicles, including:
- Sedans
- Hatchbacks
- Compact SUVs
- Standard passenger cars
With a rated lifting capacity of 2,000 kg, it is suitable for most daily-use vehicles.
Q4: Does the TPI Parking Lift Require a Pit or Wall Mounting?
No.
The TPI Series is designed for surface installation on reinforced concrete floors.
It does not require:
- Deep pits
- Wall mounting
- Complex civil construction
This helps reduce installation costs and provides greater flexibility for different garage environments.
Q5: Is the TPI Series Suitable for Low Ceiling Garages?
Yes.
The TPI Series is specifically designed for locations with limited ceiling height.
The hydraulic tilting platform allows the system to optimize available vertical space, making it an ideal solution for garages where conventional parking lifts may not fit.
Q6: What Safety Protection Systems Are Included?
The TPI Series includes multiple safety protection systems, including:
✔ Mechanical anti-fall safety locks
✔ Hydraulic safety valves
✔ Lifting limit switches
✔ Emergency stop function
✔ Reinforced steel support structure
These features ensure stable and secure vehicle storage during daily operation.
Q7: Can the TPI Platform Size and Configuration Be Customized?
Yes.
Customization options include:
- Platform length and width
- Lifting height
- Tilting angle
- Load capacity
- Power supply
- Control system
- Surface treatment
- Equipment color
Our engineering team can provide customized solutions according to your garage dimensions and vehicle requirements.
Q8: Can the TPI Series Be Installed Outdoors?
Yes.
For outdoor applications, optional protection treatments are available, including:
- Hot-dip galvanizing
- Enhanced anti-corrosion coating
- Weather-resistant surface protection
The recommended solution depends on local climate conditions and installation environment.
Q9: Is the TPI Series Suitable for Commercial Use?
Yes.
Although the TPI Series is commonly used in residential applications, it can also be applied in:
- Small commercial parking facilities
- Vehicle storage areas
- Automotive showrooms
- Valet parking areas
It provides a practical solution where parking space is limited.
Q10: What Technical Support Do You Provide After Purchase?
We provide complete technical support, including:
- Project consultation
- CAD layout drawings
- Installation guidance
- Operation manuals
- Spare parts supply
- Remote technical assistance
- Long-term after-sales support
Our engineering team supports customers throughout the entire project process to ensure reliable installation and operation.
