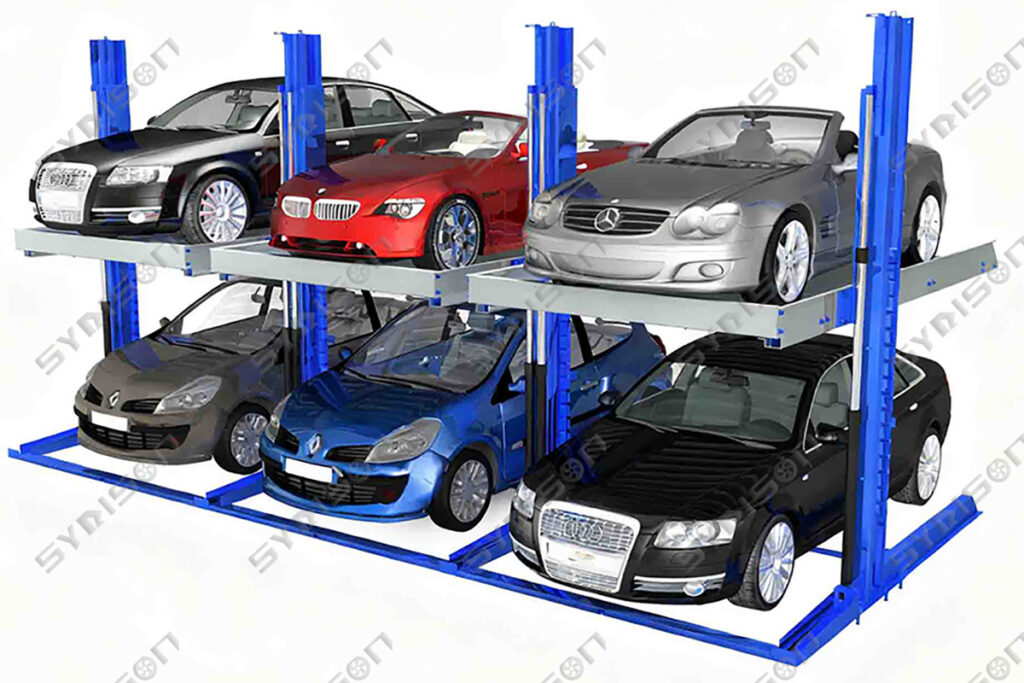

tpp106 3 joined

Product Introduction
The two-post hydraulic car parking lift is a simple and efficient solution designed to double parking capacity in limited spaces. It features a powerful hydraulic cylinder system that provides smooth and stable lifting performance. Built with high-strength steel and durable powder coating, it is suitable for both residential and commercial use. This model is ideal for car repair shops, private garages, and parking areas where space saving and cost efficiency are important.

Main Features

  • Two-post structure with compact and space-saving design

  • Lifting capacity: 2 tons

  • Hydraulic drive system ensures stable and quiet operation

  • Heavy-duty steel construction with corrosion-resistant powder coating

  • Simple up/down control for easy and reliable operation

  • Equipped with mechanical locks, anti-falling system, and emergency stop switch

  • Can be installed directly on concrete floor without complex civil work

  • Optional galvanized platform for outdoor use

  • Customizable lifting height and platform width on request

Size Drawing:

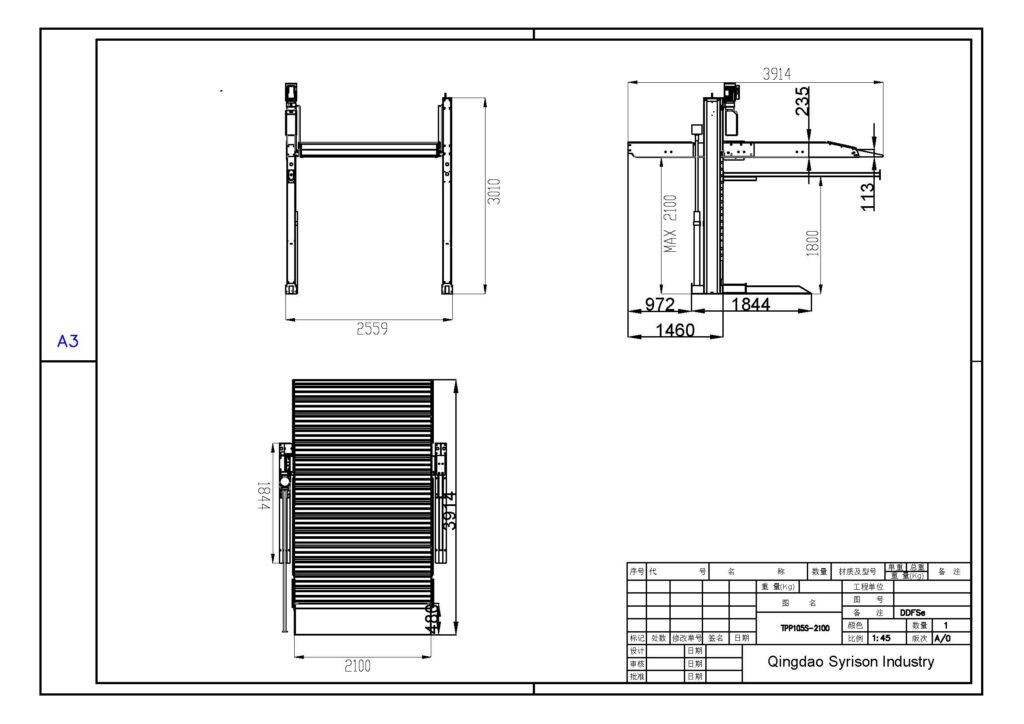

tpp105s size

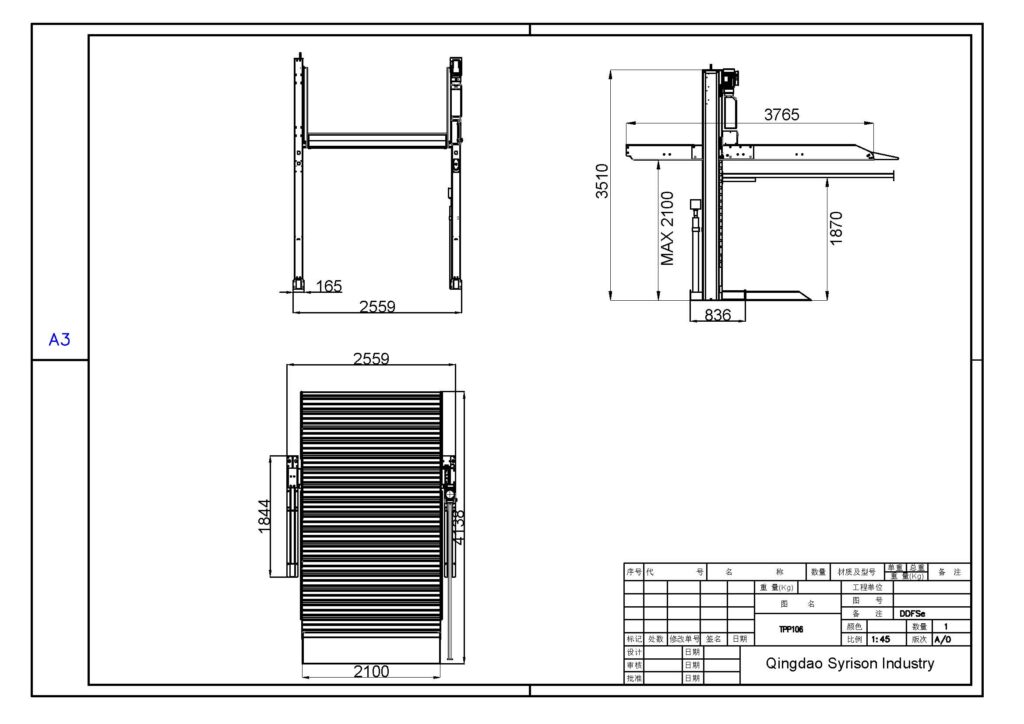

tpp106s size

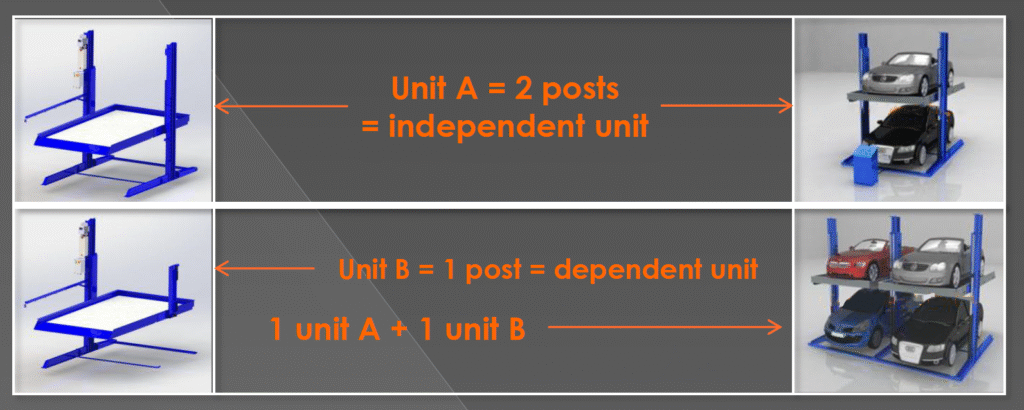

Symmetrical designed column can be shared by two units:

unita&unitb

Data Sheet:

Model TPP105/TPP106/TPP106Max
Lifting capacity ≤2300kg/2700kg/3200kg
Lifting height 2100mm
Driving system Hydraulic cylinder + chains
Unlock system 24V electrical unlocking system
Lifting speed <50s
Control system Key switch
Package size 3850*950*900mm*950kg/1050kg/1150kg
Power supply 100-480V, 1/3P, 50/60Hz

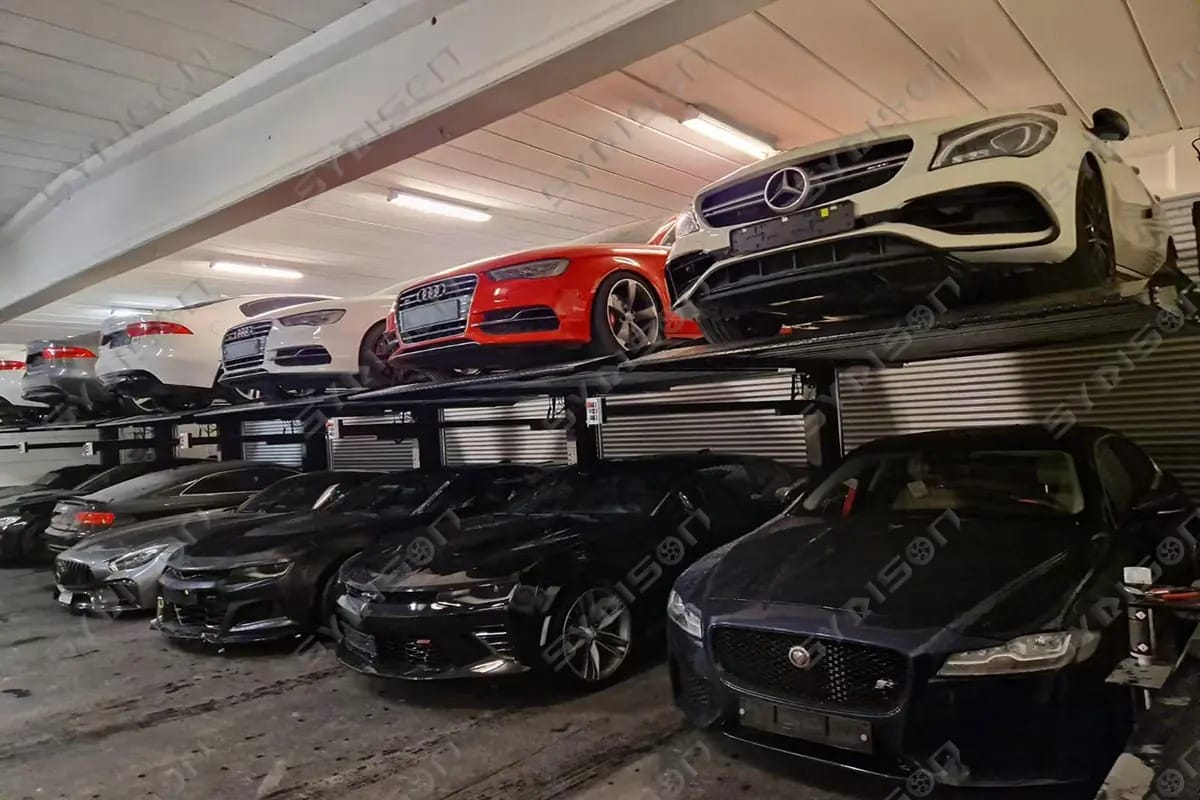

Projects:
