DFPP-2 Double Platform Four Post Parking Lift
Product Introduction
The SYRISON DFPP-2 Series Double Platform Four Post Parking Lift is a modular high-capacity parking solution developed by combining two DFPP hydraulic four-post parking lifts into one integrated system. It is specifically designed to maximize parking density for commercial, residential, and vehicle storage applications.
Each DFPP module features double parking platforms, allowing two vehicles to be parked side by side on every level. By combining one larger DFPP unit with one compact DFPP unit, the DFPP-2 Series can accommodate up to six vehicles within a compact footprint while maintaining independent platform operation and excellent structural stability.
Powered by hydraulic cylinders and synchronized cable systems, the DFPP-2 Series delivers smooth lifting, reliable performance, and long service life. Its modular design also allows flexible layouts, quick installation, and easy transportation, making it an ideal solution for apartment buildings, dealerships, commercial garages, and high-density parking projects.
Main Features & Advantages
Modular Double-DFPP Configuration
The DFPP-2 Series combines one standard DFPP lift and one compact DFPP lift into a modular parking system, providing six parking spaces while maintaining excellent flexibility for different project layouts.
Double Platform Parking Design
Each lifting platform accommodates two vehicles side by side, allowing every lifting cycle to move two vehicles simultaneously and greatly improving parking efficiency.
Heavy-Duty Four-Post Structure
Both lifting units utilize reinforced four-post steel construction with optimized load distribution, ensuring outstanding stability, durability, and long-term reliability.
Hydraulic Cylinder & Cable Drive
Premium hydraulic cylinders combined with synchronized steel cables provide smooth, stable, and quiet lifting performance with low maintenance requirements.
Comprehensive Safety Protection
Each lift is equipped with mechanical anti-fall safety locks, hydraulic safety valves, electrical unlocking systems, limit switches, and emergency stop functions to ensure safe daily operation.
Flexible Customization
Platform dimensions, lifting height, rated capacity, electrical configuration, and surface treatment can all be customized according to project requirements.
Typical Applications
- Commercial Parking Garages
- Apartment & Condominium Parking
- Residential Villas
- Car Dealerships
- Vehicle Storage Centers
- Fleet Parking Facilities
Why Choose This System
- Park up to six vehicles within a compact footprint
- Two independent DFPP modules with double parking platforms
- Proven DFPP hydraulic lifting technology
- Heavy-duty four-post construction
- Modular installation for flexible project layouts
- Factory-direct engineering support and global after-sales service
Customization & Service
Platform dimensions, lifting height, rated capacity, power supply, control systems, equipment colors, and corrosion protection can all be customized according to your project requirements.
Our engineering team provides complimentary CAD layout drawings, installation guidance, remote technical support, and complete after-sales service for global distributors and project contractors.
EN1493 CE Certification
The DFPP-2 Series Double Platform Four Post Parking Lift is developed by combining two DFPP hydraulic parking lift modules into one integrated high-capacity parking system.
The DFPP hydraulic four-post platform has successfully completed EN1493 CE certification conducted by CEM International Ltd (UK), verifying its structural strength, hydraulic performance, mechanical safety systems, and operational reliability under demanding testing conditions.
The EN1493 certification process included comprehensive safety verification, including:
✔ 115% Dynamic Load Test
✔ 150% Static Load Test
✔ Offset Load Test
✔ Mechanical Safety Lock Verification
✔ Hydraulic System Performance Test
✔ Operational Noise & Functional Safety Testing
Based on the proven DFPP lifting platform, the DFPP-2 Series adopts the same heavy-duty structural design, hydraulic lifting technology, and multiple safety protection systems, providing reliable performance for demanding vehicle parking applications.
Official CE Certificates, Test Reports, and Technical Documentation are available upon request for project evaluation and distributor approval.

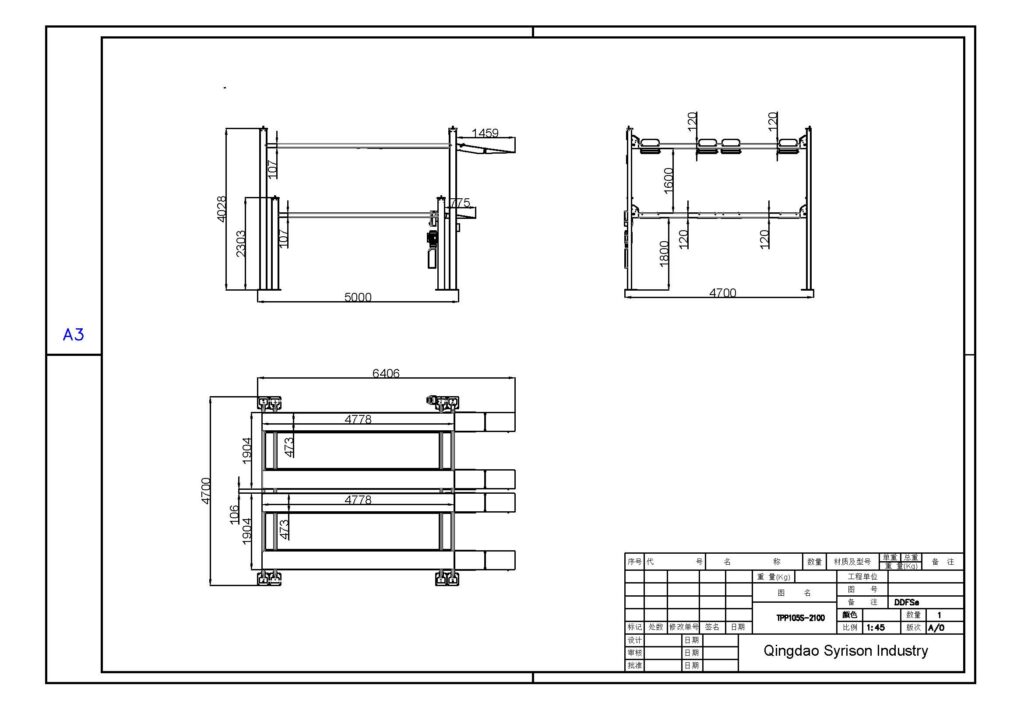

Size Drawing:
Data Sheet:
| Model | DFPP-6 |
|---|---|
| Lifting capacity | 4000kg |
| Lifting height | 2000mm/1700mm |
| Driving system | two cylinder&cables |
| Unlocking release | 24V electrical unlocking system |
| Lifting speed | 1.8m/min |
| Control system | Button on electrical control box |
| Package size | 5150*550*1400mm*2347kg;4410*550*1180mm*1270kg |
| Power supply | 100-480V, 1/3P, 50/60Hz |

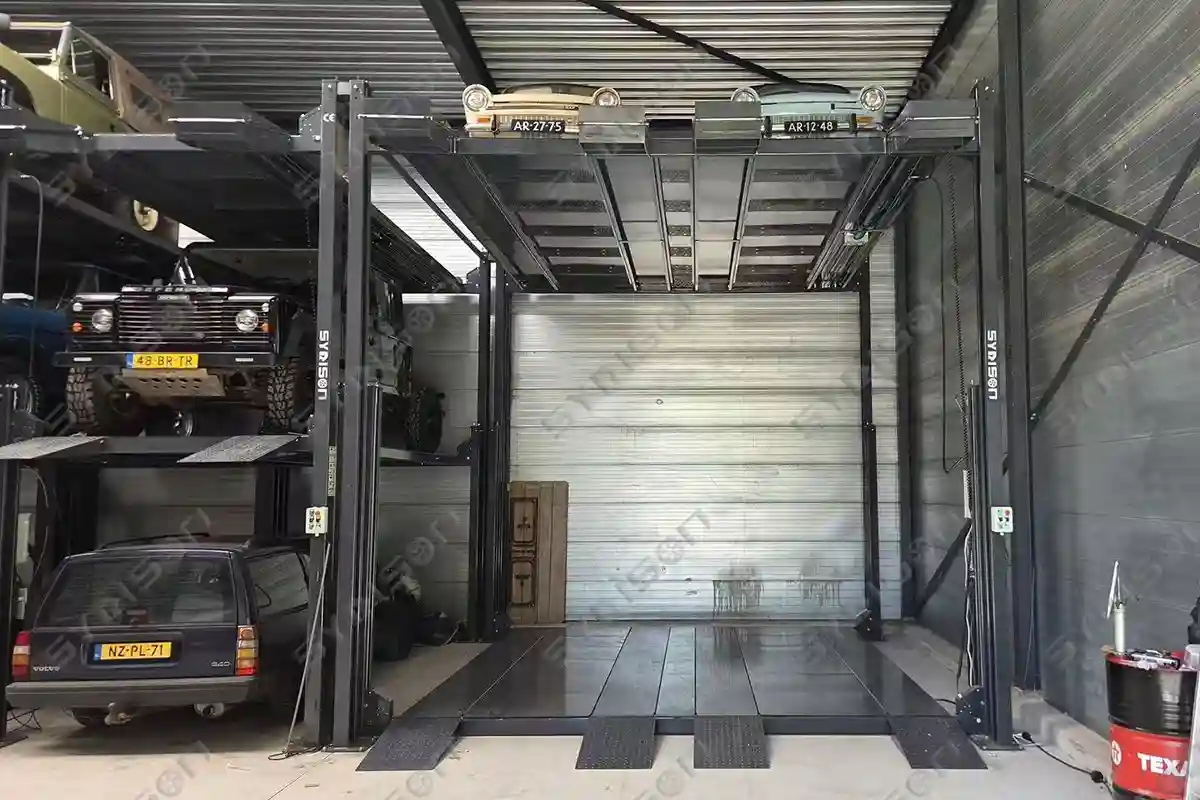

Projects:
Video:
Engineering Design & Application Details of DFPP-2 Series
Double DFPP Modular Design
The DFPP-2 Series adopts a modular configuration by combining one standard DFPP lift with one compact DFPP lift. Each lifting unit features double parking platforms, allowing two vehicles to be parked side by side on every level. This modular design creates a highly efficient six-car parking solution while maintaining excellent structural stability and installation flexibility.
Compared with traditional parking systems, the DFPP-2 Series provides significantly higher parking density without increasing the building footprint, making it ideal for projects where land utilization is a priority.
Flexible Parking Applications
The DFPP-2 Series Double Platform Four Post Parking Lift is widely used for:
- Residential apartment buildings
- Private villas and luxury homes
- Commercial parking garages
- Car dealerships
- Vehicle storage facilities
- Fleet parking centers
- Office buildings
- Mixed-use developments
Its modular structure allows multiple systems to be installed side by side, making it suitable for both small residential projects and large commercial parking developments.
Safety Design & Structural Advantages
Safety and long-term durability are the foundation of the DFPP-2 Series. Each DFPP lifting module incorporates multiple safety protection systems to ensure reliable daily operation.
- Heavy-duty four-post steel construction for maximum structural stability
- Hydraulic cylinder with synchronized steel cable lifting system
- 24V electrical unlocking system for safe and convenient operation
- Mechanical anti-fall safety locks positioned at multiple lifting heights
- Hydraulic anti-explosion valves to prevent sudden platform descent
- Upper limit switches to prevent over-travel
- Emergency stop function for immediate shutdown when required
- High-strength powder-coated steel structure with optional hot-dip galvanizing for outdoor installations
Built on the proven DFPP hydraulic platform, the DFPP-2 Series delivers reliable lifting performance and long service life in both residential and commercial parking applications.
Proven in Global Parking Projects
The DFPP Series has been successfully installed in numerous parking projects across Europe, North America, Australia, the Middle East, South America, and Southeast Asia.
Based on the same proven hydraulic lifting platform, the DFPP-2 Series provides an ideal solution for customers requiring higher parking capacity while maintaining the reliability, durability, and engineering quality of the DFPP product family.
Installation & Operation Notes
- Designed for installation on reinforced concrete floors without requiring a pit
- Modular design allows fast transportation, installation, and future expansion
- Independent operation of each DFPP module improves parking flexibility and vehicle retrieval efficiency
- Push-button electrical control with 24V electrical unlocking system for safe and convenient operation
- Platform dimensions, lifting height, load capacity, and power supply can be customized according to project requirements
- Powder-coated finish as standard, with optional hot-dip galvanized treatment for outdoor installations
- Complete CAD layout drawings, foundation drawings, installation manuals, remote technical support, and spare parts service are provided for every project
Frequently Asked Questions (FAQ)
Q1: What Is the DFPP-2 Double Platform Four Post Parking Lift?
The DFPP-2 Series is a modular parking system that combines two DFPP hydraulic four-post parking lifts into one integrated solution. Each lifting platform accommodates two vehicles, allowing up to six vehicles to be parked within a compact footprint.
Q2: How Many Vehicles Can the DFPP-2 Series Park?
The standard DFPP-2 configuration accommodates up to six passenger vehicles using three parking levels with two vehicles parked side by side on each level.
Q3: What Types of Vehicles Can the DFPP-2 Series Accommodate?
The DFPP-2 Series is suitable for most passenger cars, SUVs, pickup trucks, and light commercial vehicles. Different load capacities and platform dimensions are available to suit specific project requirements.
Q4: Does the DFPP-2 Series Require a Pit?
No. The DFPP-2 Series is designed for pit-free installation on reinforced concrete floors, helping reduce civil construction costs while simplifying installation and maintenance.
Q5: What Safety Protection Systems Are Included?
The system incorporates multiple safety features, including:
✔ Mechanical anti-fall safety locks
✔ Hydraulic anti-explosion safety valves
✔ 24V electrical unlocking system
✔ Upper limit switches
✔ Emergency stop function
✔ Reinforced four-post steel structure
✔ Synchronized hydraulic cylinder and cable lifting system
Q6: Is the DFPP-2 Series Suitable for Frequent Daily Operation?
Yes. The DFPP-2 Series is designed for both residential and commercial applications. Its heavy-duty hydraulic lifting system and reinforced steel structure ensure reliable performance under frequent daily operation.
Q7: Can the DFPP-2 Series Be Customized?
Yes. We offer flexible customization for platform dimensions, lifting height, rated capacity, power supply, control systems, surface treatment, and equipment colors. Complimentary CAD layout drawings are provided for every project.
Q8: Can the DFPP-2 Series Be Installed Outdoors?
Yes. Optional hot-dip galvanized construction and enhanced anti-corrosion treatments are available for outdoor installations depending on the local climate and project environment.
Q9: Can I Receive the CE Certificate and Test Reports Before Ordering?
Yes. Upon request, we can provide the relevant EN1493 CE Certificate, Test Reports, Technical Documentation, and Technical Construction File (TCF) for project evaluation and compliance review.
Q10: What Technical Support Do You Provide After Purchase?
Our engineering team provides complete technical support, including CAD layout drawings, installation guidance, operation manuals, spare parts supply, remote troubleshooting, and long-term after-sales service to ensure reliable operation throughout the product’s service life.
