DFPP-I Reinforced Three-Level Four Post Parking Lift for 6 Cars
Product Introduction
The SYRISON DFPP-I Reinforced Three-Level Four Post Parking Lift is an upgraded heavy-duty mechanical parking solution designed to accommodate up to six vehicles within the footprint of just two parking spaces.
Developed from the proven DFPP-2 design, the DFPP-I features an innovative reinforced integrated column structure, in which each pair of columns is welded into a single heavy-duty support assembly. This design significantly improves structural rigidity, installation accuracy, and long-term operational stability while maintaining the same high parking capacity.
Each parking level accommodates two vehicles side by side, allowing a total configuration of 2 vehicles on the ground level, 2 vehicles on the middle platform, and 2 vehicles on the top platform. The DFPP-I is ideal for residential developments, commercial parking facilities, vehicle storage centers, car dealerships, and projects where maximum parking efficiency is required.
Powered by a reliable hydraulic cylinder and cable lifting system, the DFPP-I delivers smooth lifting performance, dependable operation, and excellent durability for continuous daily use.
Main Features & Advantages
Reinforced Integrated Four-Post Structure
Compared with the standard DFPP-2 configuration, the DFPP-I adopts integrated welded column assemblies, providing greater structural rigidity, improved alignment accuracy, and enhanced long-term durability.
Six-Car Parking Capacity
Three parking levels accommodate six vehicles (2+2+2), dramatically increasing parking density while minimizing land usage.
Heavy-Duty Hydraulic Drive System
A proven hydraulic cylinder and cable synchronization system ensures smooth, stable, and reliable lifting throughout every operating cycle.
Optimized Structural Stability
The reinforced column design reduces structural deflection and improves overall stability, making the system suitable for demanding commercial parking applications.
Advanced Safety Protection
Each lift is equipped with electrical unlocking, mechanical anti-fall safety locks, hydraulic safety valves, upper limit switches, cable protection devices, and emergency stop functions to ensure safe and reliable operation.
Easy Installation & Maintenance
Factory pre-engineered components simplify installation while reducing on-site adjustment time and long-term maintenance requirements.
Typical Applications
The DFPP-I Reinforced Four Post Parking Lift is ideal for:
- Residential apartment developments
- Commercial parking facilities
- Car dealerships
- Vehicle storage centers
- Fleet parking projects
- Luxury residential garages
- High-density parking installations
Why Choose This System
- Parks 6 vehicles within the footprint of only two parking spaces
- Reinforced integrated column structure for maximum stability
- Proven hydraulic lifting technology with reliable daily performance
- Space-saving mechanical parking solution with low operating costs
- Factory-direct manufacturing with professional engineering support
- Custom designs available for different vehicle sizes and project layouts
Customization & Service
We provide complete customization according to your project requirements, including:
- Platform dimensions
- Lifting height
- Rated load capacity
- Power supply
- Equipment color
- Surface treatment (Powder Coating or Hot-Dip Galvanized)
- Control system configuration
Our engineering team also provides professional CAD layouts, foundation drawings, installation guidance, spare parts support, and long-term remote technical assistance.
EN1493 CE Certification
The DFPP-I Reinforced Three-Level Four Post Parking Lift is developed based on the proven DFPP Series lifting platform and incorporates the same hydraulic lifting technology, safety locking mechanism, and engineering design principles.
The DFPP Series has successfully completed EN1493 CE certification conducted by CEM International Ltd (UK), verifying the safety and performance of its lifting system through comprehensive testing, including:
✔ 115% Dynamic Load Test
✔ 150% Static Load Test
✔ Offset Load Test
✔ Mechanical Safety Lock Verification
✔ Hydraulic System Performance Test
✔ Operational Stability & Functional Safety Testing
For DFPP-I projects, complete technical documentation, engineering calculations, and relevant certification documents can be provided to support project evaluation and compliance requirements.

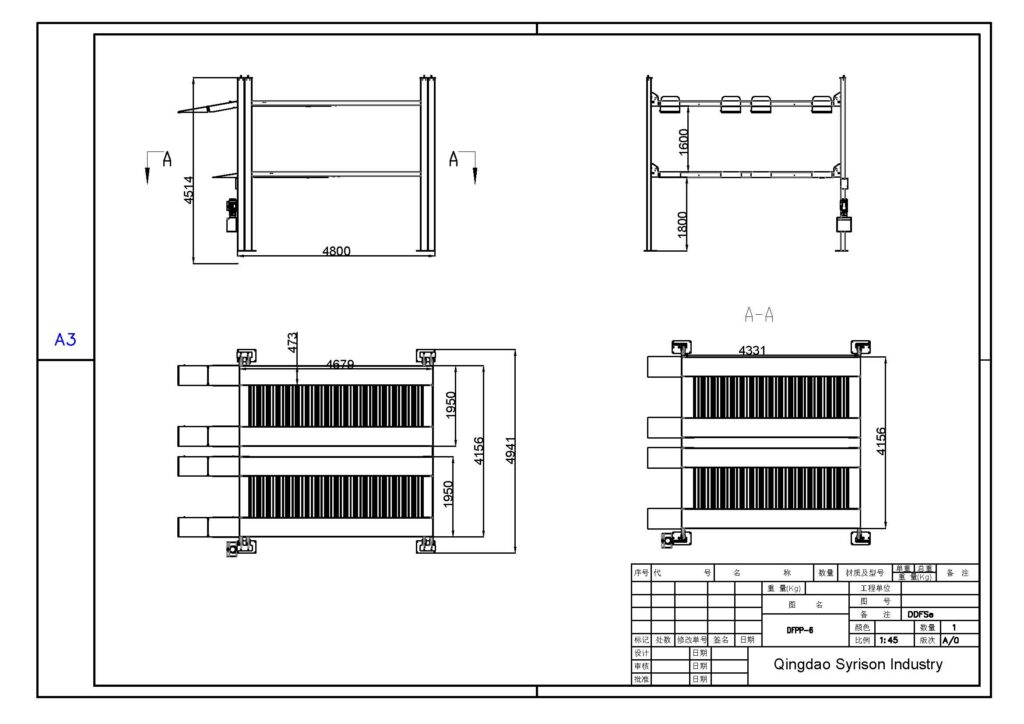

Size Drawing：
Data Sheet:
| Model | DFPP-6 |
|---|---|
| Lifting capacity | 4000kg |
| Lifting height | 2000mm/1700mm |
| Driving system | two cylinder&cables |
| Unlocking release | 24V electrical unlocking system |
| Lifting speed | 1.8m/min |
| Control system | Button on electrical control box |
| Package size | 5150*550*1400mm*2347kg;4410*550*1180mm*1270kg |
| Power supply | 100-480V, 1/3P, 50/60Hz |
Projects:
Video:
Engineering Design & Application Details of DFPP-I Series
Reinforced Integrated Column Structure
The DFPP-I Series is an upgraded version of the DFPP-2 parking lift, developed with a reinforced integrated column structure to provide greater rigidity and long-term reliability.
Unlike the DFPP-2 configuration, which combines large and small lifting units, the DFPP-I adopts eight columns of identical height. Every two columns are factory welded into one integrated support assembly, forming four reinforced column units.
This optimized design offers several advantages:
- Higher structural rigidity
- Improved installation accuracy
- Better load distribution
- Reduced structural deflection
- Easier on-site alignment
- Enhanced long-term durability
The integrated column design makes the DFPP-I especially suitable for high-frequency commercial parking applications and projects requiring maximum structural stability.
High-Density Six-Car Parking Solution
The DFPP-I efficiently transforms the footprint of two conventional parking spaces into six independent parking spaces.
Its three-level layout accommodates:
- Ground Level: 2 vehicles
- Middle Platform: 2 vehicles
- Top Platform: 2 vehicles
This configuration significantly increases parking capacity while minimizing land usage, making it an ideal solution for urban developments where available parking space is limited.
Typical Applications
The DFPP-I Reinforced Four Post Parking Lift is widely used in:
- Apartment and condominium parking projects
- Residential developments
- Commercial parking garages
- Car dealerships
- Vehicle storage centers
- Fleet parking facilities
- Mixed-use developments
- Urban parking expansion projects
Its reinforced structure makes it particularly suitable for installations requiring frequent daily operation and long-term reliability.
Safety Design & Structural Advantages
Safety and durability remain the core design principles of the DFPP-I Series.
Every lift incorporates multiple protection systems, including:
- 24V electrical unlocking system
- Mechanical anti-fall safety locks at multiple locking positions
- Hydraulic safety valves to prevent sudden platform descent
- Upper limit switches to prevent over-travel
- High-strength lifting cables with multiple safety factors
- Emergency stop controls
- Reinforced integrated column assemblies for improved structural stability
The upgraded structural design enhances overall rigidity while maintaining smooth lifting performance and reliable long-term operation.
Installation & Operation Notes
The DFPP-I is designed for efficient installation and straightforward daily operation.
Key installation advantages include:
- Pit-free installation on reinforced concrete floors
- Factory pre-engineered modular components
- Simplified column alignment through integrated welded assemblies
- Reduced installation time compared with conventional multi-unit systems
- Push-button electrical control for convenient operation
- Custom platform dimensions and lifting heights available
- Professional CAD layouts and foundation drawings provided
- Complete installation guidance and long-term remote technical support
The reinforced integrated structure not only improves installation efficiency but also contributes to greater operational stability throughout the service life of the equipment.
Frequently Asked Questions (FAQ)
Q1: What Is the DFPP-I Reinforced Four Post Parking Lift?
The DFPP-I Series is a reinforced three-level four post parking lift designed to park six vehicles within the footprint of two conventional parking spaces. Compared with the DFPP-2 Series, it features an upgraded integrated column structure that provides greater rigidity, improved installation accuracy, and enhanced long-term stability.
Q2: How Many Vehicles Can the DFPP-I Series Park?
The DFPP-I accommodates a total of six vehicles:
- Ground Level: 2 vehicles
- Middle Platform: 2 vehicles
- Top Platform: 2 vehicles
This high-density configuration significantly increases parking capacity without requiring additional land.
Q3: What Makes the DFPP-I Different from the DFPP-2?
The parking capacity remains the same, but the structural design is upgraded.
The DFPP-I features:
- Integrated welded column assemblies
- Eight columns of identical height
- Greater structural rigidity
- Improved installation efficiency
- Better long-term stability
- Cleaner overall appearance
It is the reinforced version of the proven DFPP-2 parking system.
Q4: What Types of Vehicles Can the DFPP-I Accommodate?
The DFPP-I is suitable for most passenger cars, SUVs, pickup trucks, and light commercial vehicles.
Different platform capacities and dimensions can be customized according to your project requirements.
Q5: Does the DFPP-I Require a Pit?
No.
The DFPP-I is designed for pit-free installation on reinforced concrete floors, reducing civil construction costs and simplifying installation.
Q6: What Safety Protection Systems Are Included?
The DFPP-I incorporates multiple safety features, including:
✔ Mechanical anti-fall safety locks
✔ Hydraulic safety valves
✔ 24V electrical unlocking system
✔ Upper limit switches
✔ Emergency stop function
✔ High-strength lifting cable system
✔ Reinforced integrated column assemblies
These systems ensure safe and reliable operation throughout every lifting cycle.
Q7: Can the DFPP-I Be Customized?
Yes.
We provide complete customization, including:
- Platform dimensions
- Lifting height
- Load capacity
- Power supply
- Control system
- Surface treatment
- Equipment color
Professional CAD layouts and engineering drawings are provided for every project.
Q8: Can the DFPP-I Be Installed Outdoors?
Yes.
Optional outdoor protection includes:
- Hot-dip galvanized finish
- Heavy-duty powder coating
- Enhanced anti-corrosion treatment
The recommended surface treatment depends on the local climate and installation environment.
Q9: Can I Receive CE Documents Before Ordering?
Yes.
Upon request, we can provide available CE certificates, technical documentation, engineering drawings, and relevant test reports to support project evaluation before order confirmation.
Q10: What Technical Support Do You Provide?
Our engineering team provides complete technical support, including:
- CAD layout drawings
- Foundation drawings
- Installation guidance
- Operation manuals
- Spare parts supply
- Remote technical assistance
- Long-term after-sales support
We work closely with distributors, contractors, and project owners to ensure smooth installation and reliable long-term operation.
