6 Custom Triple Stacker Parking Lifts for an Australian Customer

The customer purchased 6 units of TFPP triple stacker parking lifts for his parking and vehicle storage project in Melbourne, Australia.

Each TFPP system can accommodate three vehicles vertically in one parking space, significantly increasing parking capacity without expanding the building footprint.

For this project, however, the customer needed more than a standard three-car parking lift.

Because the vehicles were relatively large, the customer requested customized dimensions to provide additional clearance and easier vehicle access.

Customized for Larger Vehicles

The main customizations included:

• Increased platform width
• Increased lifting height
• Customized equipment dimensions
• Heavy-duty configuration for larger vehicles
• Customized electrical and control requirements

The wider platform provides additional parking clearance, while the increased lifting height allows larger vehicles to be stored on different levels more comfortably.

This type of customization is particularly useful for customers operating car storage facilities, automotive businesses, private collections, and premium vehicle showrooms.

Why Choose a Triple Stacker Parking Lift?

A conventional parking space normally accommodates one vehicle.

A triple stacker parking lift uses vertical space to create three parking positions within approximately the footprint of one ground-level parking space.

For vehicle storage facilities, this can make a major difference.

Instead of continuously expanding the building or renting additional land, the available floor area can be used more efficiently through vertical parking.

The TFPP combines two four-post lifting structures to create a stable three-level parking configuration. The hydraulic lifting system provides smooth vertical movement, while mechanical safety locks and other safety devices secure the platforms during parking and storage.

Wider Platforms for Large Cars and SUVs

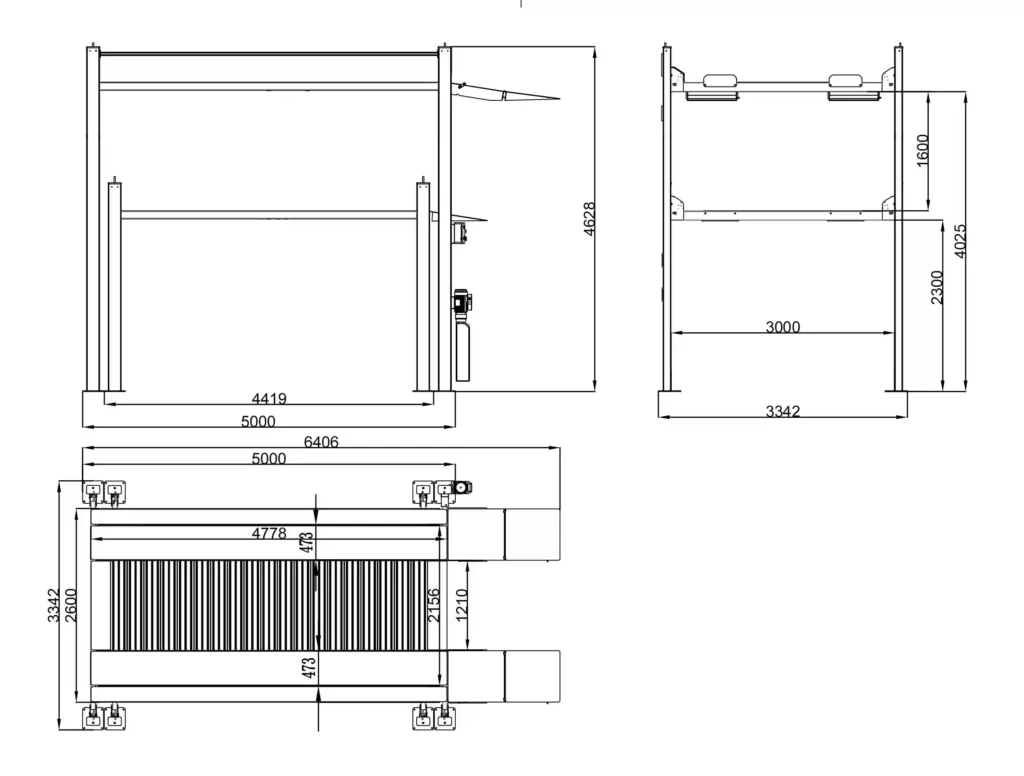

One of the most important requirements of this Australian project was the increased platform width.

Standard parking lifts are often designed around conventional passenger vehicles. However, many modern vehicles, SUVs, pickup trucks and performance cars require more space.

A wider parking platform can provide:

• Easier vehicle positioning
• More side clearance
• More comfortable access
• Better suitability for large vehicles
• Greater flexibility for different vehicle types

This is why parking lift dimensions should not simply be selected from a standard catalogue.

The equipment should be designed around the actual vehicle size, available building space and required lifting height.

SYRISON provides customized platform dimensions and lifting heights for TFPP projects according to customer requirements.

Increased Lifting Height for Better Vehicle Clearance

The customer also requested an increased lifting height.

This is especially important when a parking lift is being used for large SUVs, pickups or other taller vehicles.

The required lifting height depends on several factors, including:

• Vehicle height
• Platform spacing
• Building ceiling height
• Required access clearance
• Number of parking levels

For this Australian project, the lifting height was increased to suit the customer’s actual application rather than simply using the standard configuration.

This demonstrates an important advantage of a custom parking lift: the equipment can be adapted to the site instead of forcing the customer to adapt the site to a fixed standard product.
