PSH-L Multi-Level Hydraulic Parking Stacker
Product Introduction
The PSH-L Multi-Level Hydraulic Parking Stacker is a cost-effective mechanical parking system designed to maximize parking capacity through a simple vertical lifting structure.
Unlike conventional puzzle parking systems that combine lifting and horizontal sliding, the PSH-L Series operates using vertical lifting only. Vehicles are stacked on multiple levels within the same column, creating a compact parking solution with a simpler structure, lower maintenance requirements, and reduced investment costs.
During vehicle retrieval, ground-level vehicles can be driven out directly. To retrieve a vehicle parked on an upper platform, the vehicle parked beneath it must first be removed, allowing the platform to lower safely. This operating principle makes the PSH-L particularly suitable for residential buildings, vehicle storage facilities, car dealerships, and commercial projects where parking density is more important than independent vehicle access.
Powered by a reliable hydraulic lifting system and a heavy-duty steel structure, the PSH-L Series provides smooth operation, dependable safety, and long-term durability for both indoor and outdoor parking applications.
Main Features & Advantages
Vertical Lifting Structure
The PSH-L Series uses a hydraulic vertical lifting mechanism without horizontal sliding, resulting in a simpler structure and greater mechanical reliability.
High-Density Parking Solution
Multiple parking levels significantly increase parking capacity within a limited footprint, making the system ideal for projects where land is expensive or space is restricted.
Simple Mechanical Design
With fewer moving components than lift-and-slide parking systems, the PSH-L Series offers easier installation, reduced maintenance, and lower operating costs.
Hydraulic Lifting System
Hydraulic cylinders provide smooth, quiet, and stable lifting performance for reliable long-term operation.
Heavy-Duty Steel Construction
Manufactured from high-strength structural steel to ensure excellent rigidity, durability, and long service life.
Comprehensive Safety Protection
Standard safety features include:
- Mechanical anti-fall safety hooks
- Hydraulic overload protection
- Upper and lower limit switches
- Emergency stop button
- 24V low-voltage electrical control system
These multiple protection systems ensure safe and dependable daily operation.
Flexible Layout Design
The PSH-L Series can be customized according to project requirements, including:
- Number of parking spaces
- Number of columns
- Platform dimensions
- Lifting height
- Rated capacity
- Surface treatment
- Power supply
- Control system
Cost-Effective Parking Solution
By eliminating the horizontal sliding mechanism, the PSH-L Series reduces equipment complexity while providing a practical solution for projects that prioritize parking capacity over independent vehicle retrieval.
Typical Applications
- Apartment buildings
- Residential communities
- Commercial parking facilities
- Car dealerships
- Vehicle storage centers
- Fleet parking
- Office buildings
- High-density parking projects
CE Certification
The PSH-L Multi-Level Hydraulic Parking Stacker is supplied with a standard CE Declaration of Conformity for international markets.
Each system is manufactured under strict quality control procedures and complies with applicable European machinery safety requirements for mechanical parking equipment.
Technical documentation, electrical diagrams, operating manuals, and CE certification documents are available upon request to support international projects, customs clearance, and local compliance requirements.

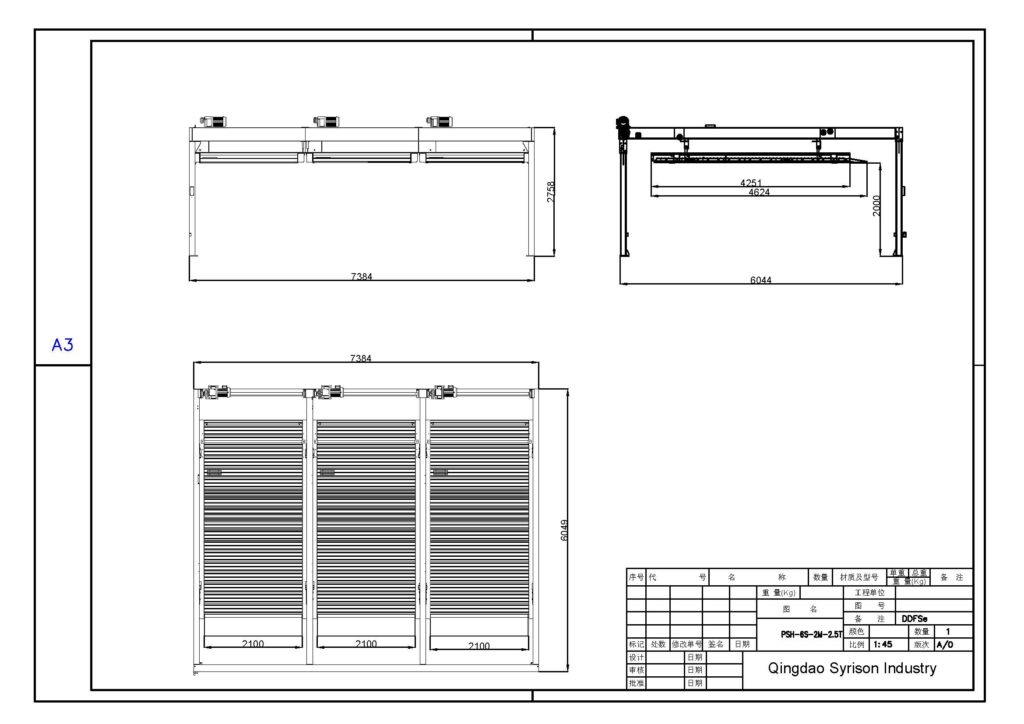

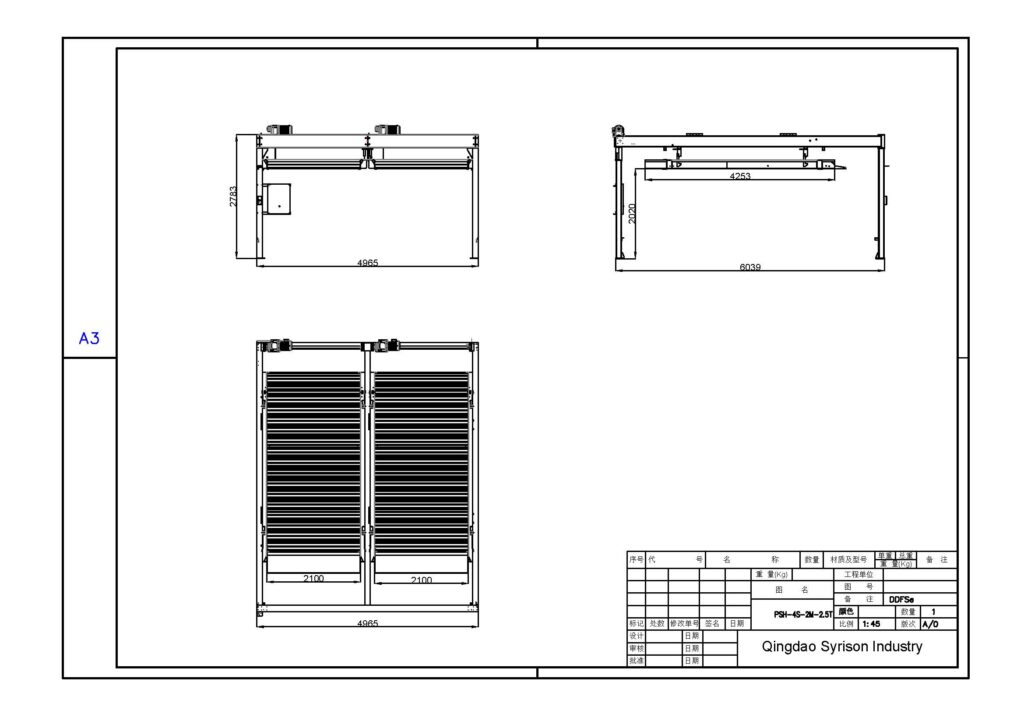

Size Drawing:
Data Sheet:
| Model | PSH-1 |
|---|---|
| Levels | 2 |
| Lifting capacity | 2000kg/2500kg |
| Available car length | 5300mm |
| Available car width | 1950mm |
| Available car height | 1550mm/2050mm |
| Power pack | 2.2Kw motor |
| Available voltage of power supply | 200V-480V, 3 Phase, 50/60Hz |
| Operation mode | Button & ID card |
| Operation voltage | 24V |
| Safety lock | Anti-falling hook |
| Rising / descending time | <35s |
| Finishing | Powdering coating&Hot Galvanized |

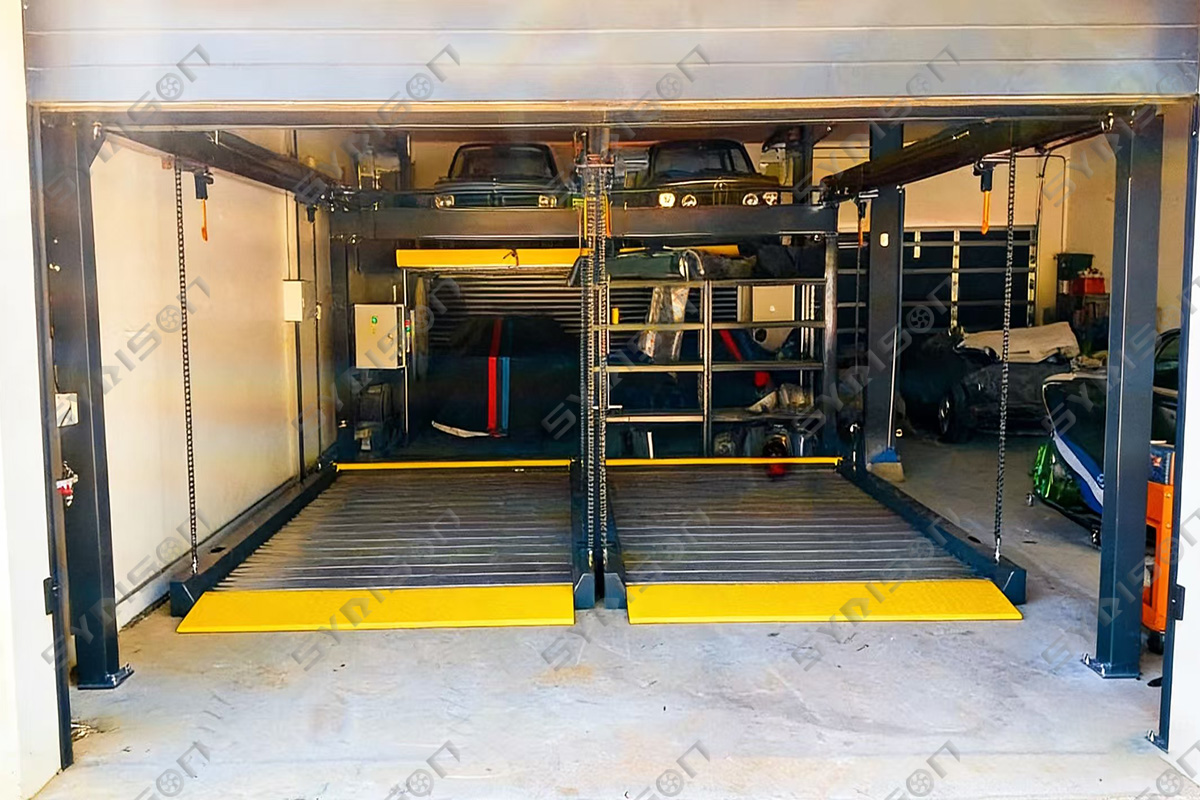

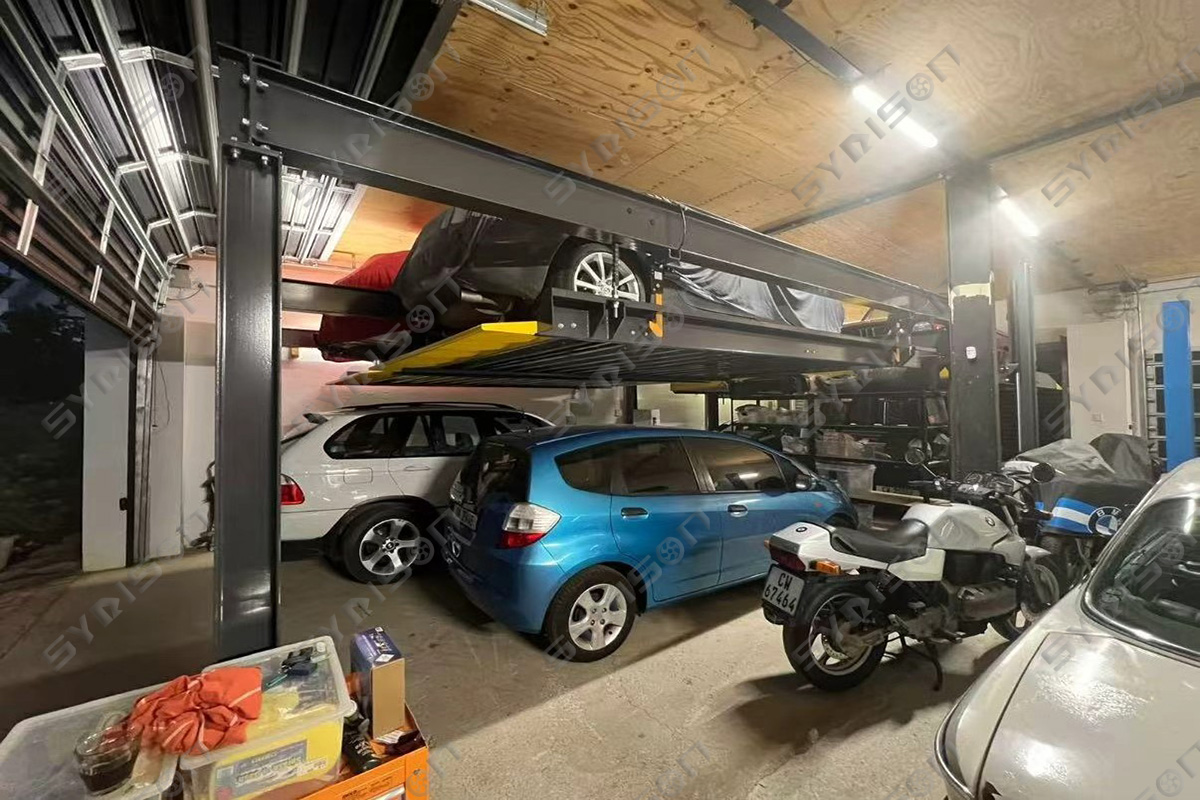

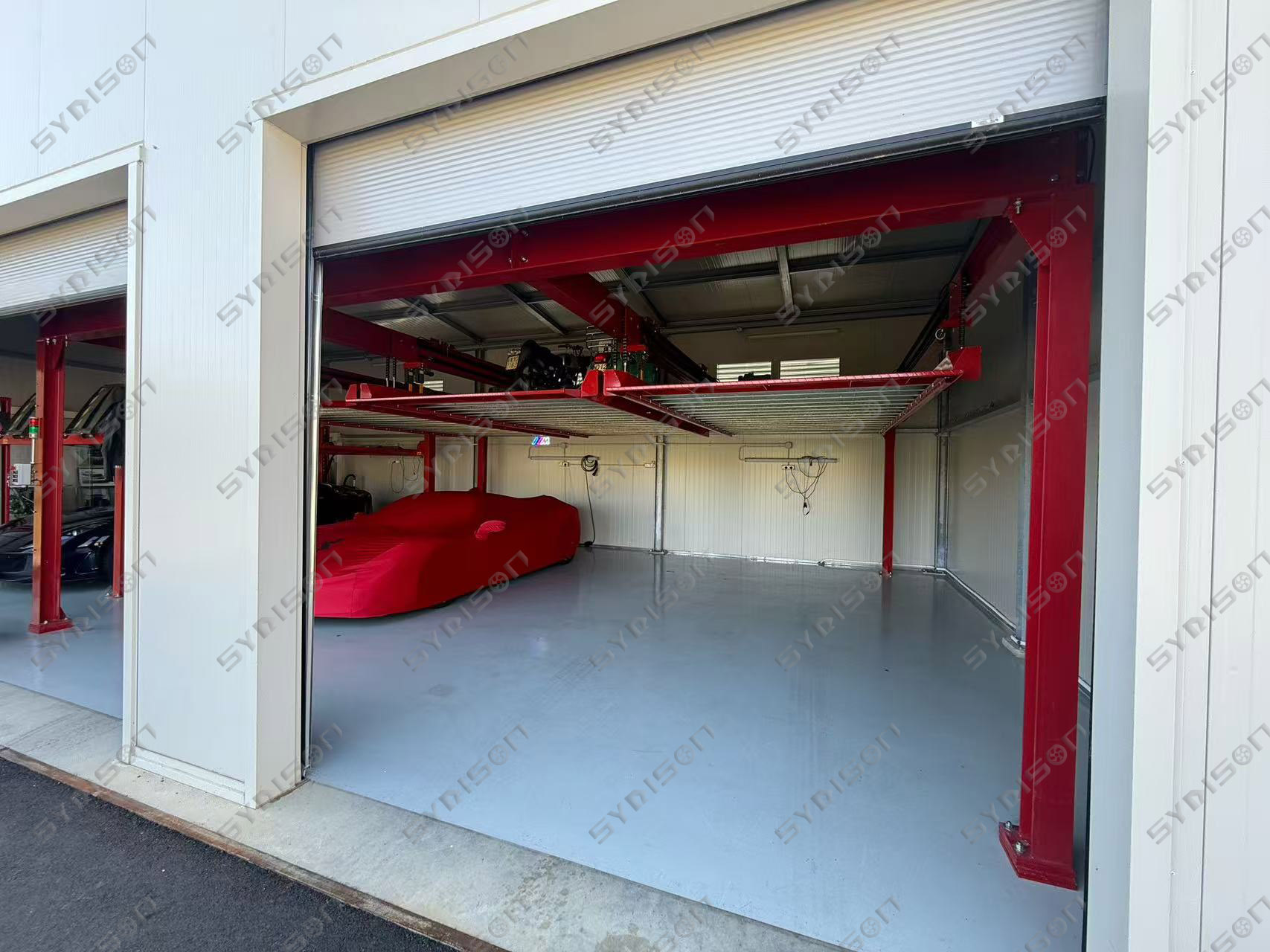

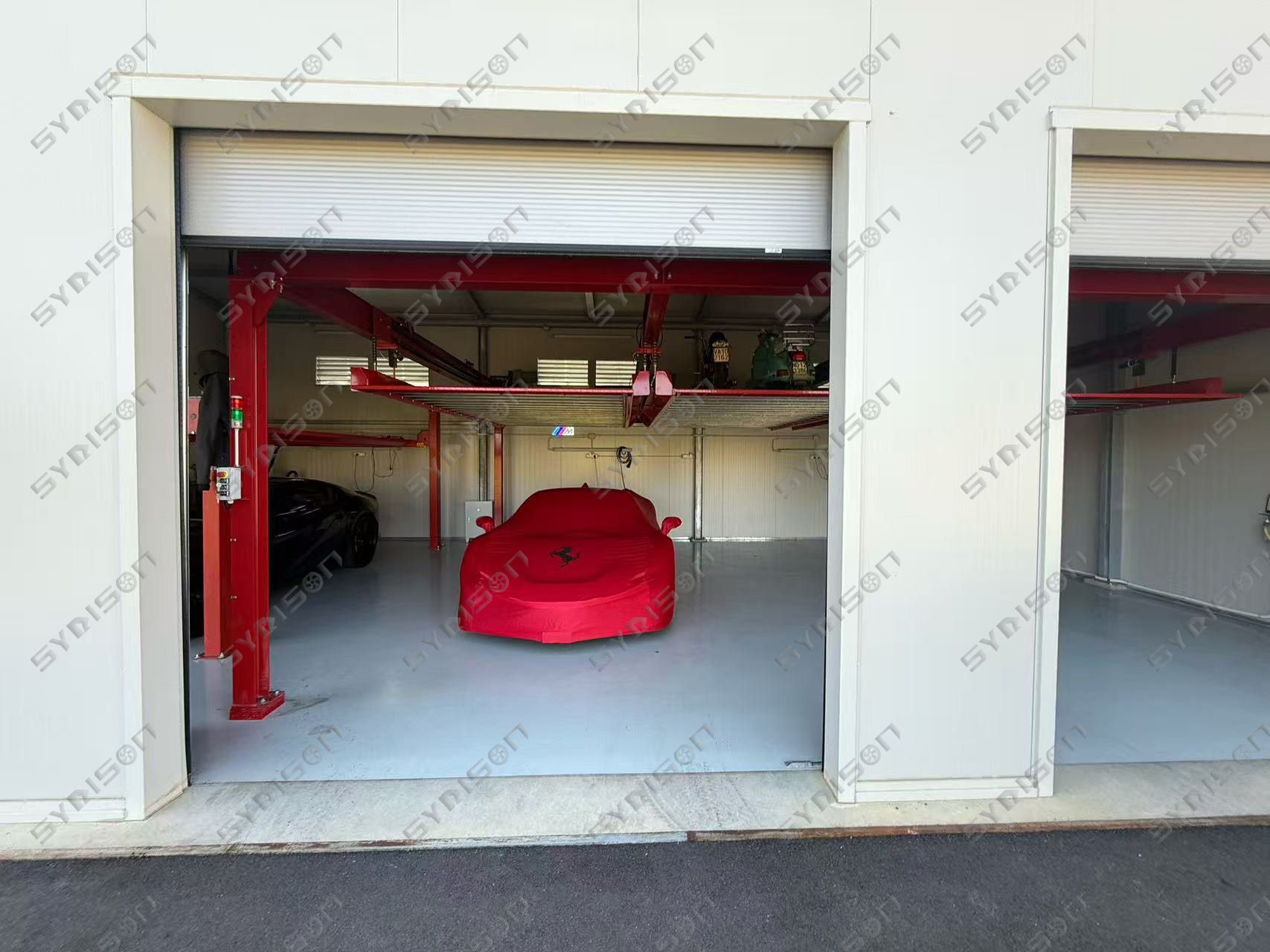

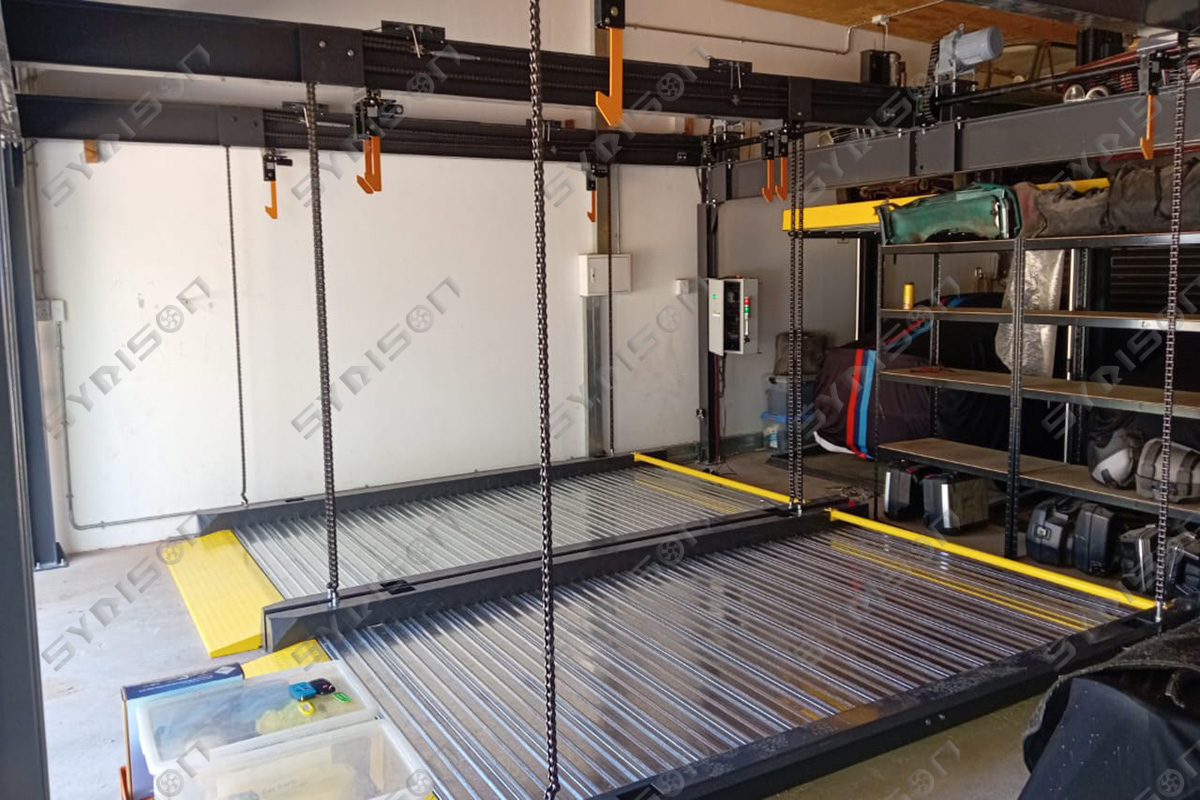

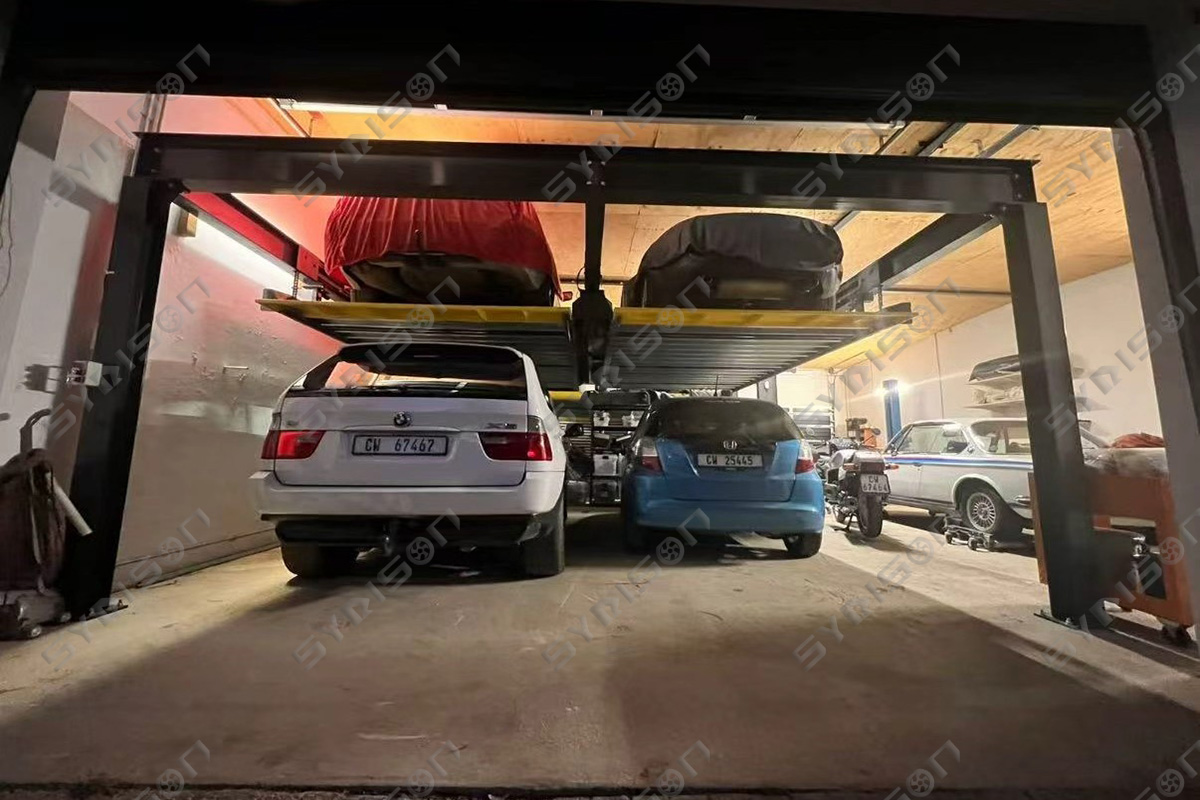

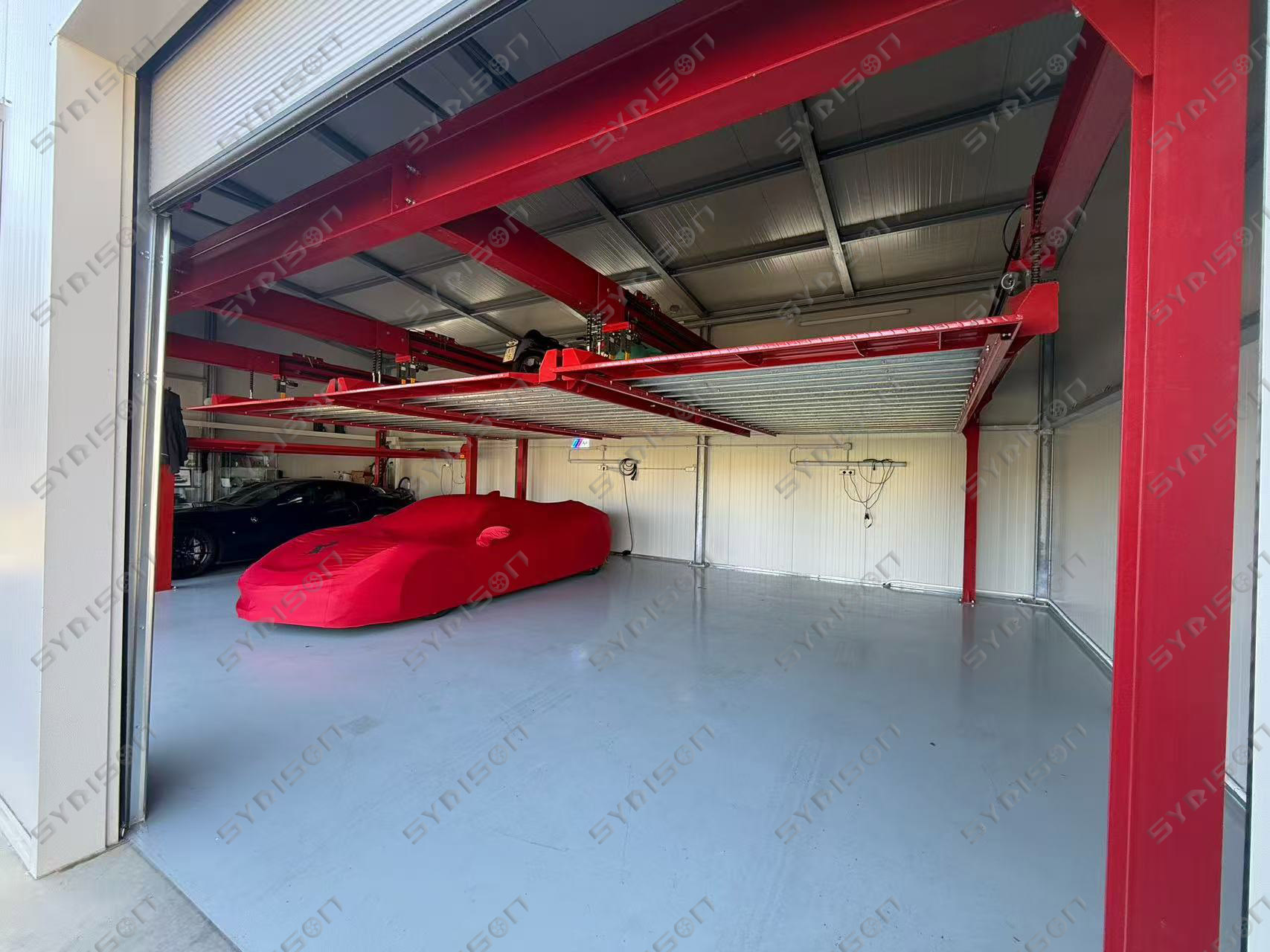

Real Pictures:
Video:
Engineering Design & Application Details of PSH-L Series
Vertical Stacking Design for Maximum Parking Density
The PSH-L Series is designed to maximize parking capacity by stacking vehicles vertically within multiple levels. Unlike lift-and-slide parking systems, every parking platform moves only in the vertical direction, resulting in a simpler mechanical structure and higher parking density.
This design is particularly suitable for projects where the number of parking spaces is the primary consideration and vehicles do not require completely independent access.
Simple Hydraulic Lifting System
The PSH-L Series is powered by a hydraulic lifting system that provides smooth, stable, and reliable vertical movement.
Compared with more complex automated parking systems, the hydraulic design offers several advantages:
- Smooth lifting and lowering
- Stable platform operation
- Low operating noise
- Reduced mechanical wear
- Easy maintenance
- Reliable long-term performance
The simplified lifting mechanism minimizes the number of moving parts, improving overall system reliability.
Efficient Parking Layout
The modular design allows multiple parking columns to be combined into various layouts according to project requirements.
Typical configurations include:
- 2-level parking systems
- Single-row layouts
- Double-row layouts
- Multiple-column installations
- Indoor parking garages
- Outdoor parking facilities with optional galvanized structures
Our engineers can customize the layout to maximize parking capacity while maintaining convenient vehicle circulation.
Vehicle Retrieval Principle
The PSH-L Series operates using a straightforward parking sequence.
Vehicles parked on the ground level can be driven away directly. To retrieve a vehicle stored on an upper platform, the vehicle parked directly beneath it must first be removed, allowing the upper platform to lower safely.
This operating method eliminates the need for horizontal sliding mechanisms, resulting in a simpler structure, lower maintenance costs, and improved long-term reliability.
Comprehensive Safety Protection
Safety is incorporated into every PSH-L parking system through multiple independent protection devices, including:
- Mechanical anti-fall safety hooks
- Hydraulic overload protection
- Upper and lower travel limit switches
- Emergency stop button
- 24V low-voltage electrical control system
- Reinforced heavy-duty steel frame
These safety features ensure stable operation and reliable vehicle protection throughout every lifting cycle.
Flexible Customization for Different Projects
Every parking project has unique requirements. The PSH-L Series can be customized to suit different applications, including:
- Parking capacity
- Number of columns
- Platform dimensions
- Lifting height
- Rated load capacity
- Power supply (200–480V, 3 Phase, 50/60Hz)
- Powder-coated or hot-dip galvanized finish
- Indoor or outdoor installation
- Button control or ID card access system
Our engineering team provides CAD layout drawings, foundation recommendations, and complete technical support before production to ensure the parking system perfectly matches your project requirements.
Frequently Asked Questions (FAQ)
Q1: What is the difference between the PSH-L Series and a lift-and-slide parking system?
The PSH-L Series uses vertical lifting only, while a traditional lift-and-slide parking system combines vertical lifting with horizontal sliding. Because the PSH-L eliminates the sliding mechanism, it offers a simpler structure, lower maintenance requirements, and a more economical solution for projects that prioritize parking capacity over independent vehicle access.
Q2: How many vehicles can the PSH-L Series accommodate?
The parking capacity depends on the project layout and the number of columns installed. Multiple modules can be combined to create a parking system that meets the required number of parking spaces.
Q3: What types of vehicles can the PSH-L Series accommodate?
The PSH-L Series is designed for most passenger vehicles, including sedans, SUVs, and light commercial vehicles within the rated platform capacity of 2,000 kg or 2,500 kg, depending on the selected model.
Q4: How are vehicles retrieved from the upper levels?
Ground-level vehicles can be driven away directly. To retrieve a vehicle parked on an upper platform, the vehicle parked directly beneath it must first be removed so the upper platform can be lowered safely.
Q5: Does the PSH-L Series require a pit?
No. The PSH-L Series is designed for surface-mounted installation on a reinforced concrete foundation and normally does not require a pit, reducing civil construction costs and simplifying installation.
Q6: What safety features are included?
The PSH-L Series is equipped with multiple safety protection systems, including:
- Mechanical anti-fall safety hooks
- Hydraulic overload protection
- Upper and lower limit switches
- Emergency stop button
- 24V low-voltage electrical control system
- Heavy-duty steel frame
These systems work together to ensure safe and reliable daily operation.
Q7: Can the PSH-L Series be customized?
Yes. We can customize:
- Number of parking spaces
- Number of columns
- Platform dimensions
- Lifting height
- Rated capacity
- Power supply
- Surface treatment
- Control system
- Indoor or outdoor installation
Customized CAD layout drawings are provided before production.
Q8: Is the PSH-L Series suitable for outdoor installation?
Yes. For outdoor applications, we can provide hot-dip galvanized steel structures or enhanced anti-corrosion surface treatments to ensure long-term durability in different climates.
Q9: What technical support do you provide?
We provide complete engineering support, including:
- CAD layout drawings
- Foundation drawings
- Installation manuals
- Electrical diagrams
- Remote installation assistance
- Spare parts supply
- Long-term after-sales service
Q10: Why choose the SYRISON PSH-L Series?
The SYRISON PSH-L Series combines high parking density, a simple hydraulic lifting mechanism, low maintenance costs, reliable safety protection, flexible customization, and professional engineering support, making it an economical solution for residential, commercial, and vehicle storage projects worldwide.
