Product Introduction

The CTT Hydraulic Car Turntable is a practical vehicle rotation system designed to help drivers safely turn vehicles in locations where maneuvering space is limited. By rotating the entire vehicle up to 360°, the turntable eliminates the need for repeated forward and reverse movements, making parking safer, faster, and more convenient.

Unlike conventional parking solutions that require large turning areas, the CTT Series allows vehicles to change direction while remaining stationary on the platform. This makes it an ideal solution for narrow driveways, underground garages, private villas, commercial buildings, car dealerships, showrooms, valet parking areas, and automated parking systems.

The system is powered by multiple synchronized electric drive motors, providing smooth, stable, and low-noise rotation. Various platform diameters, load capacities, platform materials, and control methods are available to accommodate everything from compact passenger cars to large SUVs and light commercial vehicles.

Every CTT car turntable is custom engineered according to your project requirements, ensuring optimal performance, safety, and seamless integration with your building layout.

Main Features & Advantages

Smooth 360° Vehicle Rotation

The CTT Series rotates vehicles through a full 360 degrees, allowing drivers to enter or leave parking spaces facing forward without complicated reversing maneuvers.

This greatly improves driving safety in confined areas.

Ideal for Narrow Garages & Driveways

The turntable eliminates the need for large turning circles, making it perfect for:

Narrow driveways
Underground garages
Basement parking
Residential villas
Luxury homes
Commercial buildings
Parking structures

Stable Electric Drive System

The platform is driven by high-quality electric motors working through a precision transmission system to provide:

Smooth rotation
Stable performance
Low operating noise
Long service life
Minimal maintenance

Reliable drive components ensure consistent performance even under frequent daily operation.

Heavy-Duty Load Capacity

The CTT Series is available with lifting capacities from 3,000 kg to 5,000 kg as standard, with customized solutions available for heavier vehicles when required.

Suitable for:

Sedans
SUVs
Pickup trucks
Luxury vehicles
Light commercial vehicles

Multiple Platform Sizes

Platform diameters can be customized according to vehicle size and installation space.

Typical diameters include:

4000 mm
5000 mm
6000 mm

Custom sizes are also available for special applications.

Multiple Surface Materials

Different platform finishes are available according to project requirements, including:

Steel checker plate
Aluminum checker plate
Stainless steel plate

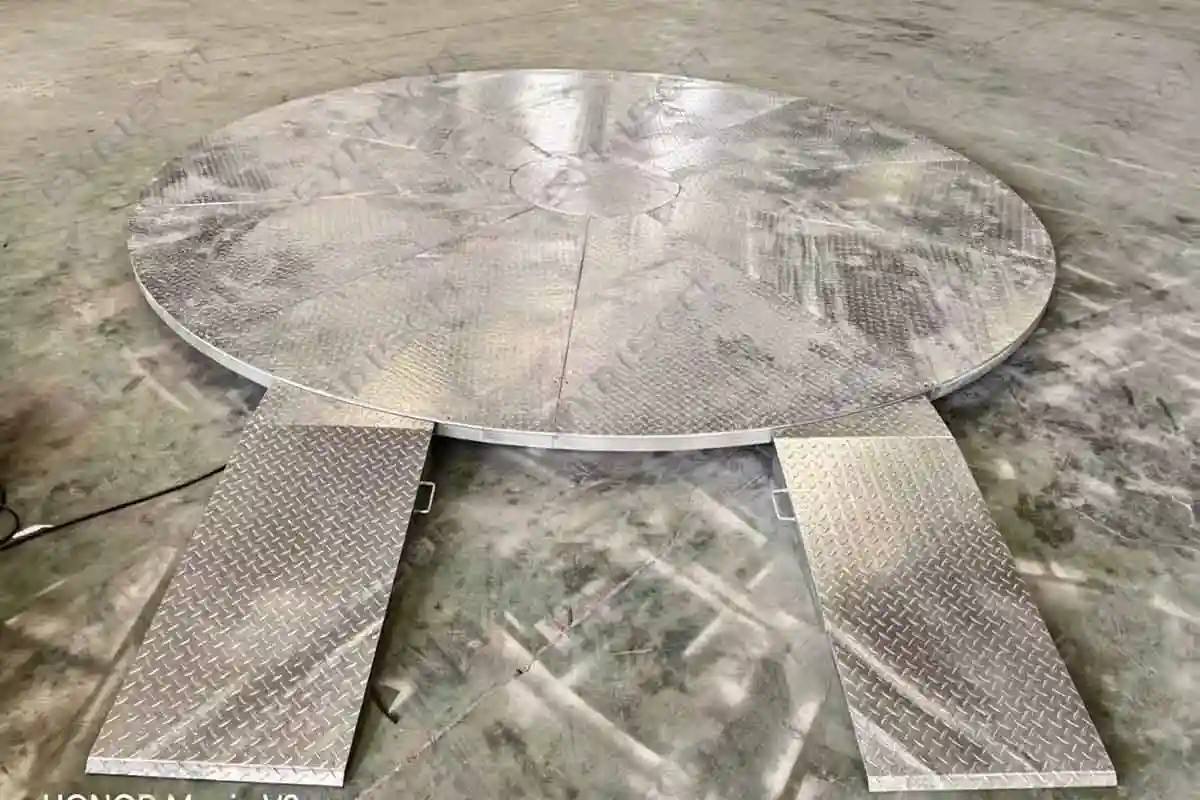

Outdoor installations can also be supplied with hot-dip galvanized protection for enhanced corrosion resistance.

Flexible Control Options

The turntable can be operated through:

Push-button control
Remote control
Automatic control
PLC integration
Smart parking management systems

Different control methods can be selected according to the project.

Fully Customized Design

Every CTT turntable is manufactured according to customer requirements, including:

Platform diameter
Load capacity
Rotation speed
Platform height
Surface finish
Color
Power supply
Indoor or outdoor installation

Our engineers provide complete CAD drawings before production to ensure perfect installation.

Typical Applications

The CTT Hydraulic Car Turntable is widely used wherever vehicles cannot safely turn around due to limited maneuvering space. By rotating the vehicle instead of requiring multiple forward and reverse movements, it improves parking efficiency, traffic flow, and driver safety.

Typical applications include:

Private villas and luxury homes
Residential garages with narrow driveways
Underground parking garages
Basement parking entrances
Commercial office buildings
Hotels and apartment complexes
Car dealerships and showrooms
Vehicle display platforms
Valet parking facilities
Automated parking systems
Auto workshops and service centers

The CTT Series is particularly suitable for projects where vehicles must always enter or exit facing forward, reducing the risk of collisions and making daily parking much more convenient.

Safety Design

Safety is a key consideration in every CTT Car Turntable.

The platform is engineered to provide smooth, controlled rotation while keeping the vehicle stable throughout the entire turning process. Multiple mechanical and electrical safety systems work together to ensure reliable long-term operation.

Standard safety features include:

Emergency stop button
Rotation limit protection
Low-speed controlled rotation
Anti-slip platform surface
Overload protection
Motor overload protection
Stable multi-motor drive system
Precision positioning control
Anti-corrosion structural design
Optional vehicle detection sensors

The heavy-duty steel platform distributes vehicle weight evenly, while the drive system maintains smooth rotation with minimal vibration and noise.

Each turntable is fully tested before shipment to verify rotation accuracy, electrical performance, load capacity, and safety functions.

Installation & Site Requirements

The CTT Series is designed for easy installation with minimal civil construction.

Depending on project requirements, the turntable can be installed either on the existing floor surface or recessed into the ground to achieve a flush finish with the surrounding pavement.

Typical installation requirements include:

Reinforced concrete foundation
Level installation surface
Adequate electrical power supply
Installation according to approved engineering drawings

Installation options include:

Surface-mounted installation
Recessed (pit-mounted) installation
Indoor installation
Outdoor installation
Powder-coated finish
Hot-dip galvanized finish for outdoor environments

Before production, BestCarLift provides complete technical documentation, including:

CAD layout drawings
Foundation drawings
Electrical wiring diagrams
Installation manuals
Operation manuals

Our engineering team also provides remote technical support to assist customers during installation and commissioning.

Why Choose BestCarLift

BestCarLift (SYRISON) has extensive experience in designing and manufacturing customized vehicle handling equipment for residential, commercial, and industrial projects worldwide.

Why customers choose our CTT Series:

Professional manufacturer of car turntables and parking equipment
Customized platform diameters and load capacities
Reliable electric drive system
Smooth, quiet, and stable rotation
Heavy-duty structural design
Indoor and outdoor installation solutions
Strict quality control before shipment
Complete CAD engineering support
Worldwide export experience
Long-term technical support and spare parts service

Every CTT Car Turntable is engineered to provide a safe, reliable, and space-saving vehicle turning solution tailored to your project requirements.

Looking for a Custom Car Turntable Solution?

Whether you need a turntable for a private garage, commercial building, showroom, or parking facility, our engineering team can design a customized solution based on your project requirements.

Simply provide:

Vehicle type
Vehicle weight
Platform diameter required
Installation location
Indoor or outdoor installation
Power supply
Site layout drawings (if available)

We will provide:

Customized turntable solution
Professional CAD layout drawings
Technical specifications
Competitive quotation
Complete installation guidance

👉 Contact BestCarLift today to receive a customized CTT Hydraulic Car Turntable solution for your project.

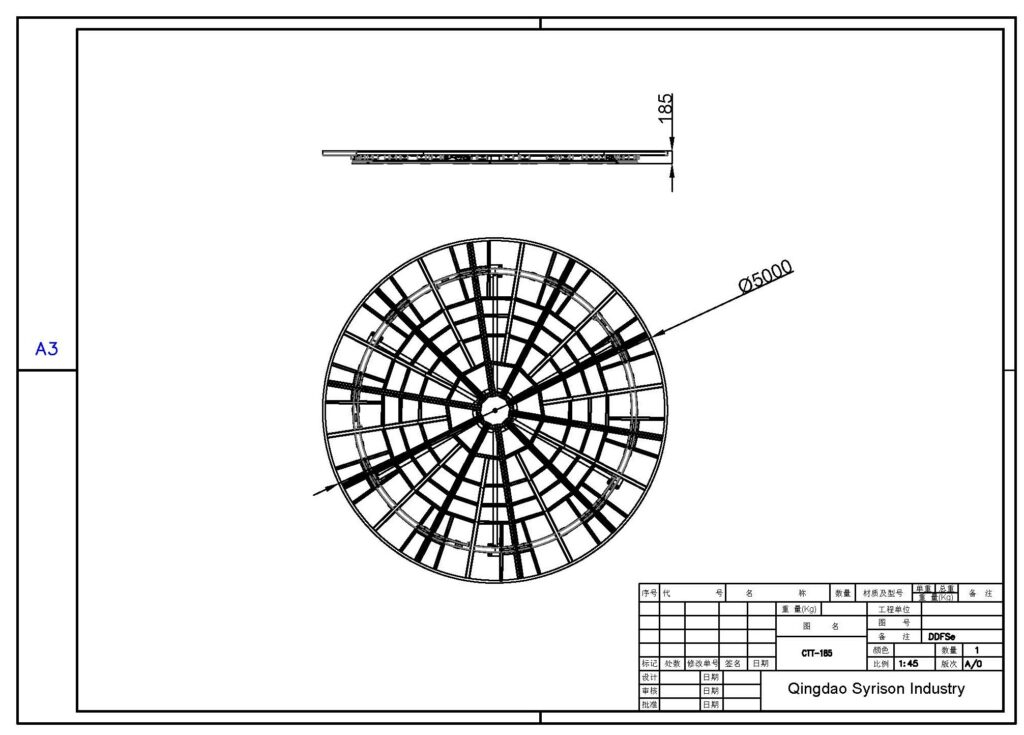

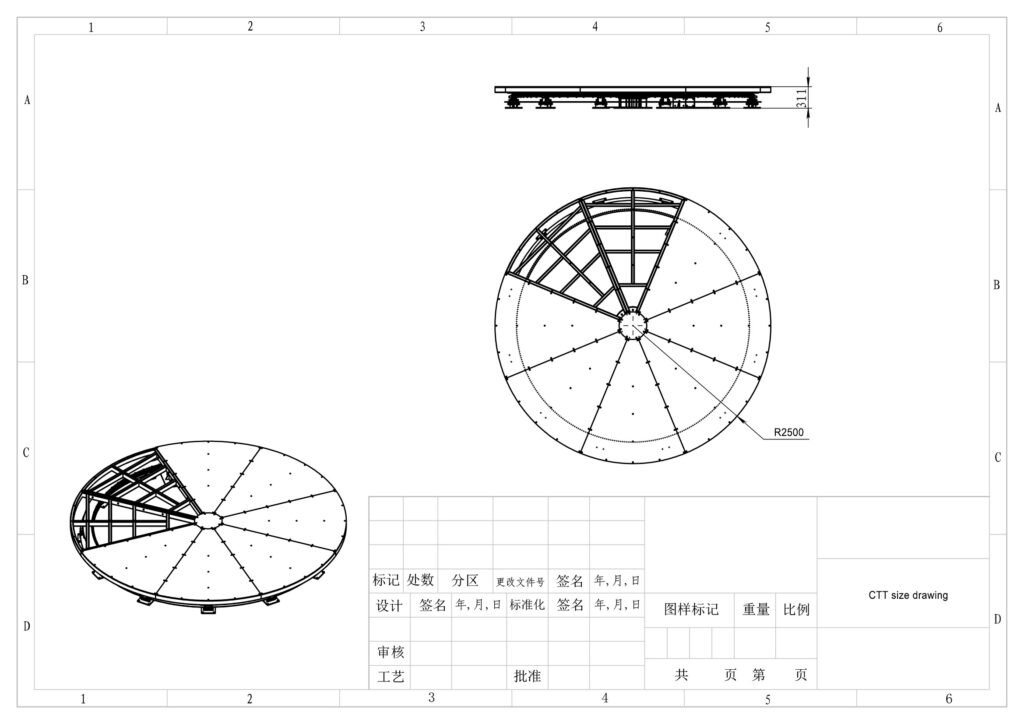

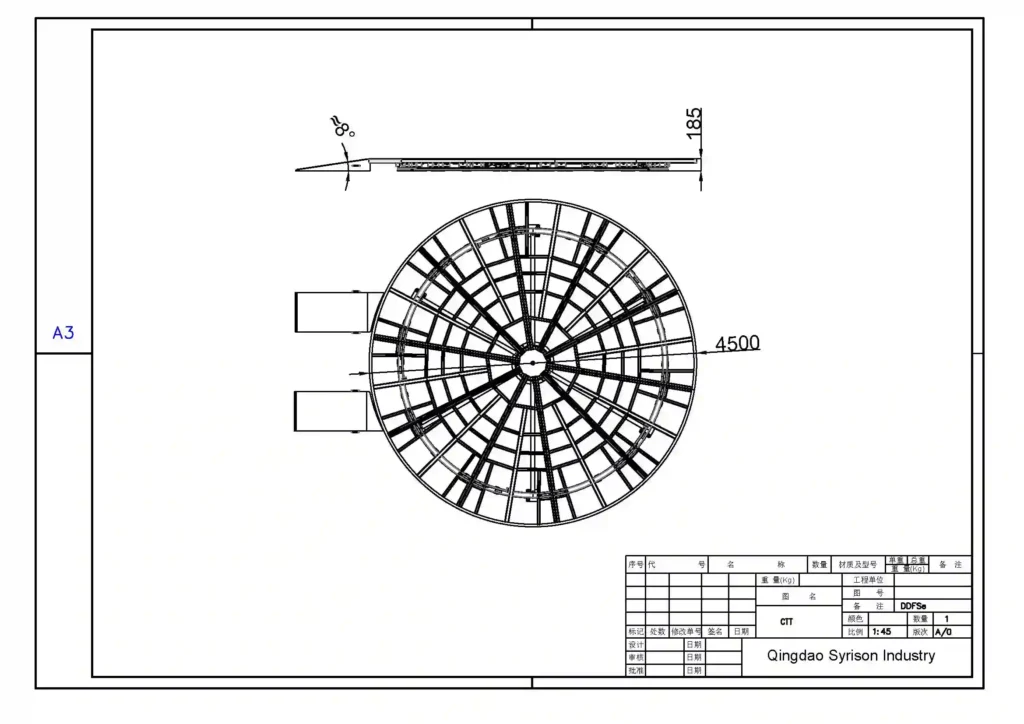

Size Drawing：

Data Sheet:

Model	CTT
Platform diameter (mm)	4000mm/5000mm/6000mm
Platform height (mm)	185mm/311mm
Loading capacity (kg)	3000kg/4000kg/5000kg
Drive mode	Electric motors
Motor quantity (pc)	4-6/1
Motor power (kw)	0.12
Turning speed (rpm)	0.2-2
Turning angle (°)	360
Surface finishing	Powder coating / Hot dip galvanized
Platform material	Steel checker plate / Aluminum checker plate / Stainless steel plate
Operation	Manual / remote
Power supply	110-480v, 50/60hz, 1/3 phases
Color	Bespoke

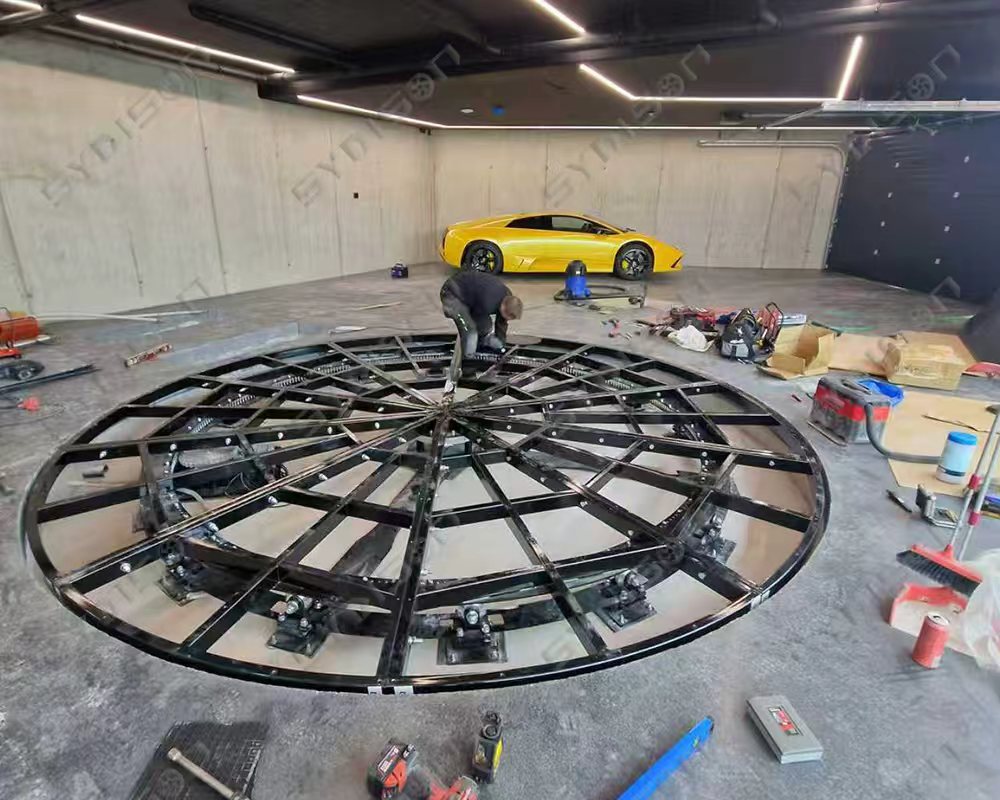

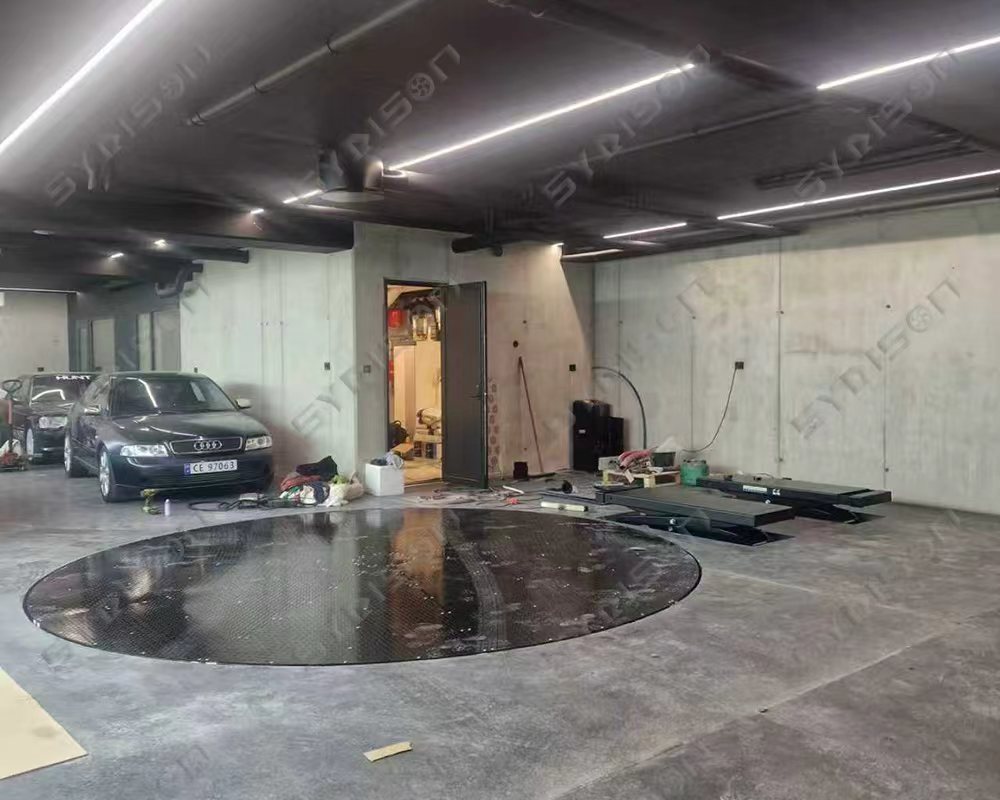

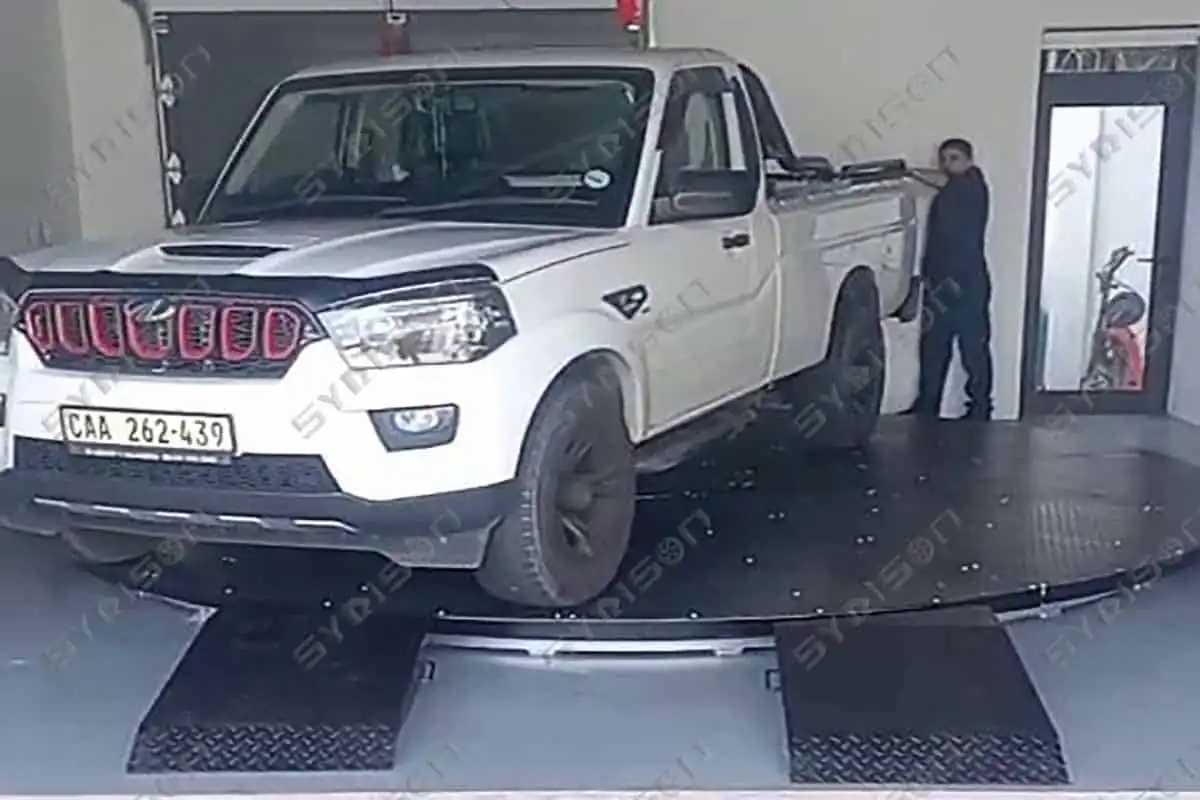

Projects

Video:

Engineering Design & Application Details of CTT Series

The CTT Hydraulic Car Turntable is engineered to solve one of the most common parking challenges—turning vehicles safely in confined spaces. By rotating the entire vehicle on a motor-driven platform, the system eliminates complicated reversing maneuvers and significantly improves vehicle accessibility in locations where traditional turning circles are unavailable.

With its compact design, customizable platform sizes, and reliable electric drive system, the CTT Series is widely used in residential, commercial, and public parking projects around the world.

Efficient 360° Vehicle Rotation

The CTT Series provides continuous 360-degree rotation, allowing vehicles to enter and leave parking spaces facing forward.

Instead of requiring multiple forward and reverse movements, drivers simply park on the platform and rotate the vehicle to the desired direction.

This improves:

Driving safety
Parking efficiency
Traffic flow
Driver convenience

The system is particularly valuable in locations where reversing is difficult or unsafe.

Electric Multi-Motor Drive System

The CTT uses a precision electric drive system designed for smooth, quiet, and reliable rotation.

Depending on the platform diameter and load capacity, the turntable can be equipped with one or multiple synchronized drive motors to provide stable torque and accurate positioning.

The drive system offers:

Smooth start and stop
Stable rotation speed
Low operating noise
Low maintenance requirements
Long service life

Reliable components ensure dependable operation even under frequent daily use.

Designed for Various Vehicle Types

The CTT Series is suitable for a wide range of passenger and light commercial vehicles.

Typical applications include:

Passenger cars
Luxury sedans
SUVs
Pickup trucks
Light commercial vehicles

Standard load capacities range from 3,000 kg to 5,000 kg, while larger capacities can be customized for special applications.

Flexible Platform Sizes

Every project has different space requirements.

The CTT Series can be manufactured with different platform diameters to accommodate various vehicle sizes and installation environments.

Typical platform diameters include:

4000 mm
5000 mm
6000 mm

Custom platform sizes are also available for oversized vehicles or unique architectural layouts.

Indoor and Outdoor Installation

The CTT can be installed in both indoor and outdoor environments.

Customers may choose:

Surface-mounted installation
Recessed (pit-mounted) installation

Outdoor installations are available with optional hot-dip galvanized structures and enhanced corrosion protection for long-term durability.

Fully Customized Engineering Solutions

Every CTT Car Turntable is designed according to the customer’s project requirements.

Customization options include:

Platform diameter
Load capacity
Platform height
Rotation speed
Platform material
Surface treatment
Color
Control method
Indoor or outdoor installation
Local power supply

Before manufacturing begins, our engineering team prepares detailed CAD drawings and technical documentation to ensure seamless installation and reliable operation.

Built for Long-Term Reliability

The CTT Series is manufactured using high-strength structural steel and premium industrial components to ensure stable operation under continuous use.

Before shipment, every unit undergoes comprehensive quality inspections, including:

Full-load rotation testing
Electrical system inspection
Motor performance testing
Rotation accuracy verification
Safety device testing
Emergency stop function testing
Structural inspection

With proper installation and routine maintenance, the CTT provides years of safe, smooth, and reliable vehicle rotation for residential, commercial, and industrial applications.

Frequently Asked Questions (FAQ)

Q1: What Is a Car Turntable Used For?

The CTT Series Car Turntable is designed to rotate vehicles in locations where there is insufficient space for conventional turning maneuvers.

It allows drivers to rotate their vehicles up to 360°, enabling forward entry and exit without repeated reversing. The system is widely used in private garages, underground parking facilities, commercial buildings, vehicle showrooms, and automated parking projects.

Q2: What Types of Vehicles Can the CTT Series Accommodate?

The CTT Series is suitable for a wide range of vehicles, including:

Passenger cars
Sedans
SUVs
Pickup trucks
Luxury vehicles
Light commercial vehicles

The platform diameter and load capacity can be customized according to your vehicle dimensions and project requirements.

Q3: What Platform Sizes Are Available?

Standard platform diameters include:

4000 mm
5000 mm
6000 mm

Custom diameters can also be manufactured for oversized vehicles or special installation environments.

Our engineers will recommend the most suitable platform size based on your vehicle dimensions and available space.

Q4: What Load Capacities Are Available?

Standard load capacities include:

3,000 kg
4,000 kg
5,000 kg

Higher capacities can be customized for special commercial or industrial applications.

Q5: Does the CTT Require a Pit?

Not necessarily.

The CTT Series supports both:

Surface-mounted installation
Recessed (pit-mounted) installation

Surface-mounted installation requires minimal civil work, while recessed installation allows the platform to sit flush with the surrounding floor for a cleaner appearance.

Our engineering team will recommend the best solution based on your project.

Q6: Can the Car Turntable Be Installed Outdoors?

Yes.

For outdoor installations, the CTT can be supplied with:

Hot-dip galvanized steel structure
Weather-resistant electrical components
Enhanced anti-corrosion coating
Drainage design for recessed installations

These options ensure reliable performance in various environmental conditions.

Q7: What Safety Features Are Included?

The CTT Series incorporates multiple safety protection systems, including:

Emergency stop button
Rotation limit protection
Overload protection
Motor overload protection
Anti-slip platform surface
Controlled rotation speed
Precision positioning system
Stable multi-motor drive system
Optional vehicle detection sensors

These features ensure safe, smooth, and reliable operation throughout every rotation cycle.

Q8: Can the CTT Be Customized?
