Vertical Rotary Parking System | PCX Series Ferris Wheel Parking System
Product Introduction
The PCX Series Vertical Rotary Parking System is a fully automated mechanical parking solution designed to maximize parking capacity while occupying an extremely small footprint. By rotating parking platforms in a continuous vertical loop—similar to a Ferris wheel—the system efficiently stores and retrieves vehicles with minimal land requirements, making it ideal for high-density urban environments.
Available in 4 to 11 levels, the PCX Series can accommodate 6 to 20 vehicles, depending on vehicle dimensions and project configuration. It is an excellent solution for residential developments, commercial buildings, office complexes, hospitals, hotels, and public parking facilities where land is limited and construction costs are high.
The system is driven by high-quality gear motors from internationally recognized manufacturers such as MingChun (Taiwan) or NORD (Germany), combined with a heavy-duty chain transmission system and an intelligent PLC control system. This combination delivers smooth operation, precise positioning, low maintenance requirements, and reliable long-term performance under continuous daily use.
Compared with conventional parking garages, the PCX Series dramatically increases parking capacity without requiring large buildings or deep underground construction. Its modular design, intelligent automation, and compact footprint make it one of the most practical high-density parking solutions for modern cities.
Main Features & Advantages
Ultra-Compact Vertical Rotary Structure
The Ferris wheel-style rotating design makes full use of vertical space while requiring only a small installation area. It is one of the most land-efficient mechanical parking systems available for urban projects.
Flexible Parking Capacity
The PCX Series can be configured according to project requirements with capacities ranging from 6 to 20 parking spaces.
Typical configurations include:
- 4 Levels – 6 Parking Spaces
- 5 Levels – 8 Parking Spaces
- 6 Levels – 10 Parking Spaces
- 7 Levels – 12 Parking Spaces
- 8 Levels – 14 Parking Spaces
- 9 Levels – 16 SUV Parking Spaces
- 11 Levels – Up to 20 Sedan Parking Spaces
Custom layouts are available based on vehicle size and site conditions.
Reliable Drive System
Powered by premium gear motors from internationally recognized manufacturers such as MingChun (Taiwan) or NORD (Germany), together with a heavy-duty chain transmission system, the PCX Series provides smooth rotation, high transmission efficiency, low noise, and outstanding durability.
Intelligent PLC Control
The advanced PLC control system automatically manages platform rotation and vehicle positioning, providing fast, accurate, and reliable vehicle retrieval with simple push-button or IC card operation.
Fast Vehicle Retrieval
Optimized control logic minimizes waiting time by automatically rotating the shortest path to the requested vehicle.
Typical retrieval time ranges from 45 to 85 seconds, depending on the vehicle position.
Heavy-Duty Steel Structure
Manufactured from high-strength structural steel with precision fabrication, the system provides exceptional rigidity, stability, and long service life even under continuous commercial operation.
Multiple Safety Protection Systems
The PCX Series integrates comprehensive safety devices, including:
- Mechanical anti-fall protection
- Overload monitoring
- Position sensors
- Emergency stop buttons
- Chain protection system
- Vehicle detection devices
- Automatic fault diagnosis
- Safety access doors
- PLC intelligent monitoring
These features ensure safe and reliable operation throughout every parking and retrieval cycle.
Indoor & Outdoor Installation
The PCX Series is designed for both indoor and outdoor installation. To ensure long-term durability in outdoor environments, the steel structure is protected by a heavy-duty industrial painting system rather than powder coating. Due to the overall size of the Vertical Rotary Parking System, the complete steel structure is not suitable for full hot-dip galvanizing. Instead, SYRISON applies a six-layer protective coating system consisting of two coats of epoxy zinc-rich primer, two coats of intermediate protective paint, and two coats of UV-resistant finish paint. This advanced painting system provides excellent resistance to corrosion, moisture, weathering, and ultraviolet exposure, ensuring reliable long-term performance in outdoor applications. For additional protection, an optional roof canopy manufactured from galvanized steel can be installed to reduce direct exposure to rain and sunlight, further extending the service life of the equipment.
Typical Applications
The PCX Series Vertical Rotary Parking System is widely used in projects where land is limited but parking demand is high. Its compact footprint and fully automated operation make it an ideal solution for both new developments and existing properties requiring parking expansion.
Typical applications include:
- Residential apartment buildings
- Commercial office buildings
- Hotels and mixed-use developments
- Hospitals and medical centers
- Shopping malls and supermarkets
- Government buildings
- Public parking facilities
- Transit stations and park-and-ride projects
- Vehicle storage centers
- Urban redevelopment projects
Safety Design Concept
Safety is the highest priority in the design of the PCX Series. Every parking and retrieval cycle is automatically monitored by the PLC control system to ensure smooth, accurate, and reliable operation.
The system incorporates multiple safety protection devices, including mechanical anti-fall mechanisms, overload protection, position sensors, emergency stop buttons, chain monitoring devices, vehicle presence detection, safety doors, and automatic fault diagnosis.
Only after all safety conditions are confirmed will the system begin operation, effectively protecting both vehicles and users while ensuring reliable long-term performance.
Installation & Site Requirements
The PCX Series is designed with a modular steel structure for efficient installation and long-term reliability.
Installation requirements include:
- Suitable for indoor or outdoor installation
- Reinforced concrete foundation
- Three-phase power supply (customized for local standards)
- No deep excavation required
- Compact footprint with minimal land occupation
- Easy maintenance access
- Complete installation drawings and engineering guidance provided before shipment
Our engineering team provides foundation drawings, electrical layouts, installation manuals, and remote technical support to ensure successful project implementation.
Why Choose Syrison PCX Vertical Rotary Parking System
- Over 18 years of experience in mechanical parking equipment manufacturing
- Fully automated high-density parking solution
- Extremely small installation footprint
- Configurations from 6 to 20 parking spaces
- Intelligent PLC control with automatic vehicle retrieval
- Reliable drive systems using internationally recognized components
- Fast installation with modular construction
- Indoor and outdoor installation options
- Complete engineering design and CAD layout support
- Worldwide project experience and professional after-sales service
Looking for a High-Density Automated Parking Solution?
Share your project information with our engineering team, including:
- Available installation area
- Required parking capacity
- Vehicle dimensions
- Indoor or outdoor installation
- Local power supply
- Project drawings (if available)
We will provide:
- Customized PCX parking system layout
- CAD drawings and foundation recommendations
- Technical specifications
- Professional quotation
- Complete engineering support from design to installation
👉 Contact Syrison today to discuss your Vertical Rotary Parking System project.

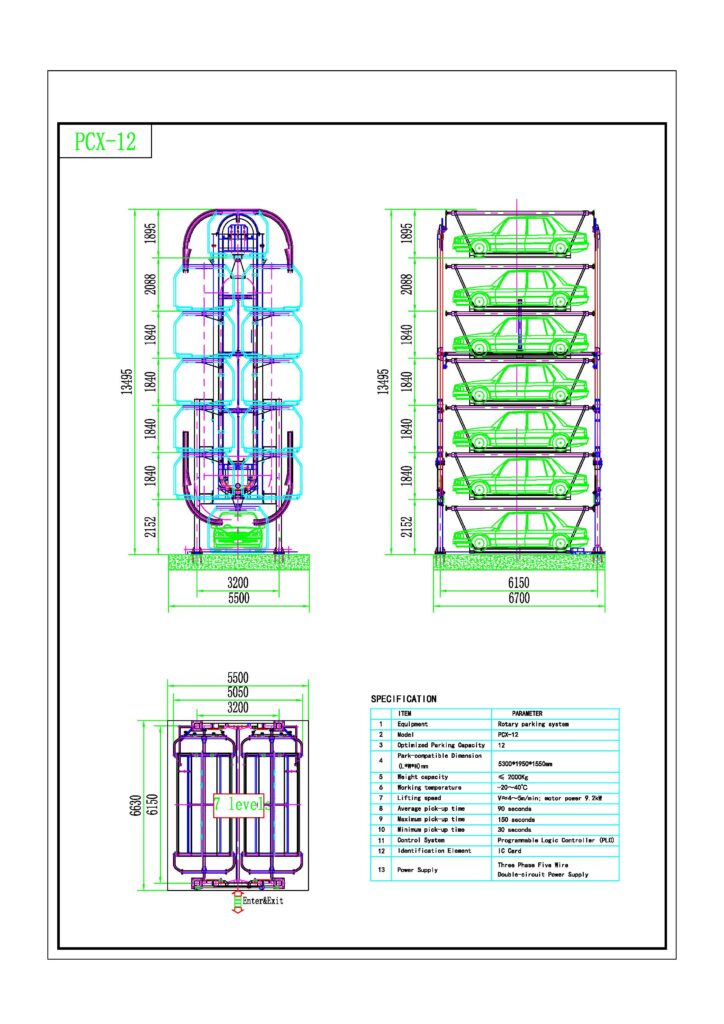

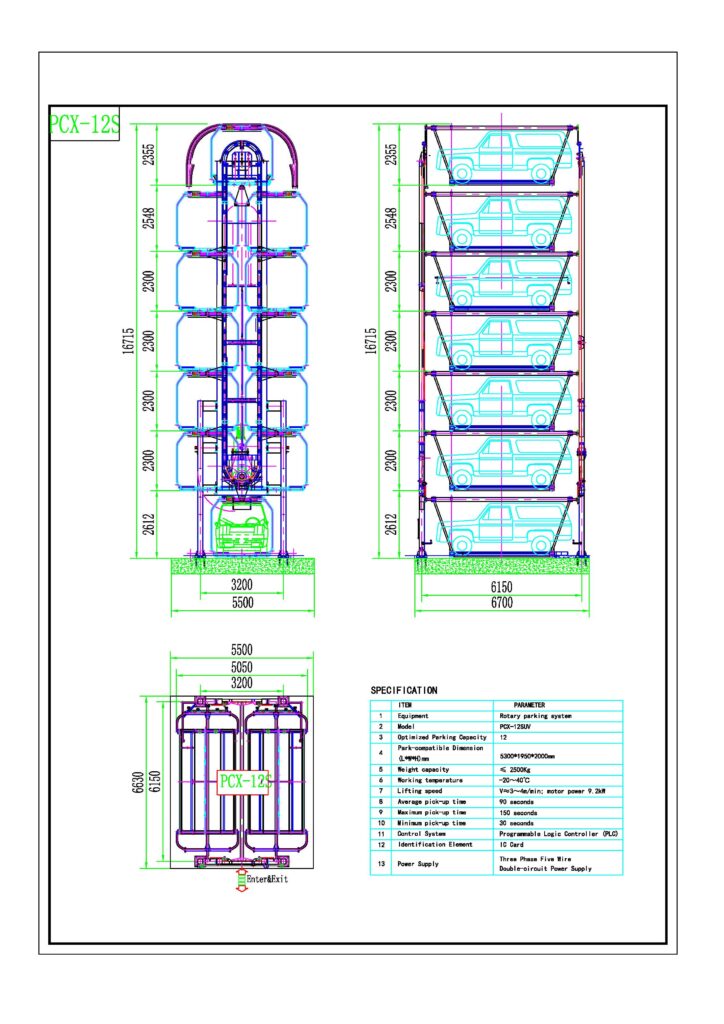

Size Drawing：
Data Sheet:
| Model | PCX |
| Vehicle type | 5300*1950*1550mm*2500kg/5300*1950*2000mm*2500kg |
| Capacity/Layers | 4--11 layer |
| Retrieval time | 45-85S/Maximum clearing time 15 min |
| Rated speed | 4.0-6.0/min |
| Lifting method | Motor+Chain |
| Control way | PLC system |
| Operation | IC card+keys |
| Power supply | 100-480V, 3P, 50/60Hz |
| Motor power | 7.5kw |

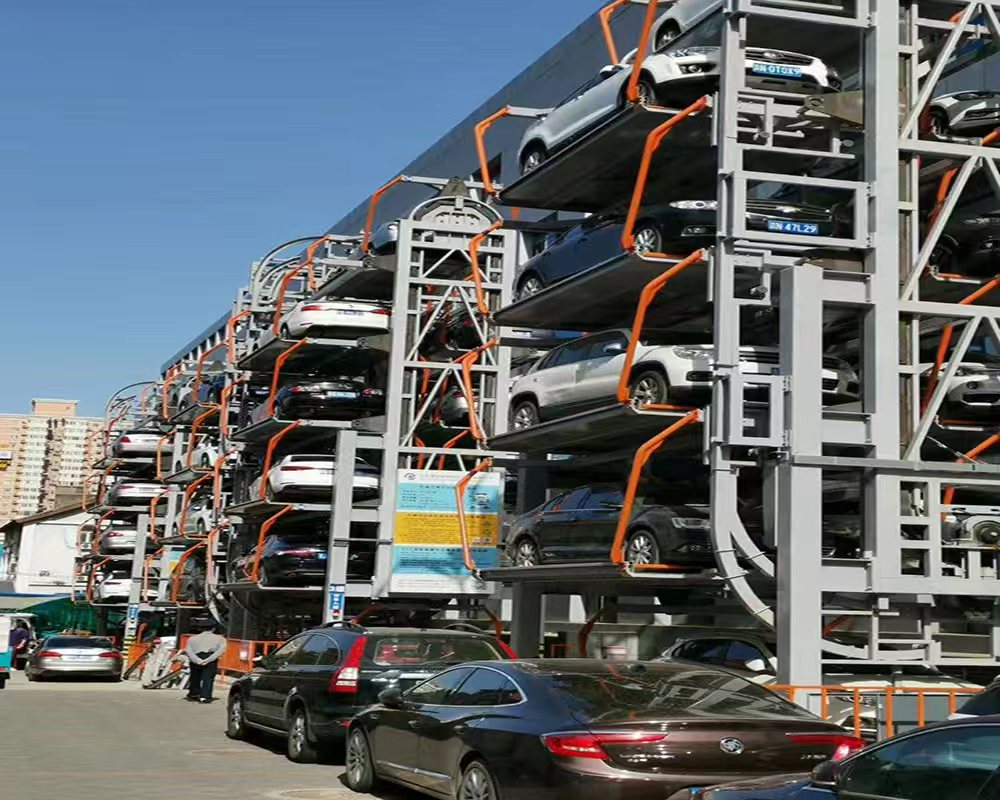

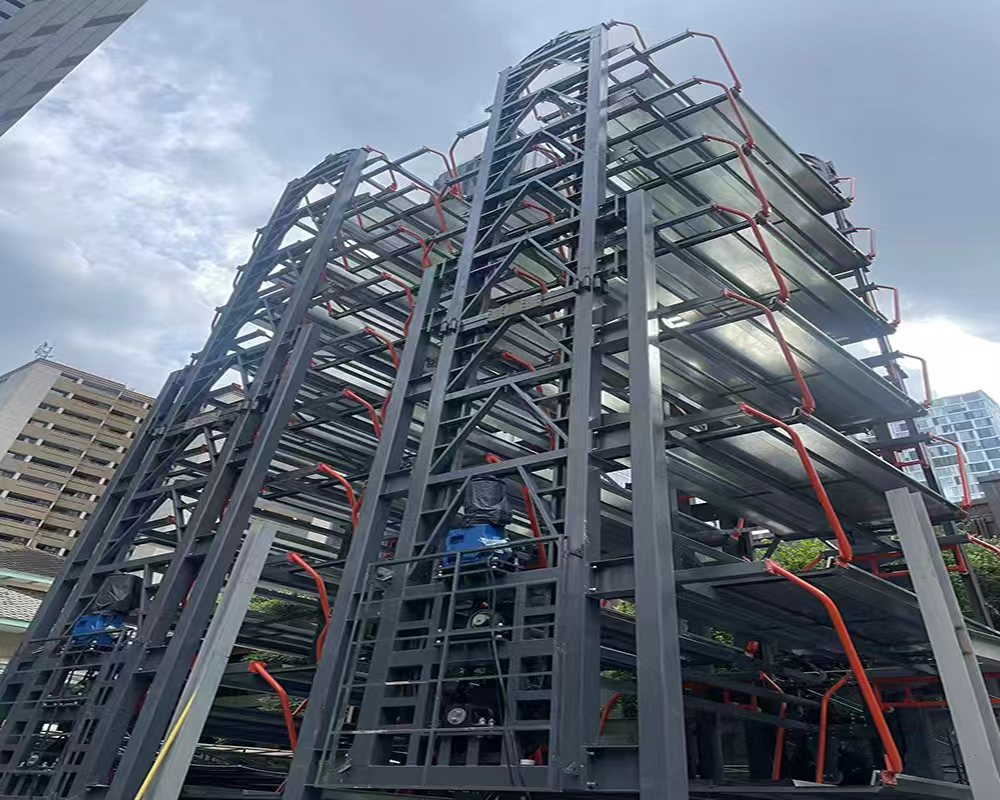

Projects:
Video:
Engineering Design & Application Details of PCX Series
The PCX Series Vertical Rotary Parking System is designed for projects where maximum parking capacity must be achieved within an extremely limited footprint. Unlike traditional parking garages or puzzle parking systems, the PCX rotates all parking platforms vertically in a continuous loop, allowing vehicles to be stored and retrieved automatically with minimal land occupation.
Its modular steel structure can be configured from 4 to 11 levels, accommodating 6 to 20 vehicles depending on vehicle dimensions and project requirements. Compared with conventional parking solutions, the PCX requires significantly less ground area while maintaining excellent parking efficiency.
The system is powered by high-quality gear motors from internationally recognized manufacturers such as MingChun (Taiwan) or NORD (Germany), combined with a heavy-duty chain transmission system to ensure smooth rotation, accurate positioning, and reliable long-term operation.
An intelligent PLC control system continuously monitors the operating status of every platform, coordinating vehicle movement while preventing incorrect operation. Multiple sensors and safety devices ensure each parking and retrieval cycle is completed safely and efficiently.
The PCX Series is especially suitable for projects where land value is high and construction space is extremely limited, providing an excellent balance between parking density, operating efficiency, and investment cost.
Typical Engineering Applications
- Urban residential developments
- Commercial office buildings
- Shopping malls
- Hotels
- Hospitals
- Government projects
- Public parking stations
- Transit hubs
- Schools and universities
- Mixed-use developments
Frequently Asked Questions (FAQ)
Q1: What is the PCX Vertical Rotary Parking System?
The PCX Series is a fully automated vertical rotary parking system that stores vehicles in a continuous Ferris wheel-style structure, maximizing parking capacity while occupying a very small footprint.
Q2: How does the PCX system work?
After a vehicle is parked at the entrance platform, the PLC control system automatically rotates the parking structure until the selected parking space reaches its storage position. When retrieval is requested, the system rotates the shortest path to deliver the vehicle back to the entrance.
Q3: How many vehicles can the PCX Series accommodate?
Depending on the project layout, the PCX Series can accommodate from 6 to 20 vehicles, with configurations ranging from 4 to 11 levels.
Q4: What types of vehicles can the PCX system accommodate?
The PCX Series is designed for standard passenger vehicles, including:
- Sedans
- SUVs
- Electric vehicles
Each parking platform supports up to 2,500 kg.
Q5: Why choose a Vertical Rotary Parking System?
Compared with conventional parking garages, the PCX Series offers:
- Extremely small installation footprint
- High parking density
- Fully automated operation
- Fast vehicle retrieval
- Lower land costs
- Attractive architectural appearance
- Low operating and maintenance costs
Q6: Is the PCX suitable for outdoor installation?
Yes. The PCX Series is suitable for both indoor and outdoor installation. Optional hot-dip galvanizing is available for coastal or highly corrosive environments.
Q7: What safety systems are included?
The PCX Series incorporates multiple safety protection systems, including:
- Mechanical anti-fall devices
- Overload protection
- Position sensors
- Emergency stop buttons
- Chain monitoring
- Safety access doors
- Vehicle detection sensors
- PLC intelligent monitoring
Q8: Can the PCX system be customized?
Yes. We can customize:
- Number of parking levels
- Parking capacity
- Vehicle dimensions
- Entrance direction
- Electrical configuration
- Surface treatment
- Equipment color
- Intelligent access systems
Q9: What control options are available?
Standard control includes:
- PLC control system
- Push-button operation
- IC card access
Optional features include:
- Touch screen
- License plate recognition
- Remote monitoring
- Cloud parking management
Q10: What technical support does Syrison provide?
Our engineering team provides complete project support, including:
- Parking layout design
- CAD drawings
- Foundation drawings
- Electrical diagrams
- Installation guidance
- Commissioning assistance
- Spare parts supply
- Remote technical support
- Long-term after-sales service
