FPP-C Full Platform Four Post Parking Lift
Product Introduction
The FPP-C Full Platform Four Post Parking Lift is a heavy-duty hydraulic parking solution designed to maximize parking capacity while providing a completely flat parking platform for superior vehicle support.
Unlike conventional four-post parking lifts that use two separate runways, the FPP-C features a full-width steel platform with integrated filler plates, creating a continuous parking surface. This design allows vehicles of different wheelbases and tire widths to park more easily while improving overall stability and convenience.
Powered by a hydraulic cylinder and chain synchronization system, the FPP-C delivers smooth lifting performance, excellent structural rigidity, and reliable long-term operation. It is an ideal solution for luxury residential garages, vehicle storage facilities, dealerships, car collectors, and commercial parking projects requiring a full platform design.
Main Features & Advantages
Full Platform Parking Surface
Unlike traditional runway-style parking lifts, the FPP-C features a continuous full-width steel platform that provides complete vehicle support and simplifies parking.
Hydraulic Cylinder & Chain Drive
The hydraulic lifting system combined with synchronized chains ensures smooth lifting, stable operation, and long service life.
Heavy-Duty Four-Post Structure
Four reinforced steel columns provide excellent structural rigidity and evenly distribute vehicle loads for maximum stability.
Up to 3,000 kg Lifting Capacity
Designed to accommodate sedans, SUVs, pickup trucks, electric vehicles, and many light commercial vehicles.
Improved Parking Convenience
The flat platform eliminates gaps between runways, making vehicle positioning easier and allowing greater flexibility for different wheelbases and tire sizes.
Multiple Safety Protection Systems
Equipped with mechanical safety locks, limit switches, hydraulic overload protection, emergency stop controls, and low-voltage electrical control for safe daily operation.
Corrosion-Resistant Construction
Manufactured from high-strength steel with durable powder coating. Optional hot-dip galvanizing is available for outdoor installations.
Customizable Configuration
Platform dimensions, lifting height, load capacity, electrical system, and surface treatment can all be customized to meet specific project requirements.
Typical Applications
- Luxury residential garages
- Private vehicle collections
- Car dealerships
- Vehicle storage facilities
- Commercial parking garages
- Automotive showrooms
- Fleet storage
- Indoor parking projects
CE Certification
The FPP-C Full Platform Four Post Parking Lift is supplied with a standard CE Declaration of Conformity for international markets.
Each lift is manufactured under a comprehensive quality management system and complies with applicable European machinery safety requirements for parking equipment.
Technical documents, operating manuals, electrical diagrams, and CE documentation are available upon request to support international projects, customs clearance, and local compliance requirements.

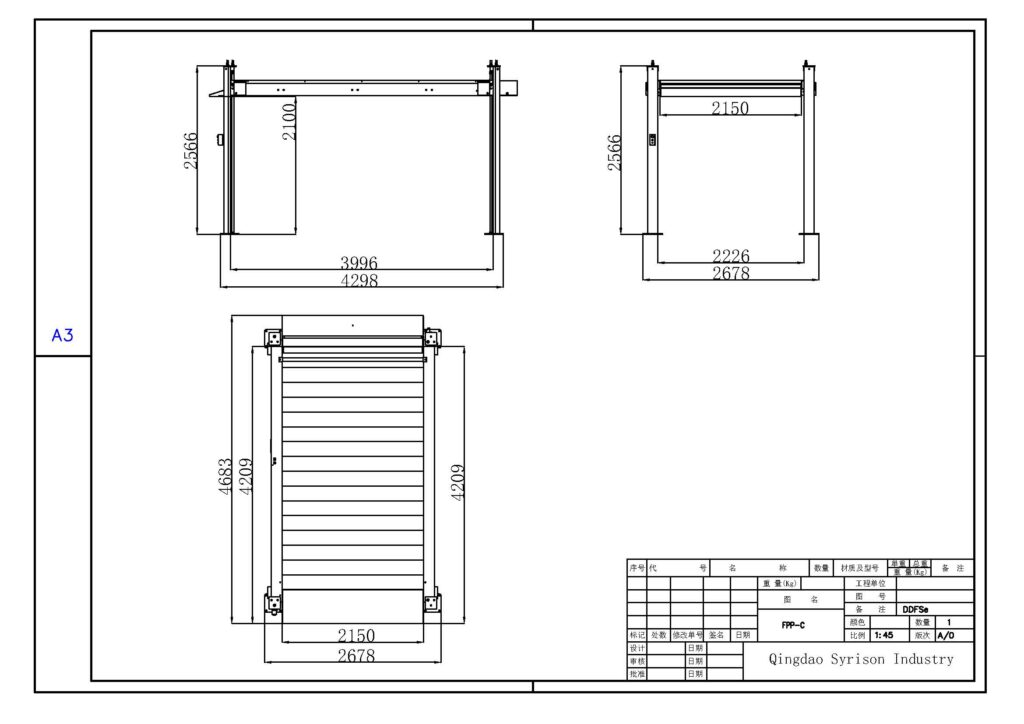

Size Drawing
Data Sheet
| Name | FPP-C |
| Size | 5000*1950*2000 mm |
| Weight | ≤3000 kg |
| Voltage | 220 V, 50 Hz, 1 Ph / 380 V, 50 Hz, 3 Ph (customized for clients) |
| Control | AC24 V |
| Up Speed | 1.7 m/min |
| Down Speed | 1.9 m/min |
| Dimension | 4699*2678*2550 mm (customized for clients) |
| Whole Weight | 1200 kg |
| Lifting Height | 2100 mm |
| Drive Mode | Hydraulic and chain drive and keep balance |
| Motor Power | 2.2 kW |
| Package Size | 4200*1000*700 mm |
| Package Weight | 1100 kg |
Video
Engineering Design & Application Details of FPP-C Series
Full Platform Design for Maximum Vehicle Support
The defining feature of the FPP-C Series is its full-width steel platform. Unlike conventional four-post parking lifts with separated runways, the continuous platform provides complete support for the entire vehicle, making parking easier and more comfortable.
This design is particularly beneficial for luxury vehicles, sports cars, electric vehicles, vehicles with narrow or wide track widths, and cars with special tire configurations. It also reduces driver alignment requirements during parking.
Hydraulic Cylinder & Chain Synchronized Drive
The FPP-C Series utilizes hydraulic cylinders combined with synchronized lifting chains to ensure smooth, stable, and balanced platform movement.
Compared with mechanical-only lifting systems, this hydraulic design offers several advantages:
- Smooth and quiet lifting operation
- Excellent lifting stability
- Even load distribution
- Low vibration during operation
- Reliable long-term performance
- Easy maintenance
The system is engineered for frequent daily use in both residential and commercial parking environments.
Heavy-Duty Four-Post Structure
The reinforced four-post steel frame provides exceptional rigidity and structural stability throughout the lifting cycle.
Compared with two-post parking lifts, the four-post design offers:
- Higher structural strength
- Better load distribution
- Reduced platform deflection
- Increased operational stability
- Longer service life under continuous operation
This robust construction makes the FPP-C Series suitable for long-term vehicle storage as well as daily parking applications.
Comprehensive Safety Protection
Safety is integrated into every aspect of the FPP-C Series. Multiple independent protection systems work together to ensure reliable operation.
Standard safety features include:
- Mechanical anti-fall safety locks
- Hydraulic overload protection
- Chain synchronization system
- Upper and lower travel limit switches
- Emergency stop button
- 24V low-voltage electrical control
- Heavy-duty steel structural frame
These safety systems provide dependable vehicle protection throughout every lifting and lowering cycle.
Flexible Customization for Different Projects
Every parking project has unique requirements. The FPP-C Series can be customized to match different site conditions and vehicle specifications.
Available customization options include:
- Platform dimensions
- Lifting height
- Rated lifting capacity
- Power supply (100–480V, 1 or 3 Phase, 50/60Hz)
- Powder-coated or hot-dip galvanized finish
- Indoor or outdoor installation
- Equipment color
- Control system options
Our engineering team provides CAD layout drawings, foundation recommendations, and technical consultation to ensure every parking lift is optimized for the project before production begins.
Frequently Asked Questions (FAQ)
Q1: What is the FPP-C Full Platform Four Post Parking Lift?
The FPP-C Series is a hydraulic four-post parking lift featuring a full-width steel platform that allows two vehicles to be parked vertically within a single parking space. It is designed for residential garages, vehicle storage, car dealerships, commercial parking facilities, and luxury vehicle collections.
Q2: What is the difference between the FPP-C and a standard four-post parking lift?
The main difference is the parking platform.
A standard four-post parking lift uses two separate runways, while the FPP-C Series features a continuous full platform with integrated filler plates, providing complete vehicle support across the entire platform.
This design offers:
- Easier vehicle positioning
- Better support for different wheelbases
- Improved stability for luxury and performance vehicles
- More convenient daily parking
- Enhanced appearance for vehicle display applications
Q3: What types of vehicles can the FPP-C accommodate?
The FPP-C Series supports up to 3,000 kg and is suitable for:
- Passenger cars
- SUVs
- Pickup trucks
- Electric vehicles
- Sports cars
- Luxury vehicles
- Light commercial vehicles
within the rated platform dimensions.
Q4: Does the FPP-C require a pit?
No. The FPP-C Series is designed for surface-mounted installation on a reinforced concrete floor without requiring a pit, reducing construction costs and simplifying installation.
Q5: Can the FPP-C be used for daily parking?
Yes. The hydraulic lifting system, reinforced four-post structure, and full-platform design make the FPP-C suitable for both daily parking and long-term vehicle storage.
Q6: What safety features are included?
The FPP-C Series includes:
- Mechanical anti-fall safety locks
- Hydraulic overload protection
- Chain synchronization system
- Upper and lower limit switches
- Emergency stop button
- 24V low-voltage electrical control
- Reinforced heavy-duty steel structure
These systems ensure safe and reliable operation throughout every lifting cycle.
Q7: Can the FPP-C be customized?
Yes. We offer customization for:
- Platform dimensions
- Lifting height
- Rated capacity
- Power supply
- Equipment color
- Surface treatment
- Control system
- Indoor or outdoor installation
Our engineering team also provides complimentary CAD layout drawings for project planning.
Q8: Is the FPP-C suitable for outdoor installation?
Yes. Optional hot-dip galvanized treatment and enhanced anti-corrosion protection are available for outdoor applications and harsh environments.
Q9: Why choose a full-platform parking lift?
Compared with traditional runway-type parking lifts, a full-platform design provides greater versatility, easier parking, improved vehicle support, and a cleaner appearance. It is especially suitable for luxury garages, vehicle collections, showrooms, and projects where convenience and aesthetics are priorities.
Q10: What technical support do you provide?
Our engineering team provides comprehensive support, including:
- CAD layout drawings
- Foundation recommendations
- Installation manuals
- Remote technical assistance
- Spare parts supply
- Long-term after-sales service
to ensure successful installation and reliable long-term operation.
