TPU Rear Cantilever Pit Parking Lift for Luxury Residential Garages
Product Introduction
The TPU Series Rear Cantilever Pit Parking Lift is a premium underground parking solution designed for luxury residential garages, villas, and projects requiring maximum parking convenience with a clean and open appearance.
Featuring a rear-mounted cantilever lifting structure, the main support posts and hydraulic system are positioned at the rear side of the pit, leaving the front parking area completely unobstructed.
This unique design allows vehicles to enter and exit freely without interference from front columns, providing improved maneuverability and a more elegant parking environment.
The TPU Series enables two vehicles to be stored vertically within one parking space, with one vehicle positioned inside the pit and another vehicle stored on the upper platform.
Combining a compact pit installation design, reliable hydraulic lifting system, and reinforced steel structure, the TPU Series provides a practical and high-end parking solution for residential and commercial applications with limited space.
Main Features & Advantages
Open Front Design
The TPU Series features a completely open front parking area without front columns.
This design provides:
- Easier vehicle access
- Better driving visibility
- More comfortable parking experience
- Improved garage space utilization
It is especially suitable for luxury residential garages where appearance and convenience are important.
Rear Cantilever Structure
Unlike traditional two-post parking lifts, the TPU Series places the main support structure at the rear of the pit.
The rear cantilever configuration maximizes usable front space while maintaining stable vehicle support during lifting and parking.
This structure is ideal for applications requiring unobstructed vehicle access and a clean garage layout.
Hydraulic Lifting System
The TPU Series is powered by a reliable hydraulic drive system that provides:
- Smooth lifting and lowering
- Stable platform movement
- Low operating noise
- Long service life
The hydraulic system is designed for reliable daily operation with minimal maintenance requirements.
Pit-Type Installation Design
The lower vehicle is stored inside a prepared concrete pit, allowing the upper platform to remain close to floor level when lowered.
The pit installation provides:
- Reduced ceiling height requirements
- Better integration with building structures
- Cleaner garage appearance
- Improved vehicle accessibility
Space-Saving Vertical Parking
By stacking two vehicles vertically within one parking bay, the TPU Series effectively doubles parking capacity without increasing the building footprint.
It is an ideal solution for:
- Luxury villas
- Private garages
- Residential developments
- Limited-space parking projects
Strong and Durable Construction
Manufactured with high-strength steel components, the TPU Series provides reliable structural stability and long-term durability.
The standard powder-coated finish offers excellent corrosion resistance, while optional surface treatments can be provided according to installation conditions.
Typical Applications
The TPU Series Rear Cantilever Pit Parking Lift is designed for projects where parking convenience, space utilization, and garage appearance are equally important.
Typical applications include:
Luxury Residential Garages and Villas
The open-front cantilever structure provides a premium parking experience for private villas and high-end residential properties.
The clean design allows vehicles to enter and exit easily while maintaining an organized and elegant garage environment.
Residential Buildings and Apartments
The TPU Series helps increase parking capacity in residential developments where available parking space is limited.
Its underground pit installation allows better integration with existing building layouts.
Private Vehicle Storage Areas
For vehicle collectors, luxury car owners, and private storage facilities, the TPU Series provides a secure and space-efficient solution for storing multiple vehicles.
The open design improves accessibility and daily convenience.
Small Commercial Parking Projects
The TPU Series can also be applied in:
- Boutique hotels
- Office buildings
- Showrooms
- Small commercial parking facilities
It provides additional parking capacity without requiring large structural modifications.
Safety Design Concept
Safety and structural reliability are fundamental considerations in the design of the TPU Series Rear Cantilever Pit Parking Lift.
The system combines mechanical protection, hydraulic safety, and electrical control systems to ensure stable and secure operation.
Mechanical Safety Lock System
The TPU Series is equipped with mechanical safety locks that securely support the platform at parking positions.
These locks provide additional protection by preventing unintended platform movement.
Hydraulic Safety Protection
The hydraulic system includes safety valves to maintain stable lifting performance and improve operational reliability.
The system is designed to provide controlled movement during lifting and lowering.
Electrical Safety Control
The 24V safety control system includes:
✔ Limit switches
✔ Emergency stop function
✔ Safety control circuit
These functions ensure accurate operation and enhance user protection.
Stable Rear Cantilever Structure
The reinforced rear cantilever structure is engineered to maintain balanced load support during operation.
The rear-mounted design provides a clear front area while maintaining structural stability for vehicle storage.
Installation & Site Requirements
The TPU Series requires professional installation according to project conditions.
Main installation requirements include:
✔ Concrete pit construction according to technical drawings
✔ Reinforced and level foundation
✔ Sufficient pit depth and ceiling clearance
✔ Suitable drainage conditions when required
✔ Power supply according to local electrical standards
Before production, our engineering team provides:
- Installation drawings
- Pit dimensions
- Technical specifications
- Layout recommendations
Proper site preparation ensures safe installation, reliable operation, and long service life.
Why Choose TPU Rear Cantilever Pit Parking Lift
Premium Open Garage Design
The rear cantilever structure removes front obstacles and creates a cleaner, more attractive parking environment.
Maximum Space Utilization
The TPU Series increases parking capacity by using vertical space without requiring additional land area.
Better Vehicle Accessibility
The open-front design provides easier vehicle entry and exit compared with traditional two-post pit parking lifts.
Reliable Hydraulic Performance
The proven hydraulic lifting system ensures smooth operation, low noise, and dependable daily performance.
Flexible Customization
The TPU Series can be customized according to project requirements, including:
- Platform dimensions
- Pit depth
- Lifting height
- Vehicle capacity
- Control system
- Surface treatment
- Equipment color
Professional Engineering Support
We provide complete project support including:
- Parking layout design
- CAD drawings
- Installation guidance
- Operation manuals
- Spare parts supply
- Technical assistance
Looking for a Premium Underground Parking Solution?
Provide your project information, including:
- Garage dimensions
- Pit depth
- Ceiling height
- Vehicle type and size
- Required parking capacity
Our engineering team will provide:
✔ Customized TPU rear cantilever parking solution
✔ Detailed technical drawings
✔ Professional configuration recommendation
✔ Competitive quotation
👉 Contact us today to get your customized Rear Cantilever Pit Parking Lift solution.

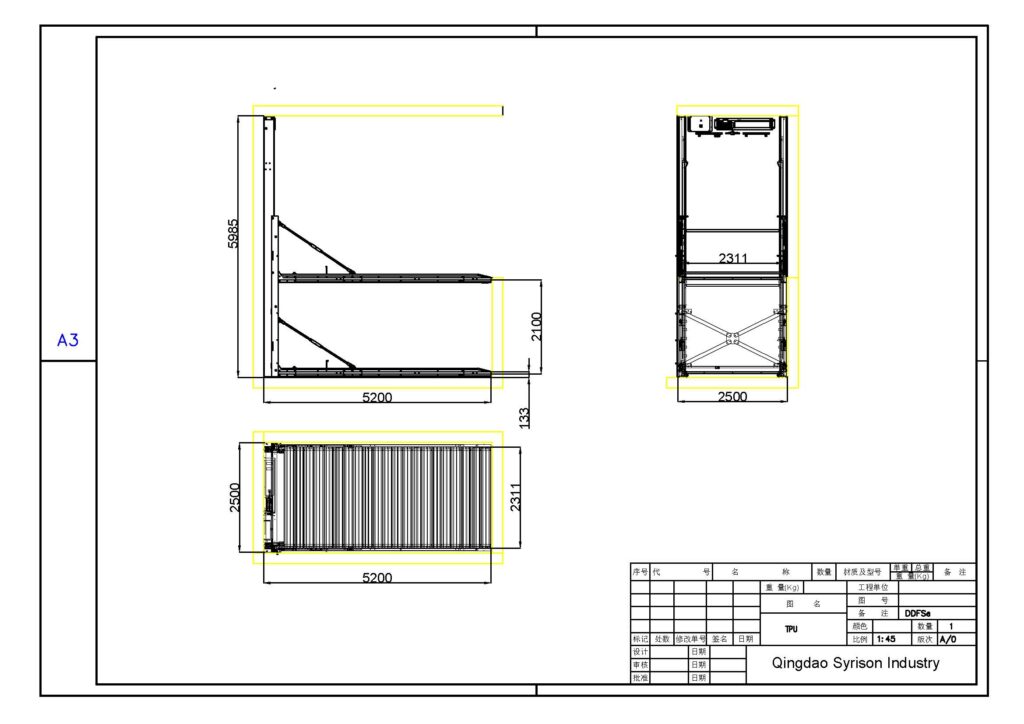

Size Drawing：
Data Sheet：
| Model | TPU |
| Vehicles per unit | 2 |
| Lifting capacity | 2000kg |
| Pit depth | 1800mm-2200mm |
| Usable width | 2400mm-2600mm |
| Available car height | 1700mm |
| Available voltage of power supply | 200V-480V, 3 Phase, 50/60Hz |
| Operation mode | Key switch |
| Operation voltage | 24V |
| Finishing | Powdering coating |
Engineering Design & Application Details of TPU Series
Rear Cantilever Pit Parking Lift
The TPU Series is engineered for premium residential and commercial projects that require a combination of parking efficiency, architectural integration, and convenient vehicle access.
Compared with conventional two-post pit parking lifts, the TPU Series adopts a rear cantilever structure that relocates the main support system to the rear side of the pit.
This design creates a completely open front area, improving vehicle accessibility while maintaining stable structural support.
Rear Cantilever Structural Design
The key engineering advantage of the TPU Series is its rear-mounted cantilever configuration.
By positioning the lifting columns and hydraulic components at the rear:
- Front driving space remains completely open
- Vehicle entry and exit become easier
- Garage appearance becomes cleaner
- Parking operation becomes more comfortable
This structure is especially suitable for luxury residential garages where both functionality and visual appearance are important.
Optimized Underground Installation
The TPU Series uses a pit-type installation method, allowing the lower vehicle to be stored below floor level.
The underground configuration provides several benefits:
- Lower visual impact after installation
- Reduced ceiling height requirement
- Better integration with residential architecture
- Improved garage space utilization
The pit dimensions can be customized according to vehicle size, lifting height, and project conditions.
Hydraulic System Engineering
The TPU Series uses a reliable hydraulic lifting system designed for smooth and stable operation.
The hydraulic system provides:
- Controlled lifting and lowering speed
- Low operating noise
- Stable platform movement
- Long-term operational reliability
Hydraulic components are selected according to load requirements and application environment to ensure dependable performance.
Flexible Project Customization
The TPU Series can be customized according to different architectural requirements.
Available customization options include:
- Platform width and length
- Pit depth
- Vehicle height clearance
- Lifting capacity
- Control method
- Power supply
- Surface treatment
Our engineering team can provide customized CAD drawings and technical recommendations before production.
Frequently Asked Questions (FAQ)
Q1: What Is the TPU Rear Cantilever Pit Parking Lift Used For?
The TPU Series is designed to increase parking capacity by vertically stacking two vehicles within one parking space.
It is especially suitable for luxury residential garages, villas, underground parking areas, and projects where a clean appearance and easy vehicle access are required.
Q2: What Makes the TPU Different from a Standard Two Post Pit Parking Lift?
The main difference is the rear cantilever structure.
Unlike traditional two-post pit parking lifts with front support structures, the TPU Series places the main lifting structure at the rear of the pit, leaving the front area completely open.
This provides easier vehicle access and a more premium garage layout.
Q3: How Many Vehicles Can the TPU Series Park?
The TPU Series is designed to store two vehicles within one parking bay.
One vehicle is positioned inside the underground pit, while another vehicle is stored on the upper platform.
Q4: What Types of Vehicles Can the TPU Parking Lift Accommodate?
The TPU Series is suitable for standard passenger vehicles, including:
✔ Sedans
✔ SUVs
✔ Luxury passenger vehicles
The final platform dimensions and load capacity can be customized according to vehicle specifications.
Q5: Does the TPU Parking Lift Require a Pit?
Yes.
The TPU Series requires a concrete pit according to the engineering drawings.
Our technical team provides pit dimensions, foundation requirements, and installation guidance before shipment.
Q6: What Safety Protection Systems Are Included?
The TPU Series includes multiple safety protection systems:
✔ Mechanical safety locks
✔ Hydraulic safety valves
✔ Limit switches
✔ Emergency stop function
✔ Anti-fall protection system
✔ 24V safety control circuit
These systems ensure stable and secure operation during vehicle lifting and parking.
Q7: Can the TPU Platform Size and Configuration Be Customized?
Yes.
Customization options include:
- Platform dimensions
- Pit depth
- Lifting height
- Rated capacity
- Control system
- Surface treatment
- Equipment color
Our engineering team can provide CAD layout support based on project requirements.
Q8: Is the TPU Suitable for Luxury Residential Projects?
Yes.
The TPU Series is particularly suitable for:
- Luxury villas
- Private collector garages
- High-end residential developments
- Premium underground parking areas
Its open-front design provides a better user experience compared with traditional parking lifts.
Q9: Can the TPU Be Installed in Existing Garages?
The TPU Series can be considered for retrofit projects if sufficient structural conditions and pit installation space are available.
Our engineering team will evaluate:
- Existing floor conditions
- Available pit space
- Ceiling height
- Vehicle requirements
before recommending the appropriate solution.
Q10: What Technical Support Do You Provide After Purchase?
We provide complete technical support including:
✔ Project consultation
✔ CAD layout drawings
✔ Foundation and pit drawings
✔ Installation guidance
✔ Operation manuals
✔ Spare parts supply
✔ Remote technical support
✔ Long-term after-sales service
Our engineering team supports customers from initial design through installation and operation.
