UHP Underground Hydraulic Parking Lift for Hidden Pit Parking
Product Introduction
The UHP Series Underground Hydraulic Parking Lift is a premium pit-type parking solution designed to maximize parking capacity while keeping vehicles completely hidden below ground when not in use.
Unlike conventional above-ground parking lifts, the UHP Series utilizes a reinforced hydraulic cylinder combined with a synchronized wire rope lifting system, allowing the parking platform to move smoothly and quietly between underground and ground level. When fully lowered, the platform sits flush with the surrounding floor, preserving the original appearance of the site while providing additional parking spaces.
Available in both UHP-2 and UHP-3 configurations, the system accommodates two or three vehicles within a compact underground structure. Each platform supports up to 2,500 kg, making it suitable for sedans, SUVs, and luxury passenger vehicles.
Its hidden parking concept, stable hydraulic operation, and customizable design make the UHP Series an ideal solution for luxury villas, private residences, commercial buildings, office developments, hotels, and projects where aesthetics are as important as parking efficiency.
Main Features & Advantages
Hidden Underground Parking
Vehicles remain completely below ground when the platform is lowered, maintaining a clean and unobstructed surface while maximizing available parking space.
Hydraulic Cylinder & Wire Rope Synchronization
The lifting mechanism combines heavy-duty hydraulic cylinders with synchronized steel wire ropes to provide:
- Smooth lifting
- Stable platform movement
- Accurate positioning
- Low operating noise
- Reliable long-term performance
Multiple Parking Configurations
The UHP Series is available in:
- UHP-2 (Two Vehicles)
- UHP-3 (Three Vehicles)
Different layouts can be customized according to:
- Site dimensions
- Pit depth
- Parking quantity
- Building structure
High Load Capacity
Each parking platform supports up to 2,500 kg, allowing the system to accommodate:
- Sedans
- SUVs
- Luxury vehicles
- Electric vehicles
Flush Ground Design
When fully lowered, the platform remains level with the surrounding floor, allowing normal pedestrian and vehicle traffic while keeping the parking system virtually invisible.
Reinforced Four-Post Structure
The heavy-duty four-post steel frame provides excellent rigidity, balanced load distribution, and long service life under frequent daily operation.
Quiet & Comfortable Operation
Compared with mechanical chain-driven systems, the hydraulic lifting system provides quieter and smoother operation, making it especially suitable for residential environments.
Typical Applications
The UHP Underground Hydraulic Parking Lift is designed for projects that require both high parking efficiency and an unobtrusive architectural appearance.
Its hidden underground design makes it particularly suitable for premium residential and commercial developments.
Luxury Villas & Private Homes
The flush-ground platform keeps the driveway clean and visually attractive while providing additional hidden parking spaces.
It is an excellent choice for luxury villas, private residences, and custom-built homes where aesthetics are a priority.
High-End Residential Developments
The UHP Series is widely used in:
- Apartment buildings
- Residential communities
- Townhouses
- Condominium projects
It increases parking capacity without affecting the building’s exterior appearance.
Commercial Buildings
Suitable for:
- Office buildings
- Hotels
- Shopping centers
- Business parks
The hidden parking design preserves valuable ground space while improving parking efficiency.
Vehicle Storage Projects
The smooth hydraulic lifting system and heavy-duty platform also make the UHP Series suitable for:
- Luxury vehicle storage
- Classic car collections
- Private garages
- Automotive display projects
Safety Design Concept
Safety is integrated into every aspect of the UHP Underground Hydraulic Parking Lift.
The combination of hydraulic lifting technology and multiple mechanical safety devices ensures reliable performance throughout every lifting cycle.
Mechanical Safety Locks
Each platform is equipped with mechanical safety locks that automatically secure the platform during operation, preventing unintended movement.
Hydraulic Safety Protection
The hydraulic system incorporates safety valves that maintain controlled lifting and lowering while protecting against unexpected hydraulic pressure loss.
Wire Rope Synchronization System
Multiple synchronized wire ropes ensure balanced platform movement and stable lifting performance throughout the entire travel distance.
Limit Switch Protection
Upper and lower limit switches accurately control platform travel, preventing over-travel and improving operational safety.
Emergency Stop System
The control panel includes an emergency stop function, allowing the operator to stop platform movement immediately whenever necessary.
Reinforced Four-Post Structure
The heavy-duty four-post steel frame provides excellent structural rigidity and evenly distributes vehicle loads, ensuring long-term stability and durability.
Installation & Site Requirements
Proper site preparation is essential for safe and reliable operation.
Concrete Pit Construction
The UHP Series requires a reinforced concrete pit constructed according to our engineering drawings.
Pit dimensions depend on:
- Parking configuration
- Vehicle size
- Platform dimensions
- Site conditions
Flush Ground Installation
When the platform is fully lowered, it remains flush with the surrounding floor, allowing normal vehicle and pedestrian traffic without obstruction.
Suitable Installation Environment
The system is ideal for:
- Indoor garages
- Underground parking facilities
- Residential developments
- Commercial buildings
For outdoor projects, enhanced anti-corrosion treatment is available upon request.
Electrical Requirements
The power supply can be customized to local standards:
- 100V–480V
- Single-phase or three-phase
- 50/60Hz
Complete Technical Documentation
Before shipment, SYRISON provides:
- CAD layout drawings
- Foundation drawings
- Pit construction drawings
- Electrical diagrams
- Installation manuals
- Engineering support
Why Choose SYRISON UHP Underground Parking Lift?
Professional Engineering Experience
SYRISON has extensive experience designing customized underground parking systems for residential and commercial projects worldwide.
Premium Hydraulic Technology
Compared with conventional mechanical parking systems, the hydraulic cylinder and synchronized wire rope lifting system provides smoother operation, lower noise, and greater user comfort.
Flexible Customization
The UHP Series can be customized according to project requirements, including:
- Platform dimensions
- Pit depth
- Parking levels
- Lifting capacity
- Control system
- Surface treatment
- Equipment color
Elegant Hidden Parking Solution
Unlike above-ground parking lifts, the UHP Series keeps vehicles completely hidden underground, preserving the architectural appearance of the property.
Complete Project Support
We provide:
- Project consultation
- CAD layout design
- Foundation drawings
- Installation guidance
- Remote technical support
- Spare parts supply
- Long-term after-sales service

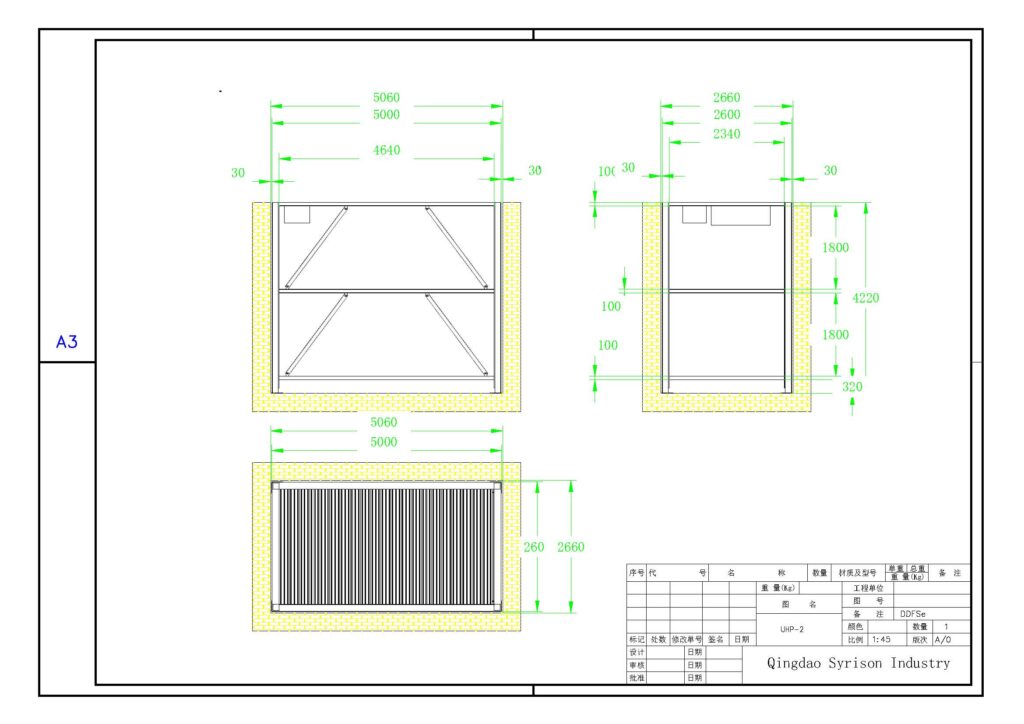

Size Drawing:
Data Sheet:
| Model | UHP-2 | UHP-3 |
|---|---|---|
| Vehicles per unit | 2 | 3 |
| Lifting capacity | 2500kg | 2500kg |
| Available car length | 5000mm | 5000mm |
| Available car width | 1850mm | 1850mm |
| Available car height | 1550mm | 1550mm |
| Motor power | 2.2Kw | 3.7Kw |
| Available voltage of power supply | 100V-480V, 1 or 3 Phase, 50/60Hz | 100V-480V, 1 or 3 Phase, 50/60Hz |
| Operation mode | Button | Button |
| Operation voltage | 24V | 24V |
| Safety lock | Anti-falling lock | Anti-falling lock |
| Lock release | Electric auto release | Electric auto release |
| Rising / descending time | <55s | <55s |
| Finishing | Powdering coating | Powder coating |
Video:
Engineering Design & Application Details of UHP Series
Hidden Underground Parking with Flush Ground Finish
The UHP Series is engineered for projects that require maximum parking capacity while preserving the appearance and functionality of the surrounding area. Installed inside a reinforced concrete pit, the lifting platform becomes flush with the ground when fully lowered, allowing the surface to be used as a normal driveway or parking space.
This hidden parking concept is particularly suitable for luxury villas, high-end residential developments, office buildings, hotels, museums, and commercial projects where aesthetics and space utilization are equally important.
Hydraulic Cylinder & Wire Rope Synchronized Lifting
Unlike motor-and-chain driven systems, the UHP Series utilizes hydraulic cylinders combined with synchronized wire ropes to provide smooth, balanced, and stable lifting performance.
Key advantages include:
- Smooth and quiet hydraulic operation
- Even platform lifting with synchronized movement
- Reduced vibration and mechanical wear
- Precise platform positioning
- Low maintenance and long service life
This drive system delivers reliable performance for both residential and commercial parking applications.
Heavy-Duty Structure with Comprehensive Safety Protection
Safety is integrated into every stage of the lifting process. The UHP Series incorporates multiple independent protection systems to ensure secure vehicle storage and dependable daily operation.
Standard safety features include:
- Mechanical anti-fall safety locks
- Hydraulic overload protection
- Wire rope safety protection
- Upper and lower travel limit switches
- Emergency stop button
- 24V low-voltage electrical control system
- Emergency manual lowering function
- Reinforced heavy-duty steel frame
Every component is designed to provide stable operation and long-term reliability under frequent daily use.
Flexible Configuration for Residential and Commercial Projects
The UHP Series can be customized to meet different architectural layouts and parking requirements.
Available customization options include:
- 2-car or 3-car parking configurations
- Platform dimensions
- Pit depth
- Lifting height
- Platform capacity
- Power supply (100–480V, 1 or 3 Phase, 50/60Hz)
- Powder-coated or hot-dip galvanized finish
- Indoor or outdoor installation
Our engineering team provides CAD layout drawings, foundation drawings, structural recommendations, and technical support to ensure every system is tailored to the project before production begins.
Frequently Asked Questions (FAQ)
Q1: What is the UHP Underground Hydraulic Parking Lift?
The UHP Series is a pit-installed hydraulic parking lift that stores one vehicle underground while another vehicle remains at ground level. When the platform is lowered, the upper platform becomes flush with the surrounding floor, creating a clean and unobstructed parking area.
Q2: What is the difference between the UHP and UMP Series?
Both models are pit parking systems, but they use different lifting technologies.
- UHP Series: Hydraulic cylinder with wire rope synchronization, providing smoother and quieter operation.
- UMP Series: Motor and chain drive system, suitable for projects requiring mechanical transmission.
Our engineers can recommend the most suitable system according to your project requirements.
Q3: Does the UHP require a concrete pit?
Yes. The UHP Series is designed specifically for pit installation. We provide detailed foundation drawings, pit dimensions, and installation guidance before production.
Q4: What types of vehicles can the UHP accommodate?
Each platform supports up to 2,500 kg, making the system suitable for most passenger cars, SUVs, and light commercial vehicles within the specified dimensions.
Q5: Is the UHP suitable for outdoor installation?
Yes. Optional hot-dip galvanizing and enhanced anti-corrosion treatments are available for outdoor environments or coastal areas.
Q6: What safety systems are included?
The UHP Series includes:
- Mechanical safety locks
- Hydraulic overload protection
- Wire rope safety devices
- Limit switches
- Emergency stop
- 24V low-voltage electrical control
- Emergency manual lowering system
Q7: Can the UHP be customized?
Yes. We offer customization for:
- Platform size
- Lifting height
- Pit depth
- Rated capacity
- Electrical system
- Surface treatment
- Equipment color
Custom CAD layouts are also available for every project.
Q8: What projects is the UHP best suited for?
The UHP Series is widely used for:
- Luxury villas
- High-end residential communities
- Apartment buildings
- Commercial office buildings
- Hotels
- Government buildings
- Vehicle storage projects
Q9: What maintenance is required?
Routine maintenance mainly includes hydraulic oil inspection, wire rope inspection, safety lock verification, lubrication of moving components, and periodic electrical checks. The hydraulic system is designed for reliable long-term operation with minimal maintenance.
Q10: What technical support do you provide?
We provide complete engineering support, including:
- CAD layout drawings
- Foundation drawings
- Installation manuals
- Remote installation assistance
- Spare parts supply
- Long-term after-sales service
- Project engineering consultation throughout the equipment lifecycle
