UMP Pit Type Multi-Level Parking Lift for Underground Vehicle Storage
Product Introduction
The UMP Series Pit Type Multi-Level Parking Lift is an efficient underground parking solution designed to maximize vehicle storage capacity by utilizing vertical underground space.
Unlike traditional above-ground parking lifts, the UMP system integrates a concrete pit structure with a motor-driven chain lifting mechanism, allowing vehicles to be stored on multiple levels while maintaining a clean and organized ground appearance.
Available in 2-level and 3-level configurations, the UMP Series can accommodate multiple vehicles within a limited footprint. Each parking platform supports up to 2,500kg, making it suitable for sedans, SUVs, and other passenger vehicles.
With its compact structure, reliable mechanical transmission system, and flexible layout options, the UMP Series is widely used in residential developments, commercial parking facilities, vehicle storage projects, and high-density parking applications where land resources are limited.
Main Features & Advantages
Underground Space Utilization
The pit-type design fully utilizes underground space, allowing more vehicles to be stored without increasing the above-ground footprint.
This solution helps maintain a clean architectural appearance while significantly improving parking capacity.
Multi-Level Parking Configuration
The UMP Series is available with 2-level and 3-level parking configurations.
Depending on project requirements, the system can be customized according to:
- Parking quantity
- Pit depth
- Vehicle dimensions
- Building structure
- Site conditions
High Load Capacity Design
Each parking platform supports up to 2,500kg, providing higher load capability compared with many standard parking lifts.
The system is suitable for:
- Sedans
- SUVs
- Luxury vehicles
- Medium-sized passenger vehicles
Motor and Chain Drive System
The UMP Series uses a reliable motor and chain transmission system to provide stable vertical movement.
Advantages include:
- Smooth lifting operation
- Accurate positioning
- Durable mechanical structure
- Easy maintenance
Space-Efficient Parking Solution
By utilizing underground vertical space, the UMP system allows multiple vehicles to be stored within a limited area.
It is especially suitable for projects where expanding parking areas horizontally is difficult or expensive.
Stable Steel Structure
The reinforced steel structure provides:
- Strong load support
- Long service life
- Reliable daily operation
- Stable vehicle positioning
Typical Applications
The UMP Pit Type Multi-Level Parking Lift is designed for projects requiring higher parking capacity while maintaining efficient use of underground space.
It is widely used in:
Residential Communities
Suitable for villas, apartment buildings, and residential developments where additional parking spaces are required without affecting the appearance of the building.
The underground design helps maintain a clean landscape while increasing parking capacity.
Commercial Buildings
Ideal for:
- Office buildings
- Shopping centers
- Hotels
- Mixed-use developments
The UMP system provides an efficient parking solution for locations with high parking demand and limited land availability.
Vehicle Storage Facilities
The high load capacity and multi-level structure make it suitable for:
- Vehicle storage centers
- Automotive businesses
- Luxury vehicle collections
- Long-term vehicle parking projects
Urban Parking Projects
For cities and areas where land resources are expensive, the UMP Series provides an effective way to increase parking capacity by utilizing underground space.
Safety Design Concept
Safety and reliability are essential in the design of the UMP Pit Type Multi-Level Parking Lift.
The system integrates multiple mechanical and electrical safety protection devices to ensure stable operation throughout every lifting cycle.
Mechanical Anti-Fall Safety Locks
The system is equipped with mechanical locking devices that securely hold each platform at the parking position.
These locks provide additional protection by preventing unintended platform movement.
Reliable Chain Drive Protection
The motor and chain transmission system provides controlled lifting movement with reliable mechanical performance.
The chain structure is designed for long-term operation under daily parking conditions.
Limit Switch Protection
Upper and lower limit switches precisely control the lifting position, preventing over-travel and ensuring safe operation.
Emergency Stop Function
The control system includes emergency stop protection, allowing operators to stop equipment movement immediately when required.
Reinforced Structural Design
The heavy-duty steel structure provides stable support for vehicles at every parking level.
Combined with proper foundation design, the UMP Series ensures reliable performance for residential and commercial applications.
Installation & Site Requirements
The UMP Pit Type Multi-Level Parking Lift requires proper site planning before installation.
Recommended requirements include:
Concrete Pit Construction
A reinforced concrete pit is required according to the technical drawings.
The pit dimensions depend on:
- Number of parking levels
- Vehicle dimensions
- Platform size
- Site conditions
Suitable Installation Environment
The system is suitable for:
- Indoor parking facilities
- Underground garages
- Residential developments
- Commercial buildings
For outdoor applications, additional corrosion protection treatment can be provided according to local climate conditions.
Foundation Requirements
The installation area requires:
- Reinforced concrete foundation
- Level installation surface
- Sufficient structural strength
Power Supply Configuration
The electrical system can be customized according to local standards:
- 100V–480V
- Single phase or three phase
- 50/60Hz
Technical Support Before Installation
Before shipment, we provide:
- Installation drawings
- Foundation requirements
- Technical specifications
- Layout recommendations
Professional installation guidance helps ensure smooth operation and long-term reliability.
Why Choose SYRISON UMP Multi-Level Parking Lift
Professional Parking Equipment Manufacturer
With extensive experience in international parking projects, SYRISON provides reliable mechanical parking solutions for residential, commercial, and industrial applications.
Flexible Project Customization
The UMP Series can be customized according to different project requirements, including:
- Parking levels
- Platform dimensions
- Vehicle capacity
- Pit dimensions
- Control configuration
Reliable Mechanical Design
The mature motor and chain drive system provides stable operation, easy maintenance, and long service life.
High Space Utilization Efficiency
By combining underground installation with multi-level parking, the UMP Series helps customers maximize parking capacity while reducing land usage.
Complete Technical Support
We provide:
- Project consultation
- CAD layout drawings
- Installation guidance
- Operation manuals
- Spare parts support
- After-sales technical assistance

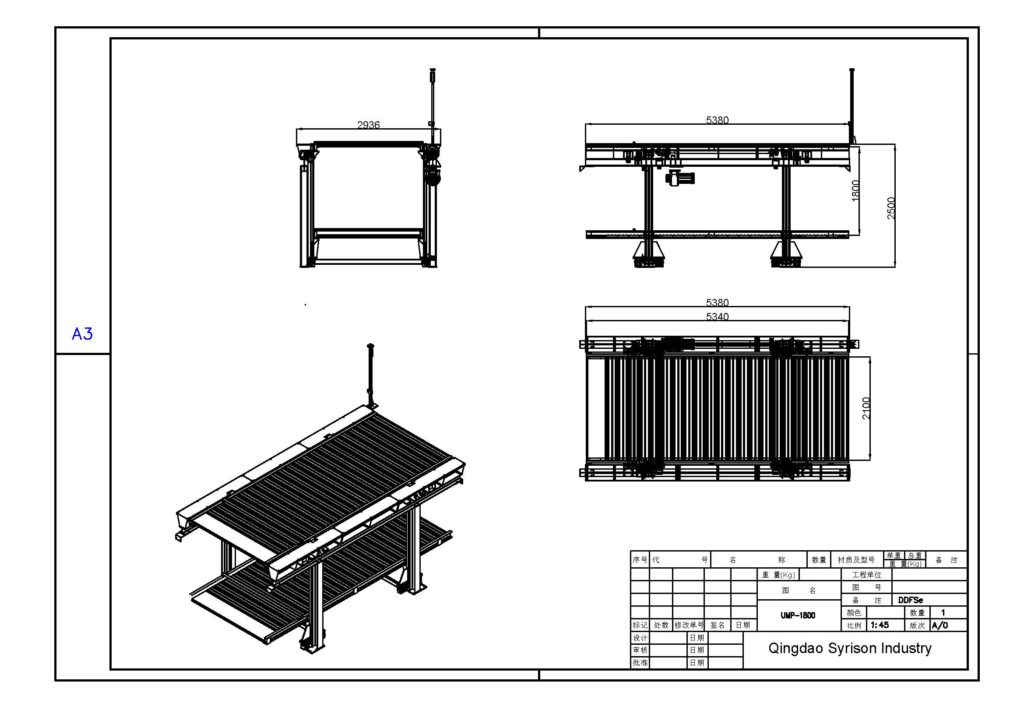

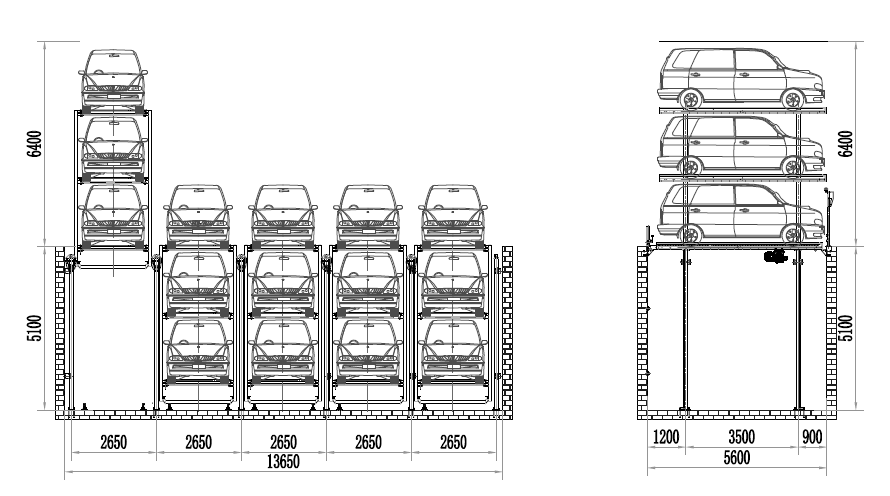

Size Drawing:
Data Sheet:
| Model | UMP-2 | UMP-3 |
|---|---|---|
| Vehicles per unit | 2 | 3 |
| Lifting capacity | 2500kg | 2500kg |
| Available car length | 5000mm | 5000mm |
| Available car width | 1850mm | 1850mm |
| Available car height | 1550mm | 1550mm |
| Motor power | 2.2Kw | 3.7Kw |
| Available voltage of power supply | 100V-480V, 1 or 3 Phase, 50/60Hz | 100V-480V, 1 or 3 Phase, 50/60Hz |
| Operation mode | Button | Button |
| Operation voltage | 24V | 24V |
| Safety lock | Anti-falling lock | Anti-falling lock |
| Lock release | Electric auto release | Electric auto release |
| Rising / descending time | <55s | <55s |
| Finishing | Powdering coating | Powder coating |
Video:
Engineering Design & Application Details of UMP Series
The UMP Series is designed for projects where traditional above-ground parking solutions cannot provide sufficient capacity or where architectural appearance must be preserved.
Compared with standard two-level parking lifts, the pit-type structure allows vehicles to be stored below ground, reducing the visual impact and improving the overall utilization of available space.
Underground Multi-Level Parking Layout
The UMP system can be configured as:
UMP-2
Two-level parking solution:
- One vehicle on the upper level
- One vehicle on the lower level
Suitable for residential garages and small parking projects.
UMP-3
Three-level parking solution:
- Multiple vehicles stored vertically
- Higher parking density within the same footprint
Suitable for commercial and high-demand parking applications.
High Capacity Platform Design
Each platform supports up to 2,500kg, allowing the system to accommodate larger passenger vehicles compared with many conventional parking lifts.
The flat platform design provides stable vehicle support and is suitable for various vehicle types.
Project Design Considerations
Before production, our engineering team evaluates:
- Available parking area
- Pit depth
- Ceiling height
- Vehicle dimensions
- Required parking quantity
- Local electrical conditions
Based on these factors, we provide a customized parking layout and technical solution to ensure the equipment fits the project requirements.
Frequently Asked Questions (FAQ)
Q1: What is the UMP Pit Type Multi-Level Parking Lift?
The UMP Series is an underground mechanical parking system that stores vehicles on multiple levels inside a reinforced concrete pit. It is designed to maximize parking capacity while minimizing the above-ground footprint, making it ideal for residential, commercial, and urban parking projects.
Q2: How many parking levels are available?
The UMP Series is commonly available in 2-level (UMP-2) and 3-level (UMP-3) configurations.
The number of levels can be selected according to:
- Site dimensions
- Pit depth
- Building height
- Required parking capacity
Q3: What types of vehicles can the UMP Series accommodate?
Each parking platform supports up to 2,500 kg, making the system suitable for:
- Sedans
- SUVs
- Luxury vehicles
- Most standard passenger cars
Our engineers will recommend the most suitable configuration based on your vehicle dimensions and project requirements.
Q4: Does the UMP Series require a concrete pit?
Yes.
The UMP Series is specifically designed as a pit-type parking system and requires a reinforced concrete pit constructed according to our engineering drawings.
We provide complete pit construction drawings before production.
Q5: What drive system does the UMP Series use?
The UMP Series adopts a motor and chain drive system, providing:
- Stable lifting performance
- Accurate platform positioning
- Reliable long-term operation
- Convenient maintenance
Q6: What safety protection systems are included?
The UMP Series incorporates multiple safety features, including:
- Mechanical anti-fall safety locks
- Motor and chain protection system
- Upper and lower limit switches
- Emergency stop button
- Reinforced steel structure
- 24V safety control voltage
These features ensure safe and reliable daily operation.
Q7: Can the UMP Series be customized?
Yes.
We provide complete customization services, including:
- Number of parking levels
- Platform dimensions
- Pit dimensions
- Lifting capacity
- Power supply
- Control system
- Surface treatment
- Equipment color
CAD layout drawings are provided before production.
Q8: Can the UMP Series be installed outdoors?
Yes.
For outdoor installations, optional hot-dip galvanized or enhanced anti-corrosion surface treatment is available to improve durability under different environmental conditions.
Q9: Is the UMP Series suitable for residential and commercial projects?
Absolutely.
The UMP Series is widely used in:
- Residential communities
- Apartment buildings
- Villas
- Commercial parking facilities
- Office buildings
- Hotels
- Vehicle storage projects
Q10: What technical support do you provide?
SYRISON provides complete engineering support, including:
- CAD layout drawings
- Foundation drawings
- Pit construction guidance
- Installation manuals
- Remote technical assistance
- Spare parts supply
- Long-term after-sales support
