Case Study: Custom 4-Level Car Stacker Project for PB Group Ltd Vehicle Storage Facility in New Zealand
Project Overview
Destination: Pukekohe, New Zealand
Client Name: PB Group Ltd ( https://www.pbgroup.co.nz/ )
Product Model: Custom 4-Post 4-Level Quad Parking Lift (Model: DFPP – 4T)
Quantity: 8 Units
Total Capacity: 32 Vehicles (4 cars per stack)
Industry: Professional Vehicle Storage & Logistics
Core Challenge: Maximizing vertical space with safe, precise deployment of heavy-duty car parking lift systems to accommodate 32 premium/collector vehicles in a highly restrictive layout, starting with zero on-site physical photography.
About the Client
PB Group Ltd ( https://www.pbgroup.co.nz/ ) specializes in secure vehicle storage and logistics services for private owners, collectors, dealerships, and businesses throughout New Zealand. As storage demand continued to grow at their Pukekohe depot, the company needed an advanced car parking system that would significantly increase capacity while maintaining the elite safety standards required for high-value assets, including luxury sedans, sports cars, and classic collectibles.
The Challenge: High-Density Storage with No Margin for Error
The existing facility had limited indoor floor space but needed to accommodate a much larger fleet. Traditional parking arrangements could not provide the required density, and standard 2-level or 3-level car stacker lift variations would not achieve the desired capacity.
The project demanded a customized car storage lift solution capable of:
Storing 32 premium vehicles safely within the existing building footprint.
Maximizing space with an ultimate 4-level vertical configuration.
Providing long-term operational reliability and smooth vehicle access.
Adding further complexity, the initial planning phase began without detailed on-site installation photographs. Accurate engineering coordination and precise dimensional verification were therefore critical to ensure a successful deployment for this elite vehicle storage facility ( https://www.pbgroup.co.nz/ ).

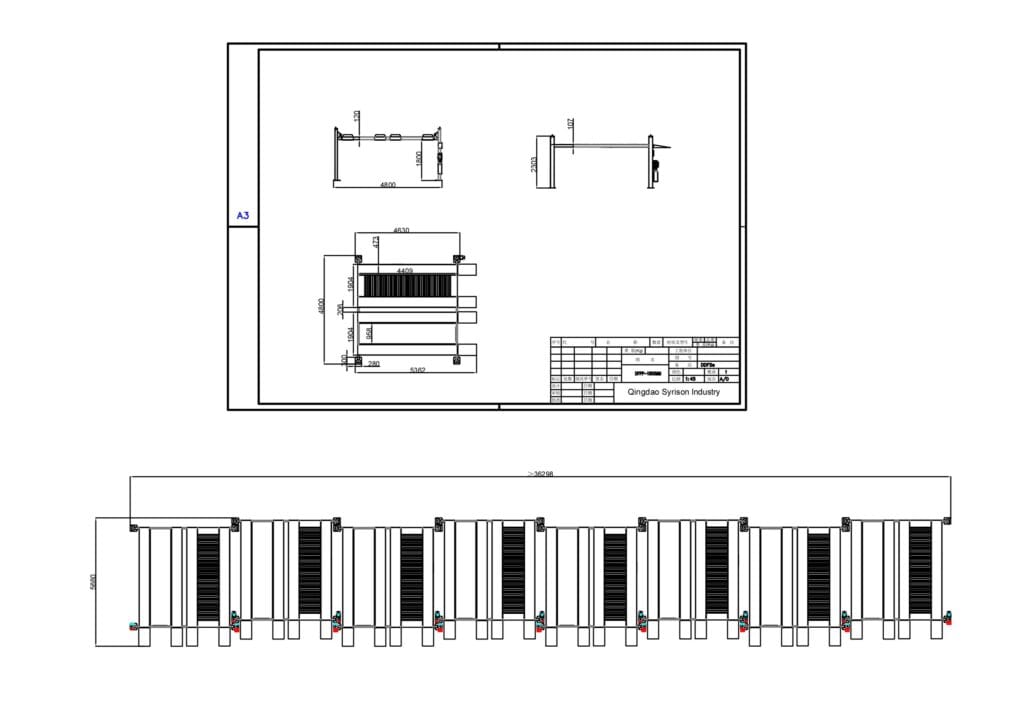

Custom Layout Engineering: The “Staggered Interlocking” Blueprint
Every high-level car platform lift project must prioritize strict mechanical safety over everything else. After reviewing the facility dimensions, our engineering team developed a bespoke spatial layout utilizing eight DFPP-4T 4-level lifts.
Instead of a generic alignment that might cause column interference or choke traffic flow, we customized an “interlocking and staggered” installation blueprint. This layout ensures that despite the extreme density of the overall parking lift system, loading and unloading paths remain optimized, and structural columns do not block vehicle doors.
Heavy-Duty DFPP-4T Features & Engineering Integrity
For a heavy-duty 4 post car storage lift running 4 levels high, structural integrity is non-negotiable. While the market is flooded with inflated ratings, our commitment to engineering honesty ensures that our DFPP carries a guaranteed, fully-tested 4-Ton heavy-duty load capacity.
Key features of this custom 4 post storage lift system include:
True 4-Ton Rated Lifting Capacity: Proven and tested structural stability.
Synchronized Hydraulic Lifting: Smooth, level, and balanced operation across all four platforms.
Multi-Stage Mechanical Locks: Robust safety engagement on every column for long-term parking peace of mind.
Premium High-Tensile Steel Build: Engineered for luxury cars, heavy SUVs, and valuable collector vehicles alike.
Production and Quality Control
Before international shipment, all eight lift units underwent rigorous factory inspection and testing procedures to verify dimensional accuracy, structural integrity, hydraulic pressure stability, and safety system performance. As a factory-direct manufacturer, our production team worked closely with the client throughout the manufacturing process to ensure that all equipment met the project’s exact technical requirements and installation specifications.

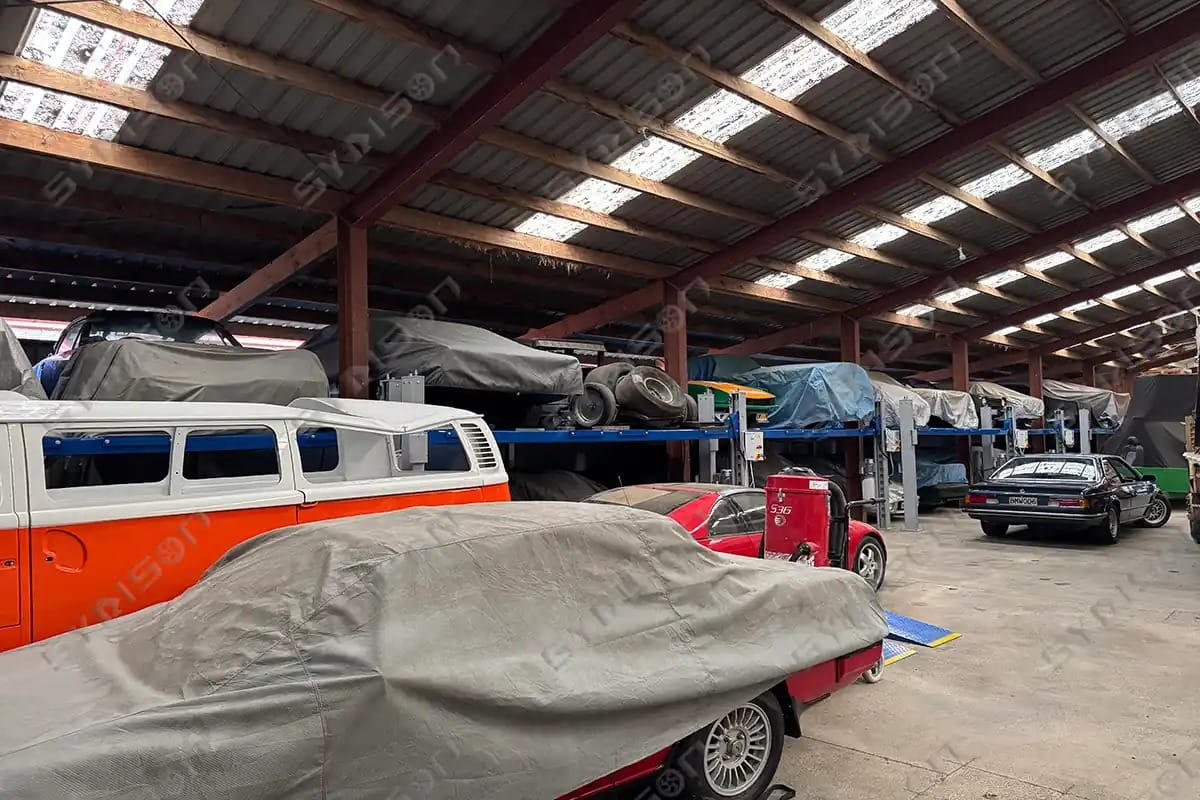

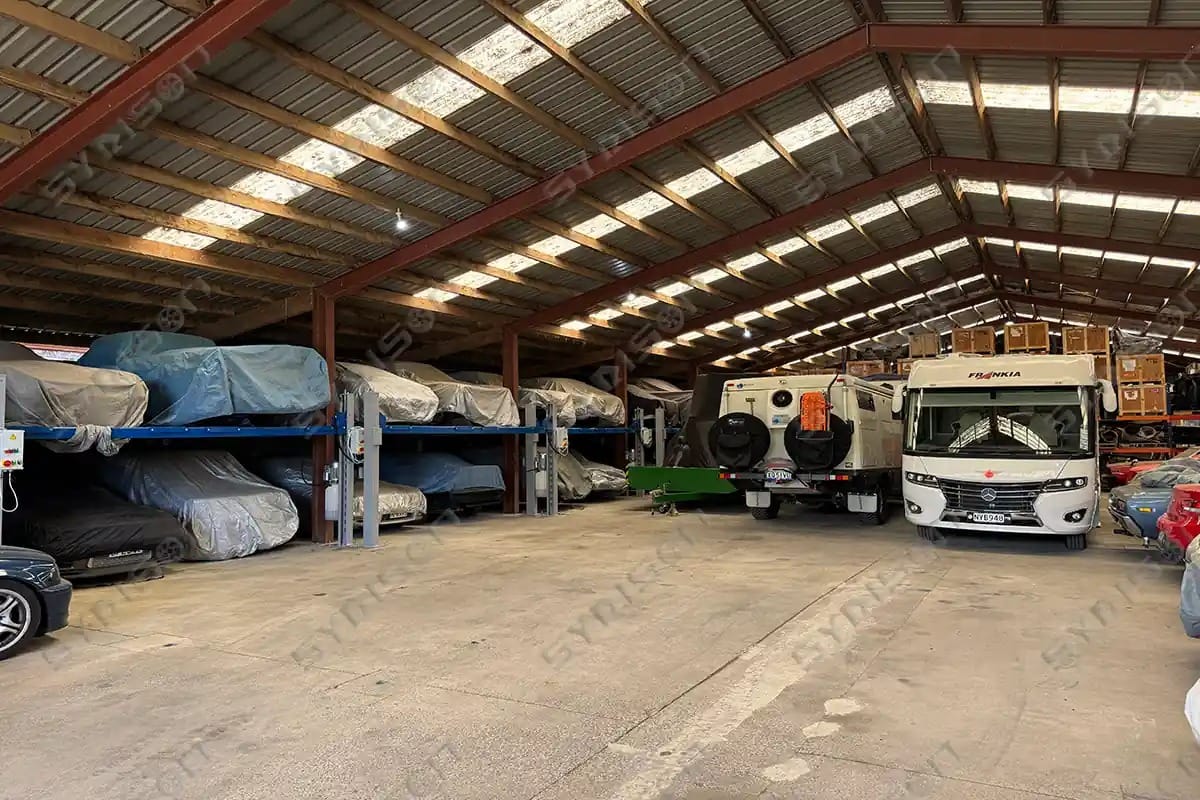

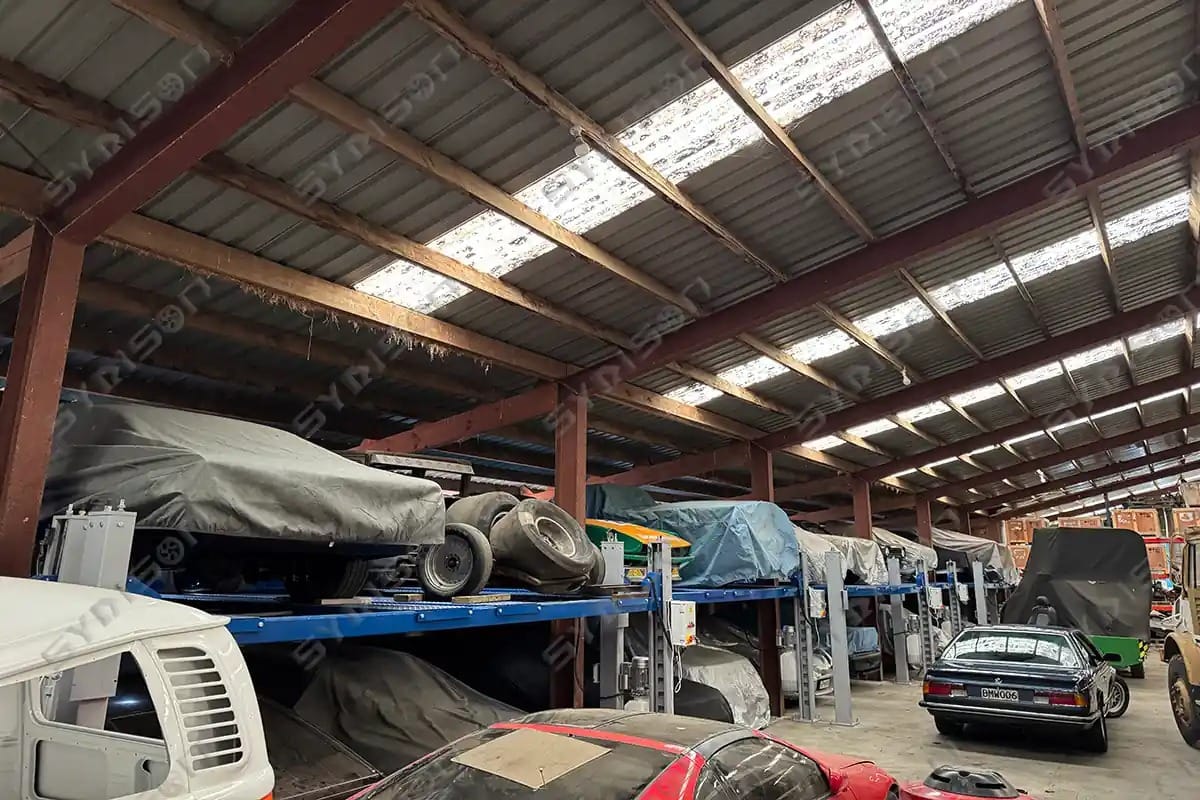

Installation, Deployment & Results
Once delivered to New Zealand, the equipment was installed seamlessly according to the customized engineering blueprint. The staggered lift configuration performed exactly as simulated in our engineering phase, delivering immediate operational benefits:
400% Space Optimization: By expanding vertically rather than horizontally, PB Group Ltd ( https://www.pbgroup.co.nz/ ) boosted its storage capacity by four times compared to conventional ground parking.
Flexible Mixed-Fleet Stacking: The system effortlessly accommodates a wide variety of vehicle profiles, from low-slung supercars to tall luxury SUVs.
Long-Term Operational Reliability: The heavy-duty lift design provides a dependable storage solution for daily commercial operations.
Project Conclusion
This project demonstrates how a customized multi-level car stacker solution can dramatically transform a commercial facility into a high-capacity vehicle storage operation without requiring expensive building expansion.
Whether you manage an automotive dealership, a commercial storage warehouse, a private collection, or a logistics hub, our factory-direct custom design team is ready to deliver tailored car parking solutions to optimize your space.
Looking to maximize your vehicle storage capacity with a reliable car storage lift? Contact our engineering team today for a free CAD layout proposal and customized quote.
